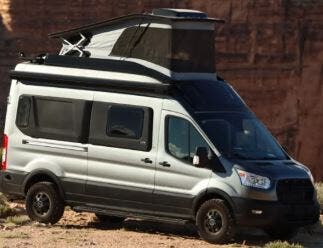

Specs for 2027 Grand Design - Lineage Series VT
Floorplan: LVT2 (Class B)

General

Dimensions

Weights

2027 Grand Design Lineage Series VT RVs for Sale Near You

Capacities

Engine/Transmission

Exterior

Electrical

Features

SOLAR
(2) 180 Watt Merlin Solar Panels (300 Watt Apollo panel with Pop-Top option)

KITCHEN
Thetford 3.18 Cu Ft 12V Drawer Style Refrigerator
Invisacook Hidden Single Burner Induction Cooktop
Prepped for Air Fryer/Convection Microwave Oven
Porcelain countertop
Matte Black pull out Kitchen Faucet
Pop Up Spice Rack
Stainless Steel 15" x 15" x 6" Sink with Cutting Board Cover
Positive locking latches
Dove Tail Drawer Box
Soft-Close drawer slides

UTILITIES
Firefly Integrations® Touch Screen Command Center, Bluetooth® Switches & Smart Phone App (Global)
3,000 Watt Lithionics 51V Inverter
SDG Mini Split 51V AC (20,000 BTU)
Eberspacher/Espar Airtronic gasoline heater
Duoetto Electric water heater
12V Water Pump
12V Heat pads (Fresh and Gray tanks)
Carbon-Monoxide, LP/ Smoke Detectors & Fire Extinguisher
8,448 Watt-Hours 51V Lithionics battery
Prepped for optional 2nd battery including Y harness for external BMS and mounting brackets
30 Amp Electrical Service
Victron Solar Charge Controller
Nomadic Bi Directional 12v - 51v DC to DC converter
Maxx Air Fan
(2) 180 Watt Merlin Solar Panels (300 Watt Apollo panel with Pop-Top option)

FRAME-CHASSIS
Ford Transit Cargo AWD High Roof 148" Wheelbase
GVWR 9,950 lbs. / GCWR 12,600 lbs.
3.5L EcoBoost V6
Transmission: 10-Spd Automatic w/OD & SelectShift
3.73 Limited-Slip Axle Ratio
Ford Connectivity Package (1-Year Included)
Black High-Intensity Discharge (HID) Headlamps
SYNC 4 Includes 12" center display, Bluetooth, dual USB ports,wireless Apple CarPlay and Android Auto compatibility
Dual Alternators (250 Amps Each)
Fixed Rear Cargo Door Glass - Rear-Window Defroster
Keyless Entry Keypad
Adaptive Cruise Control w/Lane Centering. Includes stop and go and predictive speed assist
Side Parking Sensors
Blind Spot Information System w/Cross Traffic Alert
Connected navigation and 360-degree camera
Battery run down protection
SiriusXM with 360L AM/FM/HD/Satellite radio
Cockpit Privacy Shades (Windshield, Driver & Passenger)
Swiveling Driver and Passenger Seat
Ford Co-Pilot360 w/Side Wind Stabilization electronic stability control system with antirollover
Dual AGM Batteries (70 Amp-hr Each)
Heated Driver and Passenger Seats
Front Cup Holders
USB-C Socket
Heavy Duty Trailer Tow Package
Ford Upfitter switches
Custom Recover on Driver and Passenger Seat

EXTERIOR
Van Compass Stage 3 Topo 2.0 Lift (Stage 4 optional)
Luverne driver and passenger running boards
Power rotating front light bar 15,200lm (deleted with pop-top option)
(2) rear pod lights 2,850lm
Polyplastic Double Pane acrylic operable windows
11.5ft Girard Armless Awning with Wind Sensor
Exterior light on underside of running boards and side capsules
Vista Double Pane acrylic panoramic skylight
Custom molded side capsules
Spare Tire Carrier
Quick connect exterior shower
Rear storage deck
Starlink prep included bracket and power cord

CONSTRUCTION
2" Plascore Honeycomb composite floor with bottom radiant barrier
Alpha insulation and 3M Thinsulate
2tec2 Woven Fabric flooring
CNC Routed Wall Panels
Thermoformed ABS dinette and kithentte panels
Welformed Automotive fabric bedroom panels
SharkBite Evo Pex Push2Connect Plumbing System (Max SS braided shut offs)
Soft Touch perforated Ceiling
5,000lbs Tow Hitch w/ 7 way round and 4 way flat plug (removed when selecting Pop-Top option)

BATHROOM
Thetford Cassette toilet with electric flush and 4.7 gal tank
Venting window
Rainfall shower head
Medicine cabinet Mirror with integrated LED lighting
Tambour style roll-away shower doors
30" x 54" enclosed overall size
Built in shower wall storage cubbies

BEDROOM
Under Bed Storage
Expanding Lift Suite drop down bed
LED Reading Lights
USB-C Charging Ports
Phone Holder
Samsung Freestyle Projector
Motorized 50" Projector Screen
Passenger side Bed Base storage doors

INTERIOR
Easy Assist Handle
Lagun Table with two mounting locations
Side facing chaise lounge bench
Vinyl laminated cabinetry
Under Bench pull out drawer
Integrated black out window shades and screens
Multiple charging ports
Pull out hooks

Lineage Series VT Package
Chassis: Ford Transit Trail 350 AWD High Roof 148" WB
Spare Tire Carrier
Standard Power Package
SafeRide RV Roadside Assistance
RVIA Seal

Tuned Falcon Adjustable Rear Shocks
Tuned for precision and performance, these adjustable rear shocks deliver a smooth, responsive ride across varying terrain—offering the perfect balance of rugged capability and refined control for those who demand more from every mile.

Solar Awning (720w)
This innovative solar awning combines shade and sustainability, delivering elegant protection from the elements while harnessing the sun's power to keep your journey energized and efficient.

StarLink Internet
Starlink Internet gives RV owners fast, reliable internet almost anywhere they travel—even in remote areas where cell service doesn't reach. It's perfect for staying connected, working remotely, or streaming on the road.
