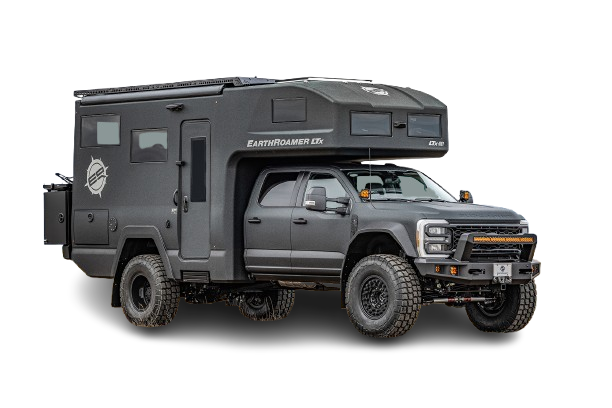

Specs for 2026 EarthRoamer - LTx
Floorplan: Longs Peak (Overland Camper)

General

Dimensions

Weights

2026 EarthRoamer LTx RVs for Sale Near You

Capacities

Engine/Transmission

Exterior

Electrical

Features

Chassis:
Ford F-550 Crew Cab, 4WD, w/6.7L Power Stroke Diesel
Ford Lariat trim package
EarthRoamer Designed rear pivot camper mounting system
Air ride suspension
Heavy duty front and rear stabilizer bars
Heavy duty remote reservoir shocks with dual speed compression adjustability
43” tires on military grade bead-lock rims
2WD low switch
2.5” tow hitch (capacity dependent on options)
2” receivers at rear bumper
Heavy duty aluminum front bumper and steel rear bumper
Front 16,500 pound Warn winch with synthetic rope and wireless winch controller
95-gallon fuel tank system
High output air compressor, air tank, water separator, air horn and 4 air chucks
Power running boards
EarthRoamer Designed composite fender flares
Expanded pass-thru between cab and camper
Tire temperature and pressure monitoring system
Back up/rear view camera integrated into rear view mirror
7 pin trailer connection
EarthRoamer Designed billet aluminum door lock on camper entry door

Exterior:
EarthRoamer Designed monocoque, vacuum infused carbon fiber camper body
Integrated exterior storage compartments with molded carbon fiber doors
Electric awning with LED lighting and automatic high wind retraction
Camper entry door w/ fixed window, integrated shade, and bug screen
Camper entry door and storage compartment doors integrated w/Ford keyless entry system
Automatic electric entry steps
Bumper mounted full size spare tire
Spare tire removal system w/ electric winch, hoist, jack and tools
Locking billet fuel and DEF access doors
X-Guard Body Protection Package on truck and camper
Billet aluminum license plate frames
Front and rear EarthRoamer logo mud flaps
Exterior toilet cassette access door
Grab handle at entry door

Exterior Lighting:
LED tail and brake lights (upper and lower)
LED reverse lights
LED marker lights
LED rear license plate light
40” curved LED light bar integrated into front bull bar
4” round LED fog lights
6” round LED driving lights
Exterior LED lighting with dimmers
LED lighting in rear storage

Interior:
Vaulted ceilings w/ premium soft touch headliner
Dining table and seating that converts to coffee table and additional
sleeping area (dependent on configuration)
Cedar lined closet w/hanging rod and mirror
Under mattress storage with hidden bunk ladder
Stainless Steel Toe Kicks
Digital combination hidden safe
Assist handle to make bunk access easier and safer
Locking pass-thru doors to thermally and acoustically insulate camper from cab
Chilewich Plynyl or CaliVinyl Pro flooring
Premium leather seat covering
Maple hardwood cabinetry with premium finish
Hardwood dovetail drawers (closet storage and galley)
Fully machined metal push button latches throughout
72” x 84” memory foam mattress

Interior Lighting:
Dimmable LED overhead lighting in living space
Dimmable LED task lighting
Dimmable color changing indirect floor and ceiling lighting
Switches for above lighting located at entry door, rear dinette, and both sides of bunk
LED reading lights in bunk

Galley:
Metal or tile backsplash
Deep stainless-steel sink
Faucet with retractable sprayer
Soap dispenser
Black sink accessory cutting board designed to fit into sink
Slide out trash can
Collapsible broom with dustpan
Quartz, granite, or porcelain countertop
Single burner induction or invisacook cooktop
6 cubic foot stainless steel DC electric refrigerator w/2 cubic foot upper freezer (additional 2 cubic foot freezer/fridge optional)
1.6 cubic foot stainless convection microwave
Slide-out pantry w/ adjustable shelving (dependent on options)
Paper towel holder and dish towel bar

Bathroom:
Enclosed bathroom/shower (wet bath)
Teak medicine cabinet with mirror
Teak shower grate
Teak fold down bench seat
Removable shower wand on height adjustable slide bar
Sink with integrated toilet paper holder
5-gallon cassette toilet
Retractable clothesline and towel hooks
Shower toiletries storage
Variable speed exhaust fan

Electrical System:
18 Kw hour lithium-ion battery bank
Auto engine start charging system automatically starts engine when
batteries are low
Four 370-watt solar panels with solar charge controllers – 1,480 watts
Advanced digital control & monitoring network provides circuit
protection and advanced control and monitoring of systems
Inverter system provides a total of 9000-watts inverter power
Shore power charger provides up to 3,150-watts battery charge
Programmable touch screen control panel provides system control and monitoring
Integrated Starlink Satellite Internet
Marine grade electrical components used throughout
Marine grade wiring used throughout
120V AC outlets located at closet, galley, rear seating area and bunk (both sides)
12V DC outlets located at bunk (both sides)
5V DC USB outlets located at rear seating area, media cabinet and bunk (both sides)
15 Amp exterior AC power outlet
30 Amp AC shore power inlet

Heating, Ventilation, AC:
19,500 BTU high efficiency air conditioner with digital thermostat
7,500 BTU diesel air heater with digital thermostat ducted to living area and bathroom
Diesel Hydronic water heater with digital timer and manual over-ride
mode, integrated into Ford coolant system to allow free water heating while driving
Dual pane, flush mounted, fully opening, stained, frameless glass windows with built in shades and bug screens
Double pane glass roof hatch with built in shades and bug screens (provides access to roof)
Thermostatically controlled, variable speed, rain-sensing, reversible fans

Plumbing:
100 gallon insulated fresh water holding tanks
Freeze protect water recirculation system
40 gallon insulated grey water holding tank
Electric fresh and grey tank drain system with remote access
Fresh and grey tank monitoring system
UV and particulate freshwater filtration system
High-capacity water pump with intake screen
Gulper pump for galley sink drain
Diesel Hydronic and electric heated 6-gallon hot water tank
Exterior shower with hot and cold water and winterization valves
Integrated Air pressure water blow-out system for easy winterization

Safety:
Carbon monoxide detector
Smoke detector
Fire extinguisher
Roadside Safety Kit
First Aid Kit

Accessories:
Flashlight mounted on door
Tool bag with select spare parts and tools
Fresh water hose
Grey water hose
Axe and shovel mounted in garage
15-amp exterior AC outlet adapter
30-amp shore power cord and 15 Amp shore power adapter
Soft and hard recovery shackles
