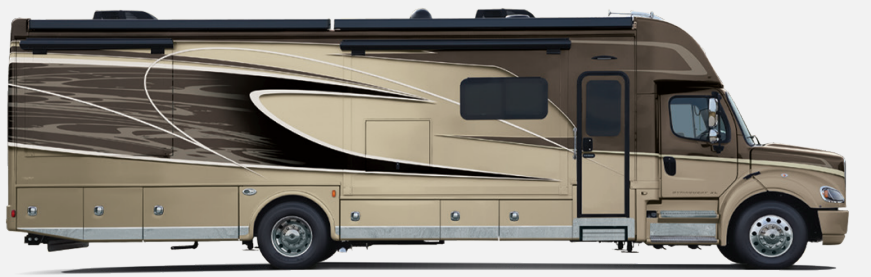

Specs for 2024 Dynamax Corp - Dynaquest XL
Floorplan: 3801TS (Super C)

Dimensions

Weights

Capacities

2024 Dynamax Corp Dynaquest XL RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

CHASSIS:
Freightliner® M2 112 Plus Chassis (33,000-lbs. GVWR / 54,000-lbs. GCWR)
Cummins® L9 Turbo Diesel Engine (450hp / 1,250 lb-ft. of Torque)
Allison® 3200 TRV Six-Speed Automatic Transmission
100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks)
6-Gallon Diesel Exhaust Fluid Tank
Trailer Hitch (20,000 Tow lbs. / 2,000 Tongue lbs.) with 7-Way Round Tow Connection
Weigh Safe® Trailer Hitch Receiver
Active Brake Assist
Brake Controller
C-Brake by Jacobs® with Low/Off/High Braking Dash Switch
Locking Differential
Airliner® 21,000-lb. Rear Suspension
Manual Air Suspension Dump Valve Switch on the Dash
275-Amp Alternator
Quick Disconnect Fitting with Tire Inflation Kit
Air Brakes with 4-Wheel ABS
Equiflo™ Inboard Fuel System (Dual Supply – Dual Return)
Fuel Filter/Water Separator with Primer Pump
Engine Block Heater
Steel-Reinforced, Aluminum Cab
Chrome Grille and Air Intake Grille
Front and Rear Tires: Michelin® XZE2 275/80R22.5 (14 Ply Radials)
Single Front Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
Dual Rear Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
Valve Extensions
Tire Pressure Monitoring System
4.78 Rear Axle Ratio
Daytime Running Lights
LED Headlights
Tinted Door Glass and Wing Windows
Chassis Battery Shut Off Switch in Cab
Leatherette Driver and Passenger Air Ride Seats with Air Lumbar Controls
Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
Kenwood® 10" Touch Screen Dash Infotainment System with AM/FM, Bluetooth®
,Sirius/XM® (tuner and antenna), Apple® CarPlay™ / Android® Auto™ Functionality, and Garmin® RV Navigation
JBL® Premium Cab Sound System - JBL full range/tweeter coaxial speakers, dual voice coil subwoofer, and a high-efficiency, highperforming, 4 channel DSP amplifier, all "Tuned" specifically for the Freightliner M2
12V Accessory Ports
One Valve Parking Brake System with Warning Indicator
Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
Momentary Battery Booster Switch for Connecting Chassis and House Batteries
Marker Lights with Separate Interrupter Switch
Low Air Pressure Light and Buzzer
Adjustable Steering Column
18" Leather-Wrapped Steering Wheel
Hydrographic Woodgrain Cab Accents
Power Remote/Heated Mirrors
Power Windows and Locks
3-Point Seat Belts
Dual Reading Lights
Two (2) Cup Holders in Dash

CONSTRUCTION:
2" Aluminum-Framed, Laminated Sidewalls with High-Density Block Foam Insulation
Composite Exterior Fiberglass
Aluminum-Framed Floor
Aluminum-Framed Roof Trusses
Crowned, One-Piece Fiberglass Roof
Foil-Lined Ductwork Throughout
Fiberglass Rear Cap and Front Wing Panels
Automatic, 4-Point Hydraulic Leveling Jacks
Dual-Pane, Dark-Tinted, Frameless Windows
Seamless Rotocast Storage Compartments with LED Lighting
Side-Hinged, Locking Aluminum Exterior Storage Doors with Chrome Handles

EXTERIOR:
Custom Full Body Paint Package with Scheme-Matching Slideout Sides
Premium Cut and Buffed Paint Finish
Front-End Diamond Shield® Paint Protection
Dual Roof-Mounted, Integrated Armless Patio Awnings with LED Lighting and Wind Sensors
Aluminum-Wrapped Slideout Toppers
LED Patio Light
Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
Keyless Entry Touch Pad at Entry Door
Lighted Acrylic Entry Grab Handle
Power Entry Steps with Upgraded SeaDek® Step Treads and Polished Stainless Steel Step Treads
Remote Locking System for Exterior Storage Doors
Portable Truma® Cooler (Fridge/Freezer) on Sliding Tray in Exterior Storage Bay
Exterior Wall-Mounted Entertainment Center with 32" LED Smart TV
Front and Rear LED Clearance and Marker Lighting
Rear LED Docking Lights
Dual Chrome Roof-Mounted Air Horns
Molded Fiberglass Cab Step Covers with Polished Stainless Steel Step Treads
Polished Stainless Accents on Lower Skirt
Polished Stainless Rear Tail Light Accents
Rear "DYNAMAX" Rock Guard
Chrome Exhaust Tip

INTERIOR:
Luxury Vinyl Tile with Soft Silence Accoustical Pad Throughout with Non-Skid Rubber Steps
Deluxe Carpet with Pad in Select Living Area Slide Rooms
Soft-Touch Padded Vinyl Ceiling
LED Recessed Ceiling Lights
Sprung, Residential Style Dinette Seats with Lift Up Storage
Tri-Fold Sofa
Coordinating Fabric Window Treatments
Day/Night Roller Shades
Hardwood Raised Panel Cabinetry with Five-Piece Drawer Fronts
Hardwood Shaker-Style Passage Doors
Full Extension, Soft-Closing Drawer Guides (where applicable)
Dovetail Joints on Cabinet Drawers
Hidden Hinges
Entertainment Center with 50" LED Smart TV and Fireplace
Bose® Sound System
Thermal, Reflective Front Privacy Shades
USB Charging Ports

KITCHEN:
24 cu. ft. Residential Refrigerator with Ice Maker
Induction Range
Convection Microwave Oven
Solid Surface Countertops with LED Edge Lighting and Backsplash
Stainless Steel Sink with Solid Surface Covers
Residential Stainless Steel Spring Gooseneck Faucet
Pantry
Overhead Cabinet Accent Lighting
Under-Cabinet Lighting
MaxxAir® Power Vent with Built-In Rain Cover

BEDROOM:
King Bed (71" x 78") with Gel-Infused Memory
Foam Mattress
Deluxe Padded Headboard
Designer Bedding Package
32" LED Smart TV
Bose® Sound Bar
Cedar-Lined Wardrobe
Nightstands with Solid Surface Countertops
LED Reading Lights
USB Charging Ports

BATHROOM:
Solid Surface Shower
Teak-Fold Seat in Shower
Shower Skylight
Glass Shower Door
Oxygenics Body Spa® RV Shower Head
Solid Surface Countertop with LED Edge Lighting and Backsplash
Under-Mount Sink with Residential Brushed Nickel Faucet
Porcelain Foot-Flush Toilet
MaxxAir® Power Vent with Built-In Rain Cover

UTILITIES:
Two (2) 12V Group 8D AGM Deep-Cycle, Maintenance-Free Batteries
Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
Battery Disconnect
50-Amp Service with Power Cord Reel
3,000W Hybrid Pure Sine Wave Inverter/Charger (3,500 Peak Watts)
8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
Automatic Generator Start
Solar Panel - Single 200 Watt with 30 Amp Controller
Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Pumps
Aqua-Hot® 450D Diesel System with Engine Pre-Heat
Stackable Washer/Dryer Prep
Dyson® Rechargeable Vacuum with Attachments
Water Filtration System
Exterior Shower in Service Bay
Power Water Hose Reel in Service Bay
Exterior GFCI Receptacle
Winegard® AIR 360+™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
4x4 HDMI Matrix
Cable TV/Satellite Hookup in Service Bay
Thetford® Sani-Con Turbo Macerator System
Black Tank Flush
SureLevel® Tank Level Monitoring System
Utility Compartment Heated by Aqua-Hot® System
Enclosed Holding Tanks Heated by Aqua-Hot® System
Upgraded 12V On-Demand Water Pump (4 gallons per minute)
Carbon-Monoxide, LP, and Smoke Detectors
Fire Extinguisher
Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
