Specs for 2018 Forest River - Legacy

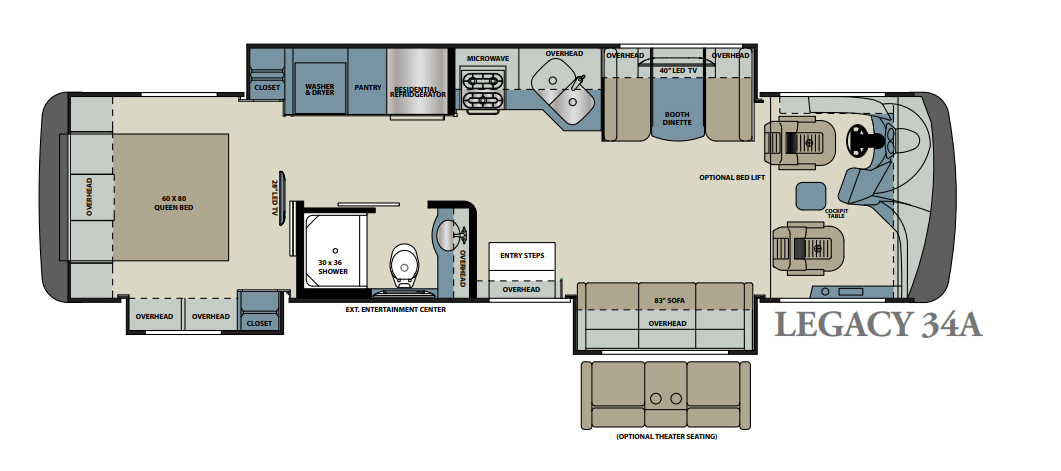

Floorplan: 34A (Class A)

Dimensions

Weights

Capacities

2018 Forest River Legacy RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

AUTOMOTIVE & COCKPIT STANDARDS:
Freightliner XCS Straight Rail Chassis
Cummins ISB Turbo Diesel 6.7 liter 340 HP at 2800 RPM, 700 ft. lbs. Torque at 1600 RPM
Allison MH-2500 6-Speed Automatic Transmission w/ Push Button Shifter
120v Engine Heater 750W
22.5" Polished Aluminum Wheels
Michelin XRV 255/80R22.5
14 Ply Radial Tires
Trailer Hitch
90 Gallon, Locking Dual Fill Fuel Tank
Driver Side Mounted 13 Gallon DEF Tank
LCD Engine Message Center
Day Time Running Lights
7-Pin Tow Power Connector
18.7 CFM Air Compressor
Farr Eco-air Cleaner
Air Filter Restriction Indicator
Fuel/Water Separator
Brake Line Air Dryer w/ Heater
Automatic, Heated Moisture Ejectors
Power Steering
Washer/Wiper w/ Intermittent Function
160 Amp Alternator
Two (2) 1900 CCA at 0 degree Fahrenheit, Maintenance Free Batteries
Full Air ABS Brakes w/ Auto Slack Adjuster
Variable Exhaust Brake
Telescopic/Tilt Steering Wheel
Suspension Neway Front and V-ride Rear
Heavy Duty Front Shock Absorbers
55 degree Wheel cut
Air Suspension Deflation System
Cross Flow, Rear Mounted Radiator
Transmission Oil Cooler
5 year / 100,000 Mile Coolant (some maintenance required)
4-Spoke VIP Black Steering Wheel
Electronic Cruise Control w/ High Idle
Multiple Auxiliary Charging Ports at Dash

CONSTRUCTION & EXTERIOR STANDARDS:
Fiberglass Front and Rear Caps
Full Body Painted Exterior (4x clear coat)
Four (4) Point Fully Auto Equalizer Hydraulic Leveling System w/ Manual Dump
Steel Basement Structure
Rust Resistant Aluminized Steel Chassis Skirts
Diamond Shield Front Mask Protective Film
1 Piece Fiberglass Roof
Top-mount Remote Exterior/Heated/Mirrors w/ Cameras
Frameless Dual Pane, Dark Tint Windows
Automotive Foam and Ziebart Seal Undercoating
Carefree Latitude Dual Pitch Patio Awning w/ LED Lighting & Wind Sensor
Carefree S/O Topper w/ Covers
Strut Assisted Side-Hinged Ext/Baggage Doors w/ Full Pass Through Storage
"One Key" System, Ext-Compartment, Entry Door & Fuel Fill Doors
Ducted A/C System
Crowned and Layered Vacuum Bonded Fiberglass Roof
Vacuum Bonded 3" Floor w/ Tubular Frame
Gel Coated Vacuum Bonded Aluminum Tube w/ Fiberglass & Block Foam Insulation Sidewalls
One Piece 1/2" Structure Wood Flooring
Block Foam Polystyrene Insulation
In Wall Channeled Drains for A/Cs
Tubular Steel Firewall w/ Polystyrene Insulation
Auxiliary LP Supply, Quick Connect (Passenger Side)
Two Piece Rear Ladder
82" Interior Ceiling Height
30" Mid-entry Entrance Door w/ Exterior Assist Handle
LED Marker Lights

ELECTRIC STANDARDS:
50A Service w/ Auto Transfer Switch & 30' Power Cord
6kW Onan Diesel Generator w/ Manual Slide Tray
Electronic Battery Disconnect Switch Remote Generator Start Switch (In Dash & Bedroom)

FLOORPLAN:
Multi-Plex Lighting
Dimmer Control Lighting Throughout
LED Ceiling Light Package
Driver & Passenger LED Ceiling Map Lights
Individual Reading Lights Bed Overhead
Cosmetic Bathroom Lighting
Decorative Wall & Dinette Lighting w/ Applicable
Auxiliary Engine Start Switch at Dash
2000w Pure Sine Wave Inverter/Charger
Auto Generator Start Control
Four (4) Six Volt House Batteries
Two (2) Master Electric Shut Off Switches
Led Porch & Patio Lights
Easy Read 12v Circuit House Load Center
Solar Panel Controller w/ Roof Prep
Automotive Chassis Fuse Panel

PLUMBING STANDARDS:
Variable Speed Constant Pressure Water Pump
Individual Zoned Hot/Cold Manifold Water Supply System
4-way Water Management Valve
Bath - Solid Surface Under Mount Sink
Kitchen - Stainless Steel Under Mount Sink
One Piece Fiberglass Shower w/ Tempered Door & Skylight
Whole House Water Filter
Black Water Tank Flush System
Kitchen-Single Lever Faucet w/ Pull-out Sprayer
Double Lever Lavatory Faucets
Porcelain China Bowl Toilet w/ Foot Flush
Clean-easy Exterior Shower Hose
Monitor Panel in Water Bay Compartment
360 Roof Vent Caps

DRIVER/PASSENGER AREA STANDARDS:
One Piece Windshield
Power Front Day/Night Shade
Manual Passenger & Driver Window
Night Shades
Fog Lights
6" Dash Radio w/ Integrated Color Back-up and Side Camera Package w/ Navigation
Wrap Around Cockpit w/ 6 Gauges
Driver 360 Degree Swivel and Recline Seat w/ 6-Way Power Adjustment
Passenger 360 Degree Swivel w/ Recline Seat
Leatherette Driver/Passenger Seat
Lighted Step Well
Cockpit table between Driver/Passenger Seats
Two (2) Defroster Fans w/ High and Low Settings
Driver/Passenger Cup Holders
Multiple USB Charging Ports
Automotive Dash AC/heater w/ Deluxe Controls

ENTERTAINMENT STANDARDS:
40" LED TV, Living Room
28" LED TV, Bedroom
32" LED TV, Exterior
Sound Bar w/ Integrated Sub & Bluetooth
Roof Mount Winegard Trav'ler Satellite Prep
Cable TV Prep
High Definition Cat6 Matrix Signal Distribution
Hi-Definition Digital TV Antennae w/ Signal Strength Indicator
Upconverting DVD Player

INTERIOR STANDARDS:
12" X 24" Vinyl Tile Throughout
Hardwood Cabinetry & Slideout Fascia
Raised Panel Hardwood Cabinet Doors
Hidden Hinges and Bar Pull Style Cabinet Hardware
Carpeted Living Room and Dining Slide-outs
Window Valances
Visionary Hide-A-Bed Sofa
Soft touch sofa
Polished Solid Surface Kitchen/Dinette C-tops w/ Flush Mount Sink and Stove Covers
Decor Laminate on All Other Countertops
Soft Close Ball Bearing Drawer Guides in Kitchen
Full Extension Ball Bearing Metal Drawer Guides
Galley Storage Compartment for Range and Sink Covers
Kitchen Pantry
"Soft Touch" Dream Booth Dinette w/ Storage Underneath
"Soft Touch" Padded Ceiling
Roller Style Day/Night Shades
Dresser Drawers and Wardrobe Cabinets
60" x 80" Queen Pillow Top w/ Bedspread and Decorative Pillows
Decorative Padded Headboard
Bed Night Stands and Overhead Cabinetry
Mirrored Medicine Cabinets
Towel Bar, Toilet Paper Holder & Towel Ring

APPLIANCE STANDARDS
15,000 BTU w/ Heat Pump (front), 15,000 BTU A/C (rear)
Holding Tank Heat Pads
Continuous Flow Tankless Gas Hot Water Heater
35,000 BTU Furnace
30" OTR Convection Microwave Oven
2 Door Residential Refrigerator
Sealed 3-burner Stainless Recessed Cook Top
Power Fan in Bathroom w/ Rain Cover
Maxxair in Galley w/ Wireless Remote Control w/ Cover
Washer/dryer Prep

SAFETY STANDARDS:
110 GFI Protected Circuits
Carbon Monoxide Detector
LP Gas Detector
Smoke Alarm
Egress Window's
Surface Mounted Fire Extinguisher
