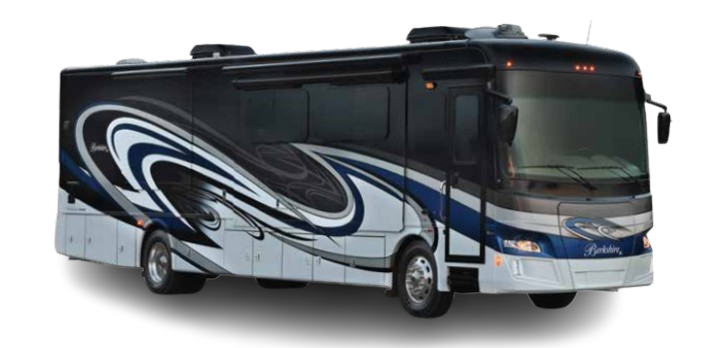

Specs for 2017 Forest River - Berkshire XL

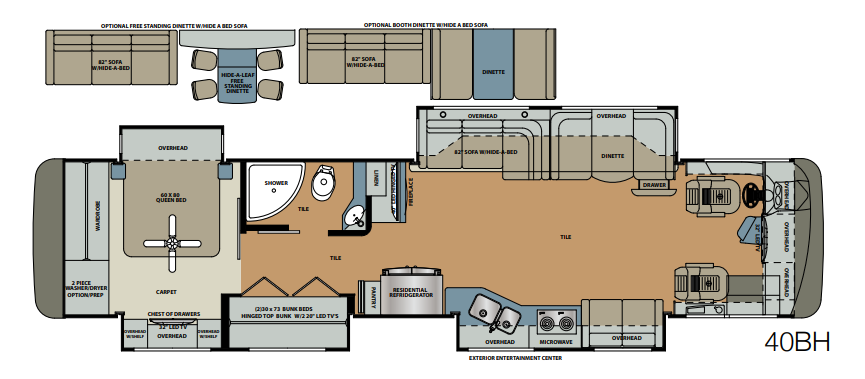

Floorplan: 40BH (Class A)

Dimensions

Weights

Capacities

2017 Forest River Berkshire XL RVs for Sale Near You

Engine/Transmission

Exterior

Electrical

Features

AUTOMOTIVE & COCKPIT:
Freightliner XCR raised rail chassis.
Cummins ISL turbo diesel, 380 HP @2000 RPM, 2200 GOV RPM, 1150 LB/FT @1400 RPM.
Allison 3000MH 6-speed transmission.
120V engine heater, 1000W.
22.5" polished aluminum wheels.
Michelin XZA2 275/80R22.5 14 ply radial tires.
Trailer hitch capacity, 10,000 LBS.
Allison electronic push button shifter.
100 gallon, locking dual fill fuel tank.
Driver side fill, 13 gallon DEF tank.
LCD engine message center.
Day time running lights.
7-Pin tow power connector.
18.7 CFM air compressor.
Farr Eco-air cleaner.
Air filter restriction indicator.
Fuel/water separator.
Brake line air dryer with heater.
Automatic, heated moisture ejectors.
Power steering.
Washer/heavy duty wiper with intermittent function.
160 amp alternator.
Two (2) maintenance free 1900CCA batteries.
Full air ABS brakes with auto slack adjuster.
Variable exhaust brake.
Telescopic/tilt steering wheel.
Suspension Neway front and V-Ride rear.
Sachs custom tuned shock absorbers.
55 degree wheel cut.
Auto air suspension deflation system.
Cross flow, rear mounted radiator.
Transmission oil cooler.
5 year/100,000 mile coolant (some maintenance required).
V.I.P. Smart Wheel, 4-Spoke 18" premium burlwood steering wheel.
Electronic cruise control with high idle.
Multiple auxiliary charging ports at dash.
Power stepwell cover.
Entry assist handle.

CONSTRUCTION & EXTERIOR:
Fiberglass front and rear caps.
Full body painted exterior (4x clear coat).
Four (4) point fully auto hydraulic leveling system with auto air dump.
Steel basement construction.
Tru-Brace chassis support system.
Rust resistant aluminized steel chassis skirts.
Diamond shield front mask protective film.
1 piece fiberglass roof.
Top-mount remote exterior/heated mirrors with cameras.
Frameless dual pane, dark tint windows.
Automotive foam and Ziebart seal undercoating.
Carefree power door awning.
Carefree Latitude patio awning with LED lighting and wind sensor.
Carefree slide out topper with covers.
Full height strut assisted compartment doors with full pass through storage.
"One Key" system, ext-compartment, entry door and fuel fill doors.
Quiet integrated A/C intake/ducting roof system.
Crowned and layered vacuum bonded fiberglass roof.
Vacuum bonded 3" floor w/tubular aluminum frame.
Gel coated vacuum bonded aluminum tube with fiberglass and block foam insulation sidewalls.
1 piece 1/2" Structure wood flooring.
Block foam polystyrene insulation.
30" entryway.
In wall channeled drains for A/Cs.
Tubular steel firewall with polystyrene insulation.
Lighted exterior assist handle.
Two piece rear ladder.
84" interior ceiling height.
PTL steel entrance door with deadbolt.
Auxiliary air chuck (front firewall).
Auxiliary LP supply, quick connect (passenger side).
LED marker lights.
Full length mud flap with chrome Forest River name.
Slide tray in basement compartment.

ELECTRICAL:
50A service with auto transfer switch & 30' power cord.
8kW Onan diesel generator with manual slide tray.
Electronic battery disconnect switch.
Remote generator start switch (on dash & in bedroom).
Multi-Plex lighting with smart APP controls.
Dimmer control lighting throughout.
LED ceiling light package.
Driver and passenger LED ceiling map lights.
Cosmetic bathroom lighting.
Decorative wall and dinette lighting where applicable.
Auxiliary engine start switch at dash.
Individual dimmable reading lights bed overhead.
2000W pure sine inverter/converter.
Auto generator start control.
Four (4) six volt deep cycle house batteries.
Two (2) master electric convenience shut off switches.
LED porch and patio lights.
Easy read 12V circuit house load center.
Solar panel controller with roof prep.
Automotive chassis fuse panel.
Ceiling fan in bedroom with decorative ceiling treatment.
Accent lighted kitchen counter top edging.

PLUMBING:
Variable speed constant pressure water pump.
Individual zoned hot/cold manifold water supply system.
4-way water management valve in water bay compartment.
Bath, solid surface under mount sink.
Kitchen, stainless steel under mount sink.
One piece fiberglass shower with glass door & skylight.
Whole house water filter.
Black water tank flush system.
Kitchen, hi rise single lever faucet w/ pull-out sprayer.
Single lever lavatory faucets.
Porcelain china bowl toilet w/foot flush.
Clean-easy exterior shower hose.
Monitor panel in water bay compartment.
360 Siphon roof vent caps.

DRIVER/PASSENGER AREA:
One piece windshield.
Power front day/night shades.
Manual passenger & driver windows day/night shade.
Black pearl burl dash panels.
Fog lights.
10" dash radio with integrated color back-up and side view camera package with navigation.
Wrap around cockpit with 6 gauge instrument cluster.
Flexsteel soft touch driver seat swivel, recline seat with 6-way power adjust.
Flexsteel soft touch passenger seat swivel, recline and power foot rest.
Passenger side console with cupholder & workstation.
Lighted, tiled step well.
Two (2) defroster fans with high and low settings.
Driver/passenger cup holders.
Multiple USB charging ports.
Automotive dash AC/heater with deluxe controls.
Premium Freightliner gauge package w/chrome bezels.

ENTERTAINMENT:
20" LED TV, (2) each bunk with easy access HDMI jack
32" LED TV, front dash overhead
40" LED TV, living room.
32" LED TV, bedroom.
Hi-Fi sound bar with Bluetooth.
Roof mount Winegard Trav'ler satellite prep.
Cable TV prep.
High Definition Cat6 matrix signal distribution.
High Definition digital TV antenna with signal strength indicator.
Sirius/XM satellite radio capable.
Blu-ray DVD player.
Ext/entertainment center in sidewall: 40" TV and radio with auxiliary jack.

INTERIOR:
Bi-fold doors, bunk beds
Villa "soft touch" love seat
Polished porcelain tile with accent tile.
Hi gloss glazed hardwood cabinetry and raised panel doors.
Hidden hinges and pull style cabinet hardware.
Carpeted living room and dining slide-outs.
Window valances.
Bedroom carpet with padding.
Villa dream booth dinette/sofa ensemble with Hide-A-Bed and storage.
Polished solid surface kitchen countertops and backsplash with tile inserts.
Polished solid surface bathroom countertops and backsplash with tile inserts.
Laminate on all other countertops.
Soft close ball bearing drawer guides in kitchen.
Full extension ball bearing metal drawer guides.
Galley storage compartment for sink covers.
Soft Touch padded ceiling.
Roller style day/night shades.
Dresser drawers and wardrobe type cabinets.
Hardwood headboard with padded insert.
Contoured overhead cabinets in slide rooms.
Bed night stands (front stand with dual USB jack).
Mirrored medicine cabinets.
Towel bar, toilet paper holder and towel ring.
Fitted cockpit floormat with "Berkshire" logo.

APPLIANCE:
15,000 BTU with heat pump (front), 15,000 BTU (rear) low profile A/C's.
Holding tank heat pads.
Truma continuous flow tankless gas hot water heater.
(2) Dual zoned 20,000 BTU furnaces.
30" OTR convection microwave oven.
Residential 23 cu. ft. French door refrigerator with ice maker.
Recessed electric glass induction cook top.
Power fan in bathroom.
Maxxair in galley w/wireless remote control w/cover.
Washer/dryer prep.
Electric fireplace.
Central vacuum system.

SAFETY:
110 GFI protected circuits.
Carbon monoxide detector.
LP gas detector with auto tank shutoff.
Smoke alarm.
Egress window.
Surface mounted fire extinguisher.
