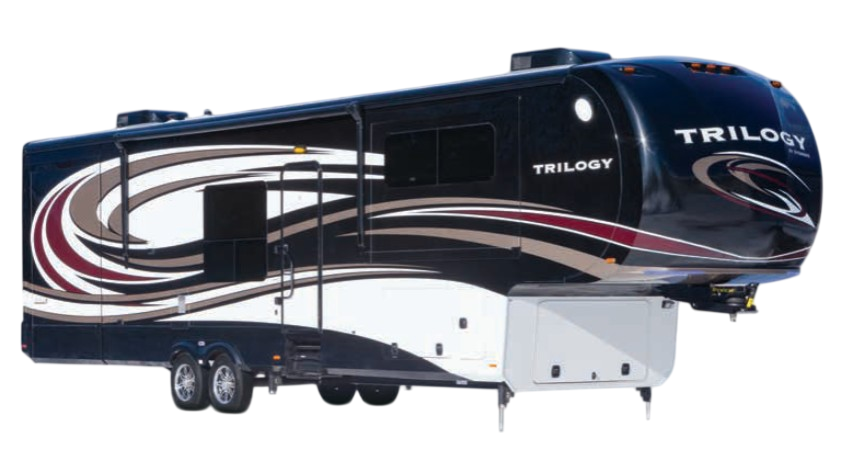

Specs for 2015 Dynamax Corp - Trilogy

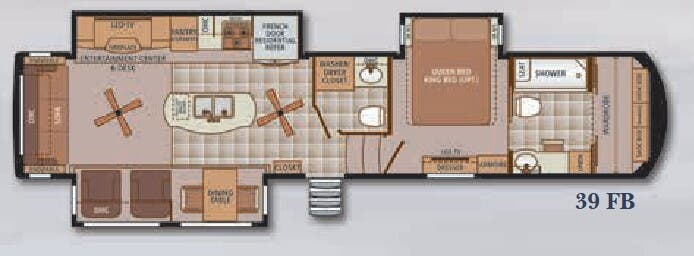

Floorplan: 39FB (Fifth Wheel)

Dimensions

Capacities

Exterior

2015 Dynamax Corp Trilogy RVs for Sale Near You

Electrical

Features

EXTERIOR
LED Running Lights
Aerodynamic Front and Rear Molded Fiberglass Caps
Wide-Body Design 100" Wall to Wall Exterior
Flush Mount Frameless Tinted Windows with UVA Inhibitor
Door Side Scare Light for Safety
Lighted Entry Steps
Frame, Hitch and Stabilizing
12" I-Beam Frame with 8" I-Beam Drop
Rust Prohibitive Coating on Frame
6-Point Hydraulic Auto Level-Up System
Hydraulic Slide Out Systems Main Level
Norco Cable Slide(s) Upper Deck
Mor/Ryde 21K RBP Pin Box
Quad Entry Steps
Rear Class One Hitch Receiver

AXLES, TIRES, AND BRAKES
Alco 7,000 lb. Axles with Easy Lube Hubs
2" x 12" Self-Adjusting Brakes
8 Lug Aluminum Wheels
Goodyear 16" "G" Rated Tires
Full Size "G" Rated Spare Tire
Mor/Ryde LRE 4000 Premium Suspension with 4" of Travel
Grease Zerks for Easy Maintenance
Correct Track Wheel Alignment System

UNDERBELLY
Seamless Corrugated Underbelly
Insulation Around Tanks and Heat Ducted
One Layer of Radiant Barrier
Fresh, Grey and Black Tanks are Equipped with 12 Volt Heat Pads

FLOOR CONSTRUCTION
Laminated Construction Floor for Strength
3" Aluminum Floor Joists
5/8" Marine Grade Tongue and Groove Plywood Floor
Block Foam Insulation
Seamless One-piece Residential In-floor Heat Duct System
Enclosed Water Lines

POWER
90 Amp/12 Volt DC Power Converter
50 AMP Detachable Marine Cord
Enclosed Battery Compartment
Maximum of 4 or 6 Batteries Per Coach
1800 Watt Inverter Wired to Refrigerator and Living Room TV

HEATING, A/C, PLUMBING AND CAPACITIES
40,000 BTU Furnace
30 lb. LP Bottles
Whisper Quiet Air Conditioning System with Residential Returns
Dual 15,000 BTU Low Profile Air Conditioners – Front and Back
Pre-wired for Electric Heat Pumps
Pre-wired and plumbed for third Air Conditioner
Color-coded Plumb-PLEX Water Lines with 10/25 Warranty
Thermostatically Controlled 12 Volt Heat Pads
12 Gallon Gas/Electric DSI Water Heater with 16.2 Recovery Rate
On Demand Shur-Flow Water Pump System

OUTSIDE STORAGE
Over 250 Cu. Ft. of Basement Storage
Felt Lined Walls
Durable Tough Ply Diamond Flooring
Basement Floor Storage
Heat Ducted
Large Insulated Bus Style Slam Latch Baggage Doors with Locks
Unobstructed Pass-through Design
12 Volt LED Lights
Cable and Satellite Hook-ups with 110 Volt Outlet

CABINETRY
All American Cherry Cabinets
Cherry Stiles
Felt Lined Cabinets
Full Extension 100 lb. Ball Bearing Drawer Glides
Residential Hidden Hinges

INTERIOR CONTROL CENTER
Independent Slide-out Switches
Awning Control Switch
Pre-Wired for Second Awning (If available)
12 Volt Heat Strips Control
Inverter Controls
Monitor Panel for Systems
TV Antenna Power Booster Control

BATH
6' 8" Bathroom Ceiling Height
1 Piece Fiberglass Shower with Seat and Glass Doors
LG Solid Surface Sink and Vanity Top with Waterfall Edge
Oversized Mirror Medicine Cabinet with Felt Lined Shelves
Porcelain Foot Flush Toilet
Fantastic Fan with Control Switch
Heating and Cooling Ducts
Domed Skylight Over Shower
12 Volt LED Lighting
Felt Lined Pocket Door

WALLS AND SLIDES
2" Laminated Sidewalls (Including slide sides)
Welded Aluminum Construction
Laminated Fiberglass Roof on Slides
1" Coated Plywood Slide-out Floor
7' Slide Room Interior Height
Flush Mount Frameless Tinted Windows with UVA Inhibitor
30" Radius Entry Door with Peep Hole and Keyless Entry
.040 Skirt Metal for Added Strength
Carefree Power Awning with LED Lighting – Metal Wrapped
High Gloss Gel Coat Fiberglass Exterior
Steel Backers for Cabinets
Diamond Shield Paint Protection (Full body painted units only)
110 Volt Exterior Electrical Receptacle

ROOF CONSTRUCTION
5" Crowned Welded Aluminum Roof Rafters
16" on Center
3/8" Roof Decking
Full Walk-on Roof
Seamless Dicor Brite Tec TPO Roofing Material with 12 Year Warranty
Radius Metal Roof Cap
R-11 Batton Insulation
One Layer of Radiant Barrier Under Roof Decking
Digital TV Antenna
360 Siphon Vent Caps
Pre-wired and Plumbed for Third A/C
Pre-wired for Roof Mounted Satellite

DOCKING CENTER
City Water Hook-up with Direct Feed Water Tank Fill
Black Tank Flush System
Shielded RG-6 Coaxial Cable Hook-up
Satellite Control Panel
All Tank Pull Handles
Water Manifold System
Water Filtration System
Exterior Hot and Cold Water with Quick Connect
Winterization Valves
6-Point Leveling System Control Panel
12 Volt Quick Disconnect

LIVING ROOM
Dual 31" Residential Recliners
Overstuffed Sofa with Bottom Storage
Pull-out Executive Desk with Interior Storage
Pull-out File Cabinet Drawer
Pull-out Printer/Paper Shredder Drawer
36" 110 Volt Ceiling Fan with 3-Way Control
Crowned Ceiling with 8' 8" Interior Height (Lower deck)
7' Slide Room Interior Height (Lower deck)
Crown Molding
Samsung LED LCD High-Definition TV
500 Watt Samsung Smart Hub Home Theater System with Blu-Ray DVD Player and Optical Audio Input
Dual Satellite Pre-wire
HDMI Cable for Cable/Satellite Box
12 Volt LED Lighting
3-Way Ceiling Light Switch
MCD Day/Night Pull Down Shades
Wood Trimmed Windows with Designer Valance
Electric Fireplace with Heater
Shaw Residential Carpet with Residential Pad

KITCHEN
French Door Stainless Steel Residential Refrigerator with Ice Maker and Water Dispenser
30" Stainless Steel OTR Convection Microwave
21" Stainless Steel Oven with 3-Burner Top and LG Covers
LG Solid Surface Countertops with Waterfall Edge
Stainless Steel Split Deep Bowl Kitchen Sink with LG Covers
High Rise Faucet with Pull-out Sprayer
Pantry with Pull-out Drawers and Oversized Top Shelf
Pull-out Removeable Cutting Board for Easy Cleaning
Pull-out Waste Basket
Pre-wired for Dishwasher
Free Standing Dinette Table with Pivoting Top
2 High Back Fabric Chairs with Bottom Cushion Storage
2 Folding Chairs for Additional Seating
Mosaic Hand Laid Tile Backsplash
Built-in Toe Kicks on Island
Fantastic Fan with Control Switch
12 Volt LED Lighting
3-Way Ceiling Light Switch at Island
Wood Trimmed Windows with Designer Valance
36" 110 Volt Ceiling Fan with 3-Way Control

BEDROOM
Trump Serta Home Edition Pillow Top Mattress
Lighted Walk-In Closet with Solid Cherry Framed Doors and Fluted Glass Inserts
6' 8" Upper Deck Bedroom Ceiling Height
Washer/Dryer Prep
Cross-flow Ventilation Windows
LG Solid Surface Vanity with Pull-out Drawers
Crown Molding
Pillow Tucked Headboard
Nightstands with 110 Volt Outlet
12 Volt LED Lighting
Wood Trimmed Windows with Designer Valance
MCD Day/Night Pull Down Shades
Samsung LED LCD High-Definition TV
Dual Satellite Pre-wire
Designer Comforter with Pillows and Shams
Lift-up Bed for Additional Storage (Felt lined)
Shaw Residential Carpet with Residential Pad
