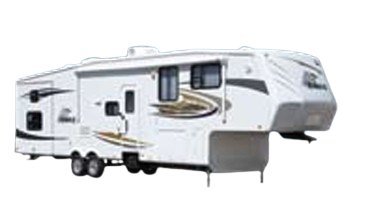

Specs for 2010 Jayco - Eagle

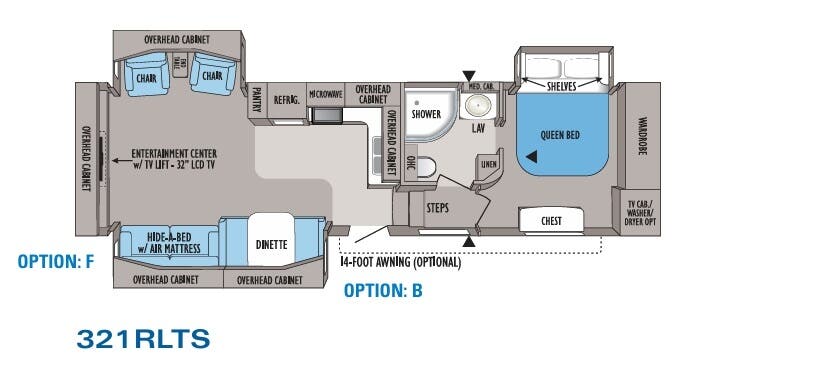

Floorplan: 321RLTS (Fifth Wheel)

Dimensions

Weights

Capacities

2010 Jayco Eagle RVs for Sale Near You

Exterior

Electrical

Features

BATHROOM
ABS tub/shower surround
Large sink in bathroom
Medicine cabinet with mirror
Radius-glass shower door
Residential 6-panel passage door
Switches for all lights
Thetford® porcelain toilet with foot flush
Toilet paper holder
Towel holder
Towel ring
Vanity light fixture
Vinyl flooring

BEDROOM
Accordion door to bedroom
Coordinated, quilted bedspread
Decorative headboard
Dresser lamp
Laundry hamper
TV cabinet
Under-bed storage, bed lifts easily on gas struts

KITCHEN
3-burner range with 9,000-bTu Superburner™ and piezo igniter
8 cu. ft. flush-mount refrigerator with double door
Antique brass high-rise faucet
Bi-fold cover for range
Color-coordinated countertops
Decorative wood spindles on base cabinets
Deep residential-style sink
Deep storage drawers under booth dinette
dream dinette™ mechanism, raises and lowers dinette table top
Extra large picture window at dinette
Oversized 21" oven
Range hood with light and exhaust fan
Sink cover/cutting board (1)
Sponge holder under sink

CONSTRUCTION
2" x 3" longitudinal floor studs placed on 16" centers
5/8" tongue-and-groove plywood main floor decking
Aerodynamic wrap-around front fiberglass cap
Bead-foam insulation in sidewalls and roof
Cabinetry crafted with screwed-stile construction
Electric-powered slideout
Frame prepped for bike rack/cargo tray
FRP smooth fiberglass sidewall exteriors
Fully-decked roof with 1/4" plywood
Heated and enclosed fresh water tank and holding tanks
I-Class® cambered structural steel I-beam frame
Pin box, long
Platforms for dinette, bed and bunks are constructed  of 1/2" plywood
Polar barrier™ insulation package
Poly flex™ one-piece moisture barrier underbelly covering
R-21 insulation in roof, R-9 in sidewalls, R-24 in floor
and underbelly, R-15 in slideout floors
Reflective foil insulation in main floor
Reflective foil insulation in slideout floors
Seamless one-piece rubber rooF
TuffShell™ vacuum-bonded 5" crowned laminated roof
TuffShell™ vacuum-bonded laminated sidewalls
Welded tubular aluminum sidewall framework

EXTERIOR
12V hitch light
16" radial tires
Amber patio light with inside switch
baggage doors, lockable, insulated and radius-cornered
with heavy-duty grab handles
big Easy™ entrance step with 10" deep treads
Bumper with drain hose carrier and end caps
Chrome hub caps
dexter® nev-R-adjust™ brakes
Electric-powered front jacks
Exterior speakers, high-output marine-grade (2)
E-Z lube® axles
Front jacks with quick-release pins
Galvanized steel wheel wells
moR/ryde® CRE 3,000 axle equalizer
Outdoor media center
Painted bottom radius skirting
Prep for outside grill
Rain guttering, molded with drip spouts
Rear stabilizer jacks (2)
Roof ladder
Screened egress bunk windows
Spare tire with carrier
Stor-galore™ basement storage
Torq-n-go™ wheel nuts
White-framed radius-cornered fiberglass main entry door

INTERIOR
32" LCD HDTV in living area
Antique brass cabinet hardware
Antique brass lighting at sofa and dinette
Arched step treads into bathroom
ball bearing drawer guides 75-lb. capacity with full- drawer extension
Cabinet door hinges, hidden throughout
Cable and satellite TV prepped
Ceiling fan
Crank-up HDTV antenna with signal booster
Fabric-covered box valances with lambrequin legs
Free-standing end table
Hardwood message center
Hide-a-bed sofa (air mattress)
High-intensity 12V lighting package
Overhead cabinetry in slideout room
Pleated day/night shades throughout
Residential furniture, designed and made by Jayco®
Residential trim package throughout
Roof-mounted antenna for radio
Solid hardwood interior grab handle for main entrance door
Swivel rocker(s)
Trackless carpeting with padding
Transom window with wood trim above main slideout room
Ventilating windows on slideout end walls
Wallpaper border

HEAT, POWER & WATER EQUIPMENT
6-gal. gas/electric DSI auto-ignition water heater
12V demand water pump
12V electrical system with deluxe 120V 80-amp power converter
50-amp power cord
120V G.F.C.I. protected exterior receptacle
a/C Chillgrille™
ABS holding tanks
Auto-ignition furnace with wall thermostat
Battery box for two batteries
Black holding tank sprayer
Double 30-lb. propane bottles with regulator
Hook-up for city water
In-floor ducted heating
Outside shower
Rotocast fresh water holding tanks
Systems monitor panel
uni-dock™ utility center, heated and enclosed
Water heater bypass system
Water system winterization kit

SAFETY EQUIPMENT
Breakaway switch
Deadbolt lock on entrance door
Egress window
Fire extinguisher
Propane/carbon monoxide alarm
Smoke alarm
Tinted safety-glass windows

CUSTOMER VALUE PACKAGE
12-gal. gas/electric DSI auto-ignition water heater
13,500-bTu a/C with wall thermostat and louvered directional ceiling vents
15,000-bTu a/C with louvered and louvered directional ceiling vents
Bathroom power vent
Carefree® Travel'r™ 12V electric patio awning
Deluxe pillowtop mattress
Floor-mounted safe
Foldable, exterior grab handle
Microwave oven with carousel
multi-media Premium Sound System™ am/fm/Cd/dVd stereo with MP3 input jack
Security lights (2)
Skylight in tub/shower
Vacuum-bonded 5" crowned laminated roof with R-21  insulation
Water purifier
