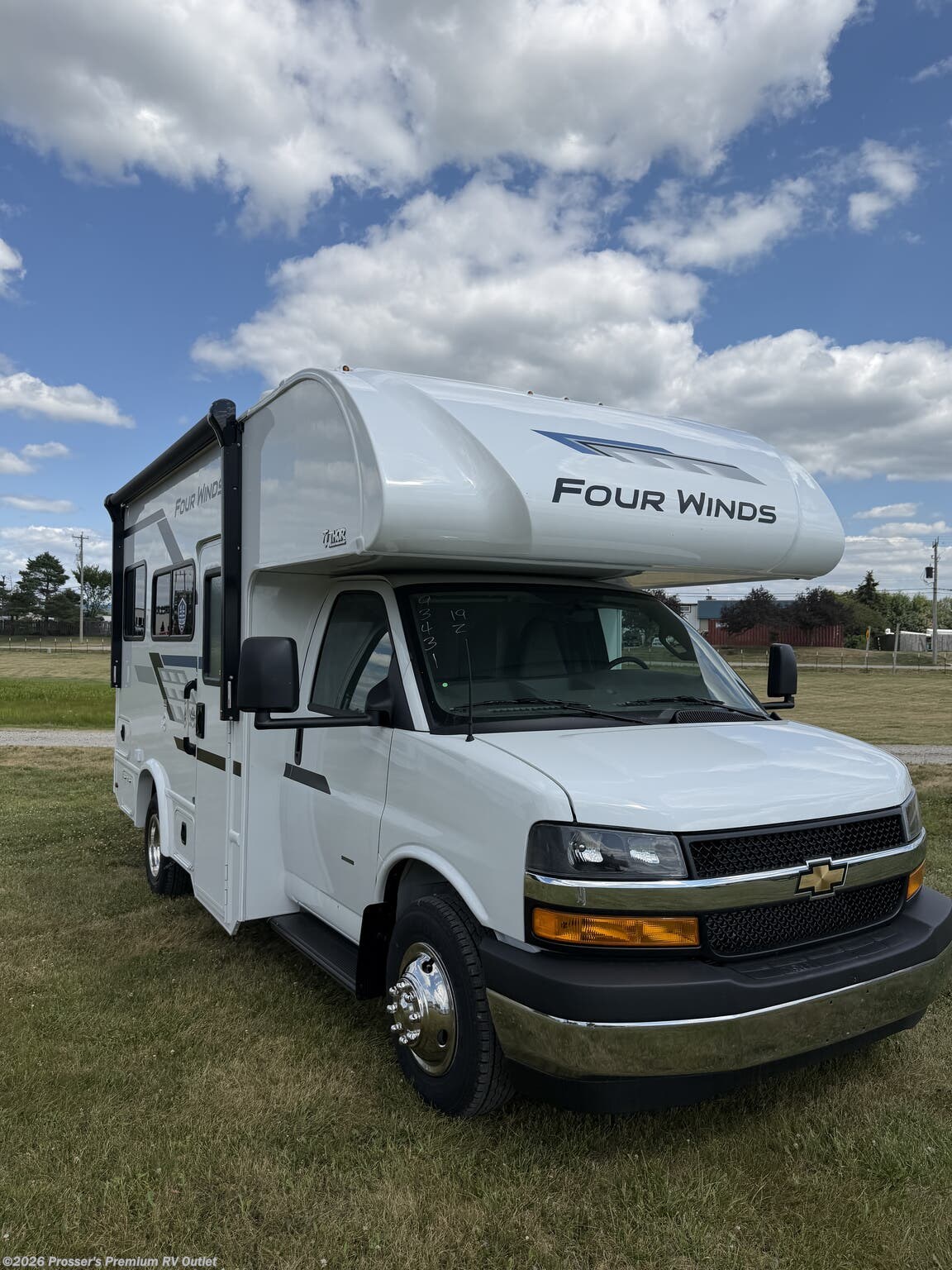

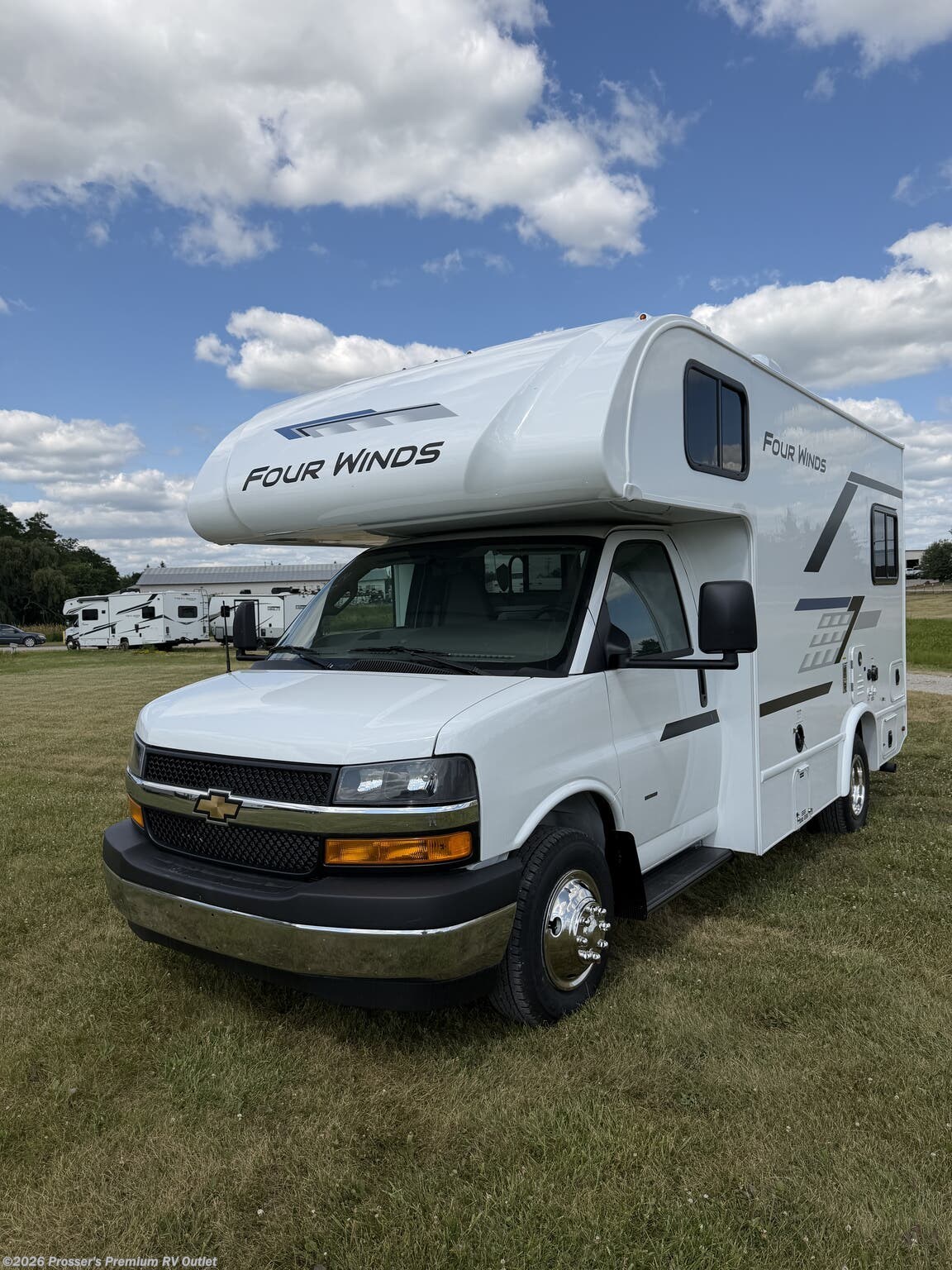

2027 Thor Motor Coach Four Winds 19Z

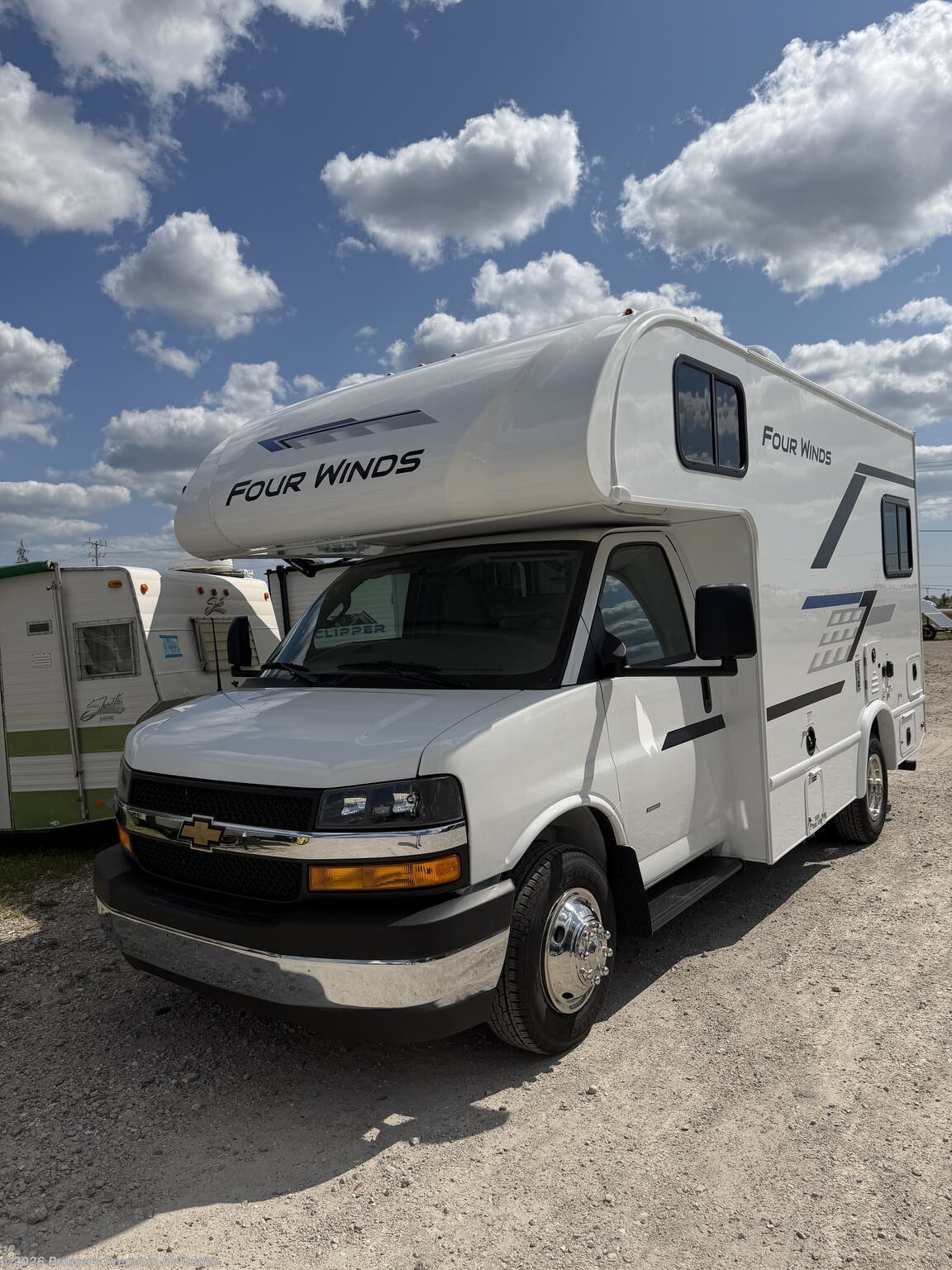

2027 Thor Motor Coach Four Winds 19Z Class C Motorhome in Sturtevant, Wisconsin

A Truly Compact Class C with a Rear U-Dinette, Wet Bath, Generator and Full RV Convenience

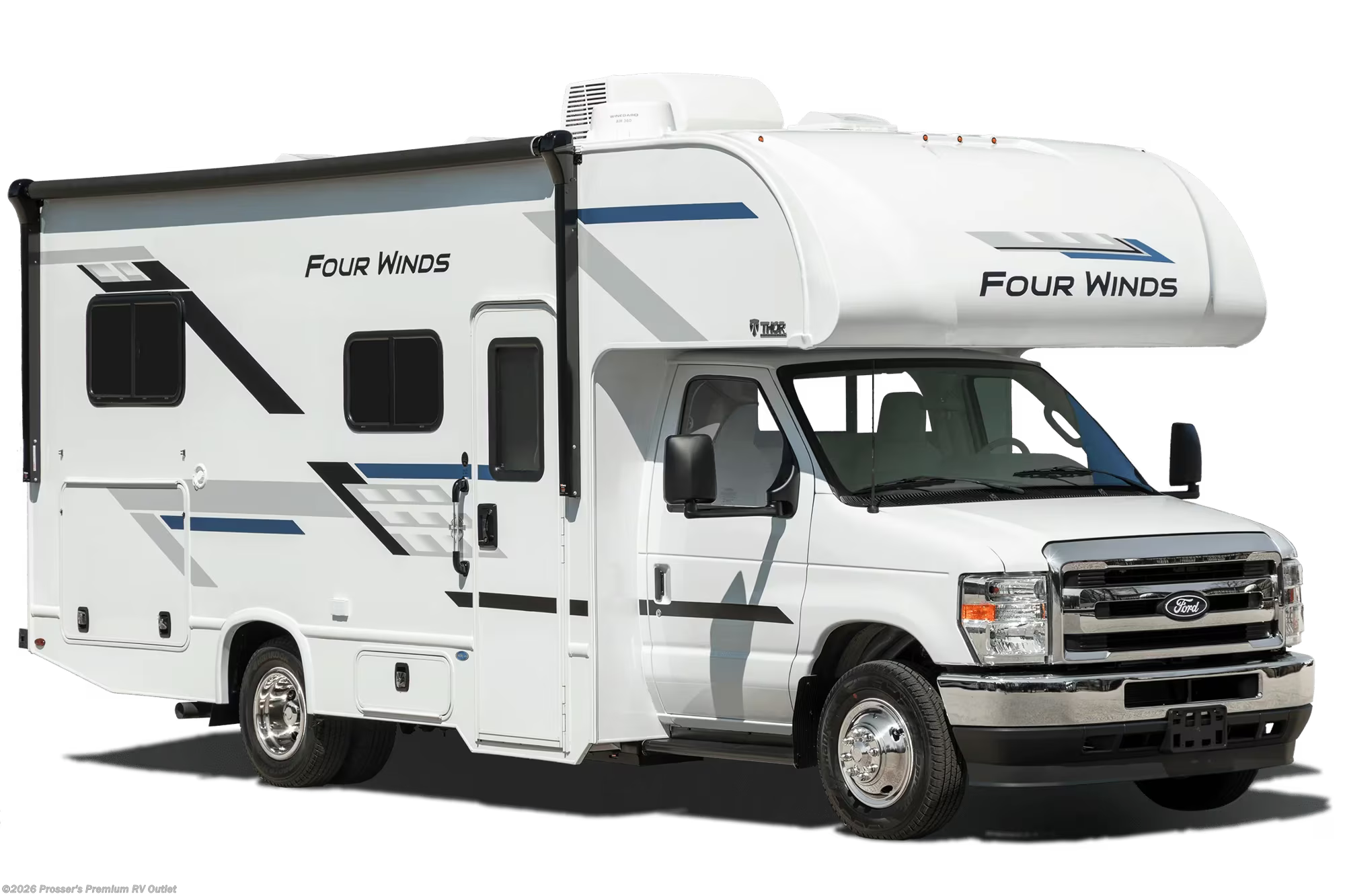

The 2027 Thor Motor Coach Four Winds 19Z gives couples, solo travelers and small families the freedom of a self-contained motorhome in a remarkably manageable 20-foot-5-inch package. It is short enough to feel comfortable in parking lots, fuel stations and smaller campsites, yet it still provides a kitchen, bathroom, generator, comfortable sleeping space and the elevated driving position many buyers appreciate in a Class C.

Built on the Ford E-Series chassis and powered by Ford’s 7.3-liter V8 gasoline engine, the 19Z combines familiar automotive controls with 325 horsepower and 450 lb-ft of torque. There is no trailer to hitch and no slide-out to extend before using the interior—just park, settle in and begin enjoying the destination.

At a Glance

• Compact 20' 5" overall length
• Ford E-Series chassis
• 7.3L V8 gasoline engine
• 325 horsepower and 450 lb-ft of torque
• No slide-outs
• Rear U-shaped dinette that converts into a bed
• Cab-over sleeping area
• Wet bath with shower and toilet
• 4.0 kW dual-gas/LP generator
• 13,500 BTU roof air conditioner
• Tankless water heater
• 32-inch Smart TV
• Power awning with LED lighting
• Sleeps up to three
• Stock number NP20286

Why You’ll Love the Four Winds 19Z

The most compelling feature of the 19Z is how much travel capability Thor fits into such a compact footprint.

At only slightly longer than many full-size passenger vans, it is considerably less intimidating than a traditional 28- or 30-foot Class C. That makes it especially appealing to first-time motorhome owners, couples downsizing from a larger coach, and travelers who want to explore without managing an oversized RV.

Because there are no slide-outs, the living space remains fully functional during quick roadside stops, lunch breaks and overnight stays. You do not have to extend a room before reaching the kitchen, using the bathroom or relaxing at the dinette.

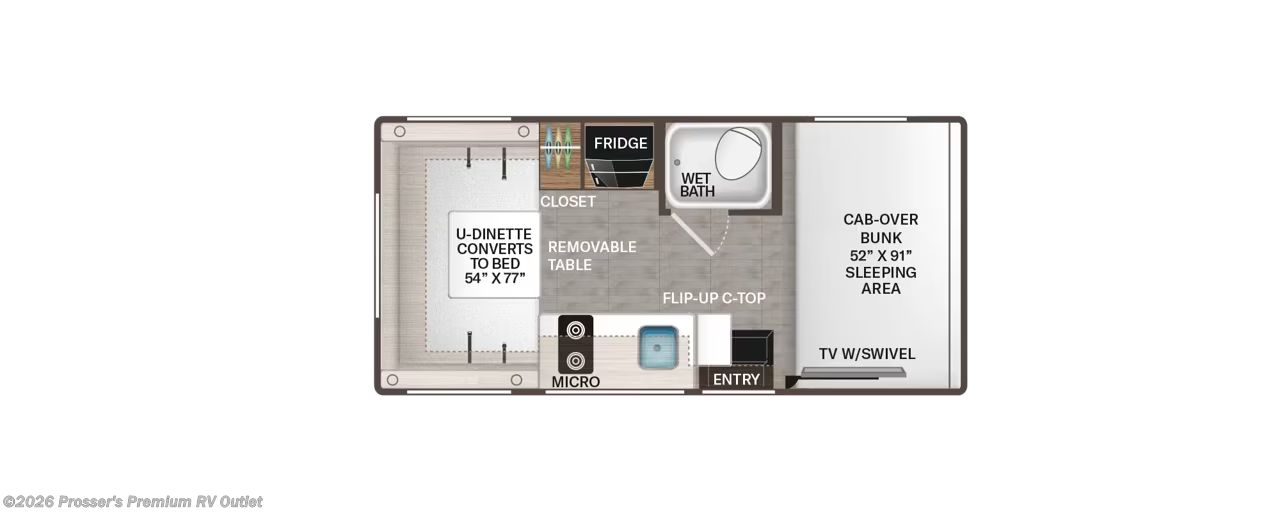

What Makes the 19Z Floorplan Different?

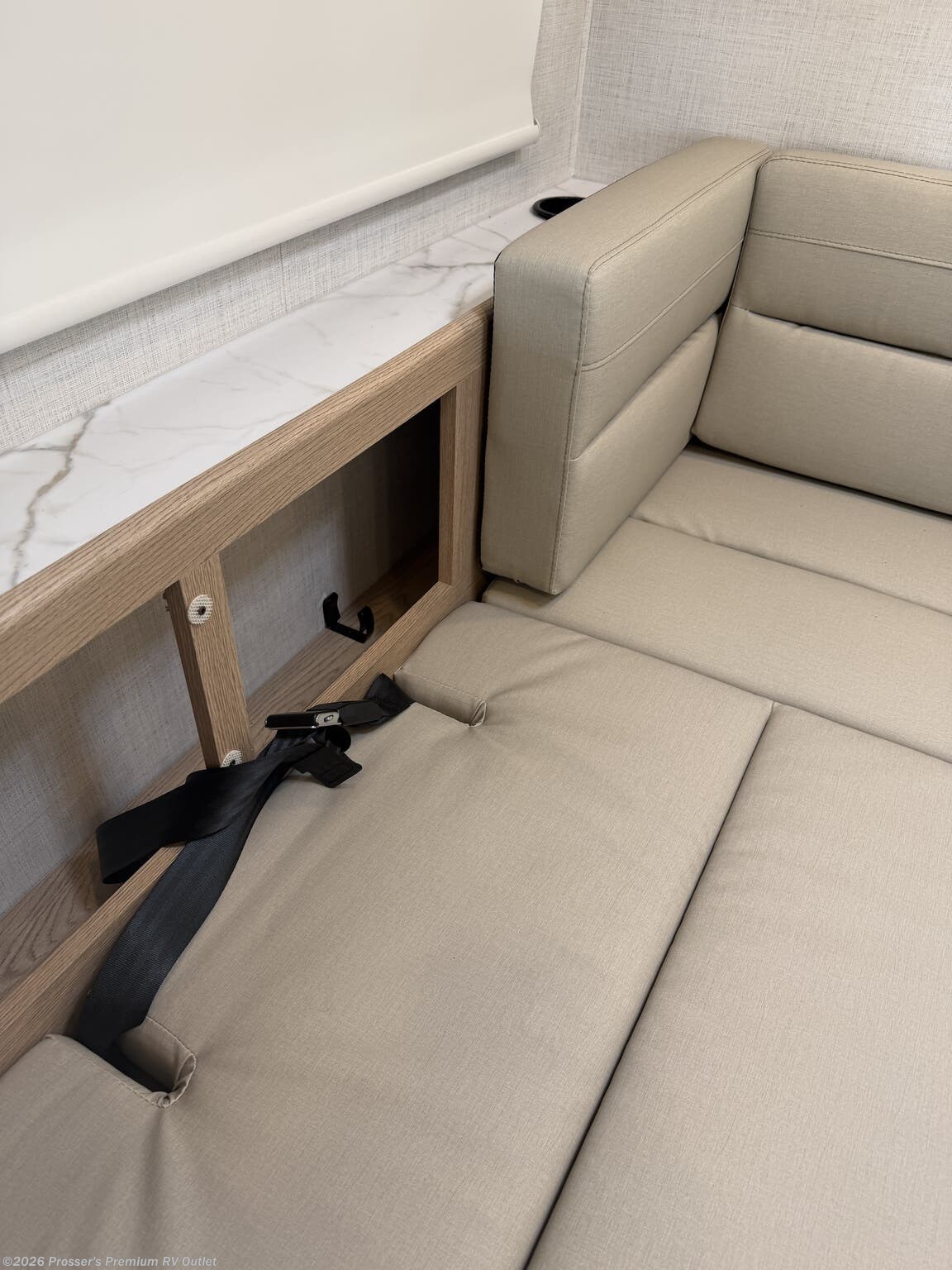

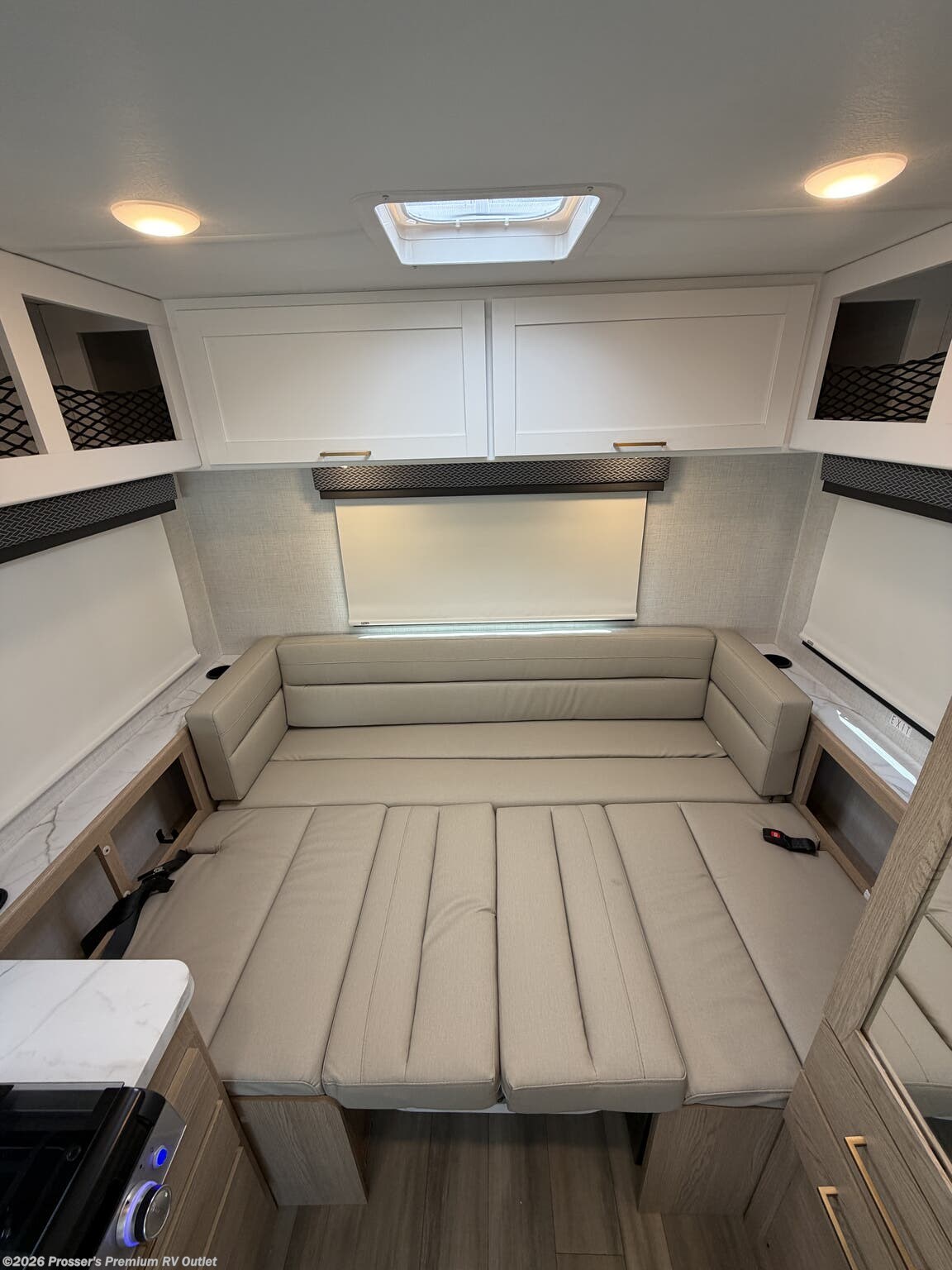

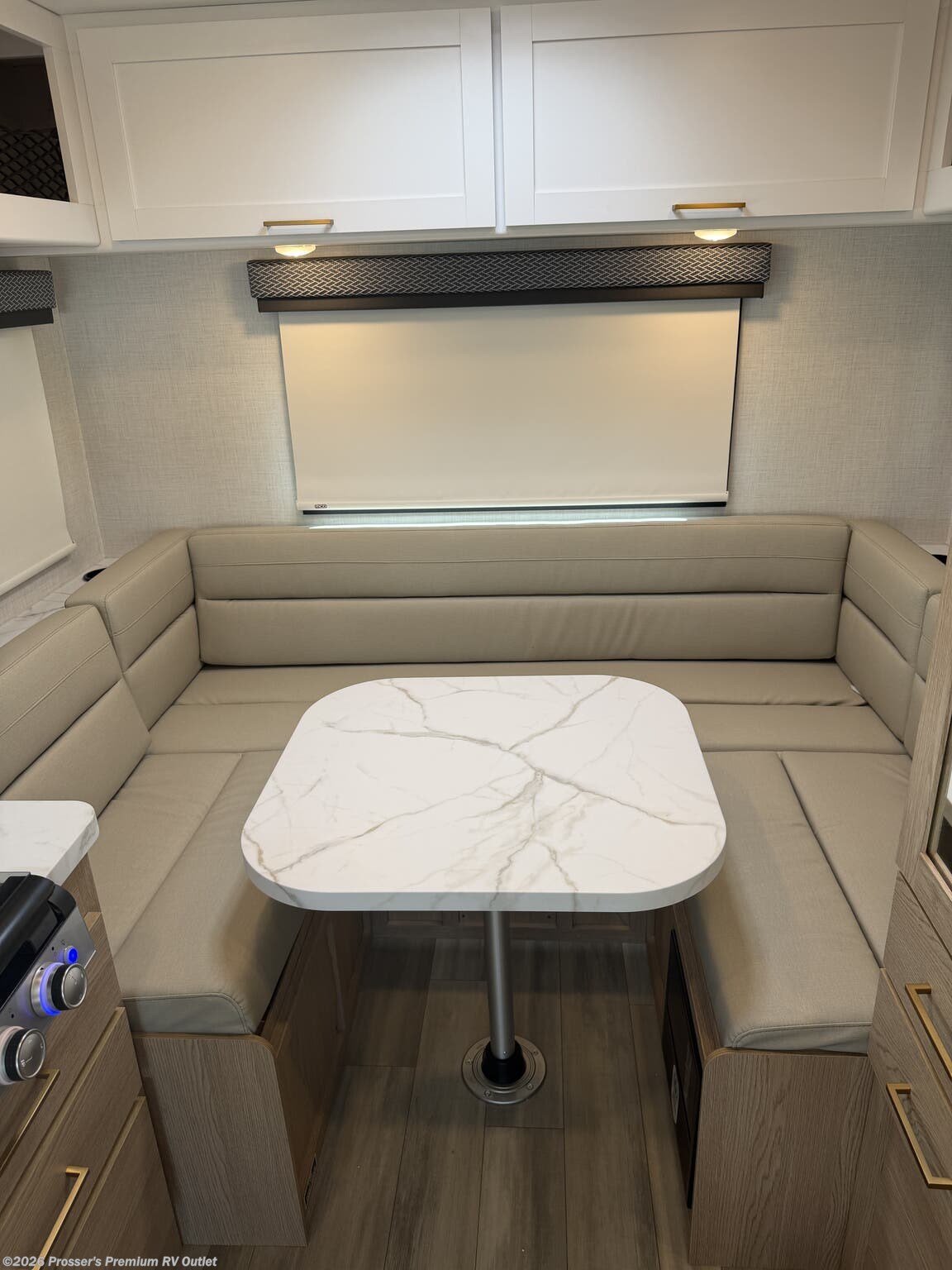

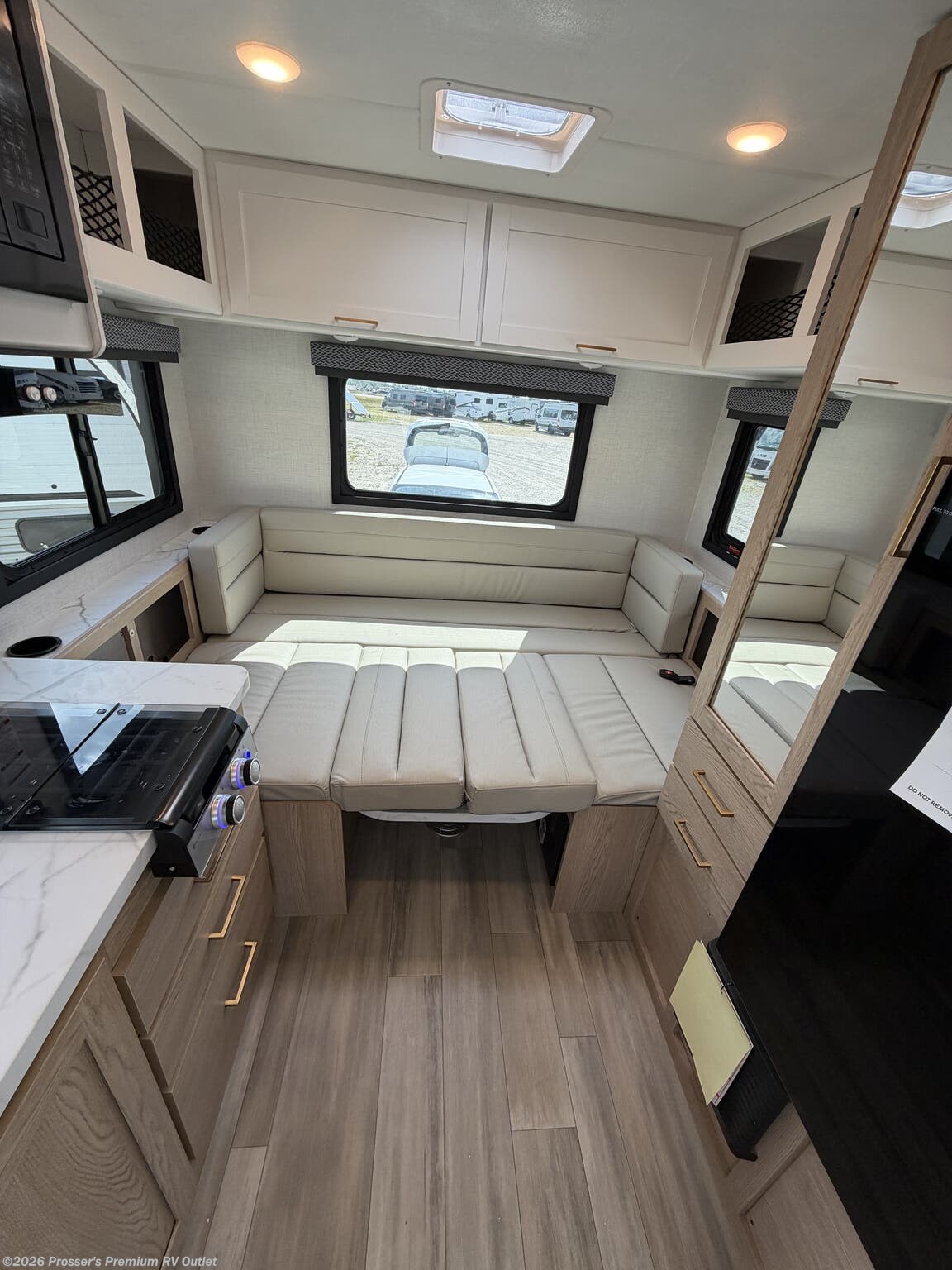

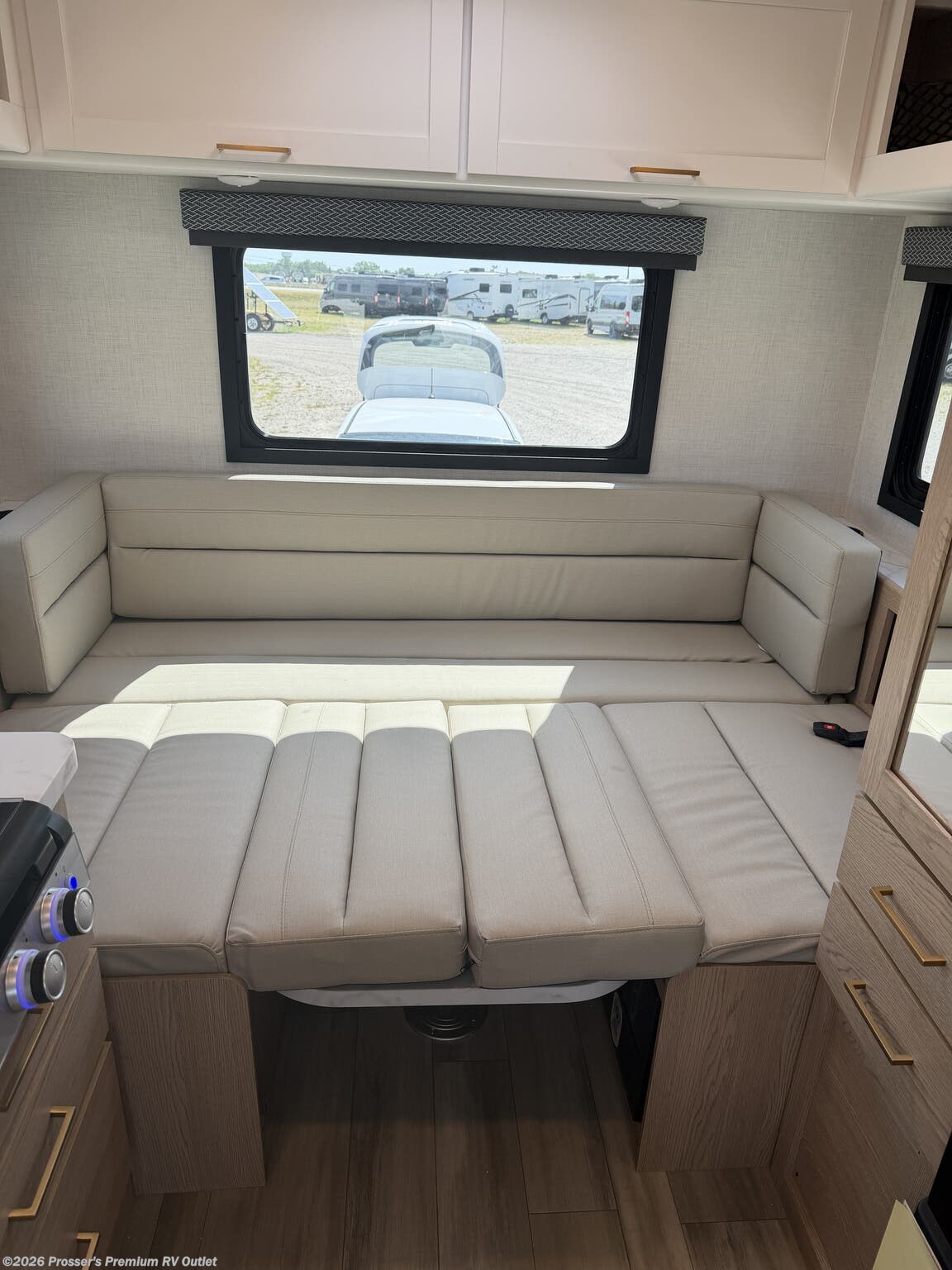

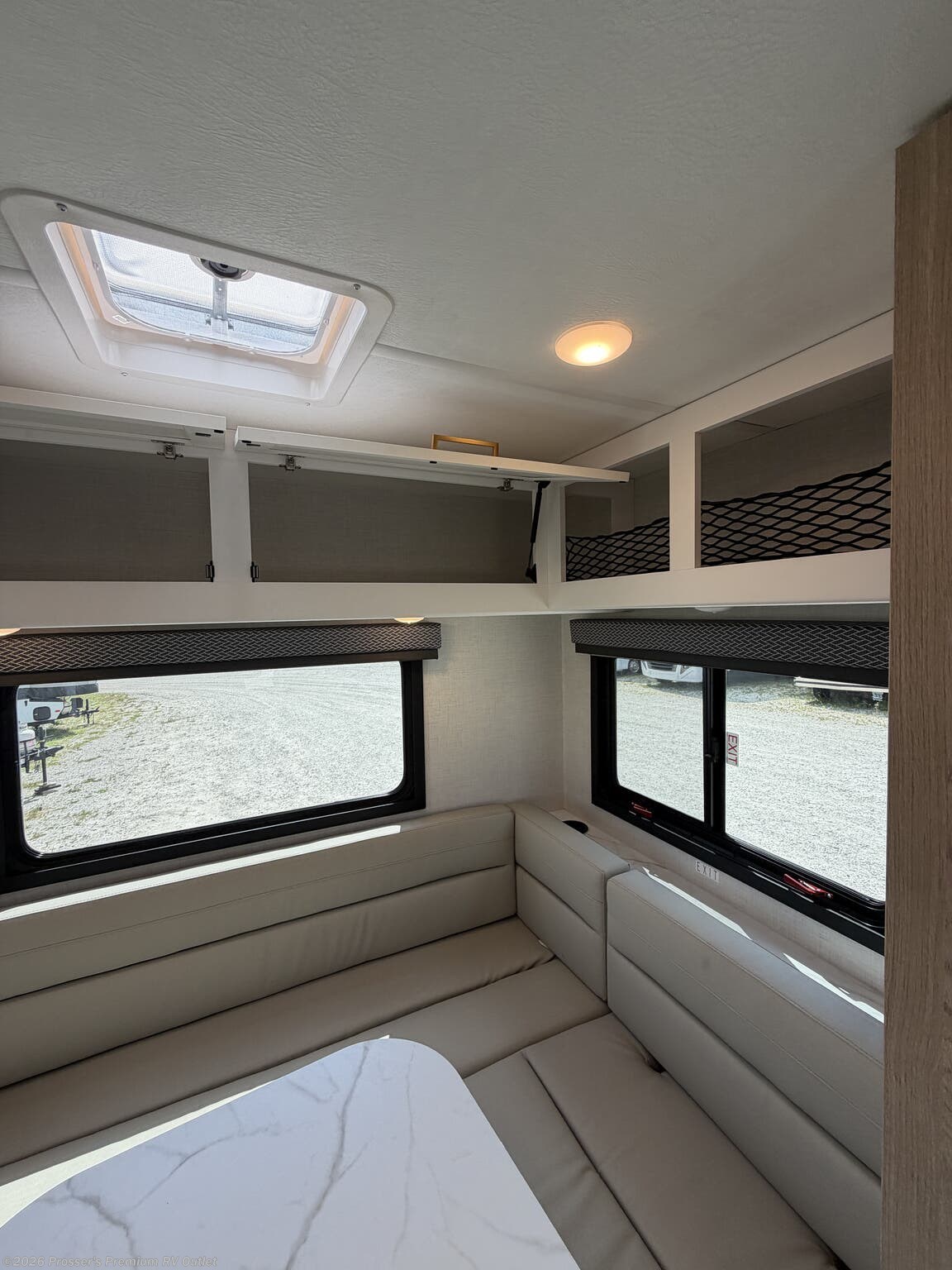

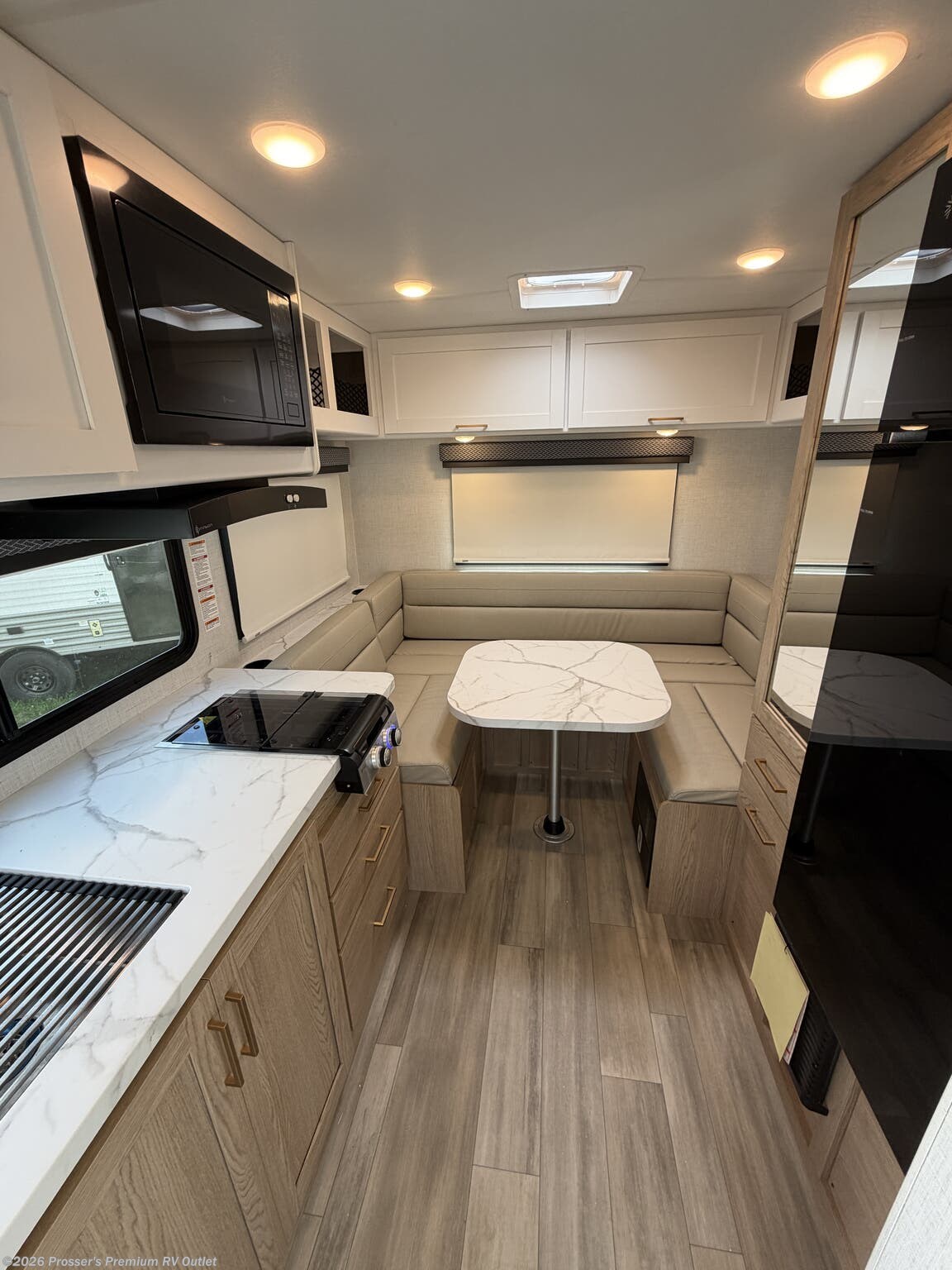

The rear U-shaped dinette is the centerpiece of the floorplan. It provides a comfortable place for meals, card games, computer work or relaxing with a view through the surrounding windows. At night, it converts into the primary sleeping area.

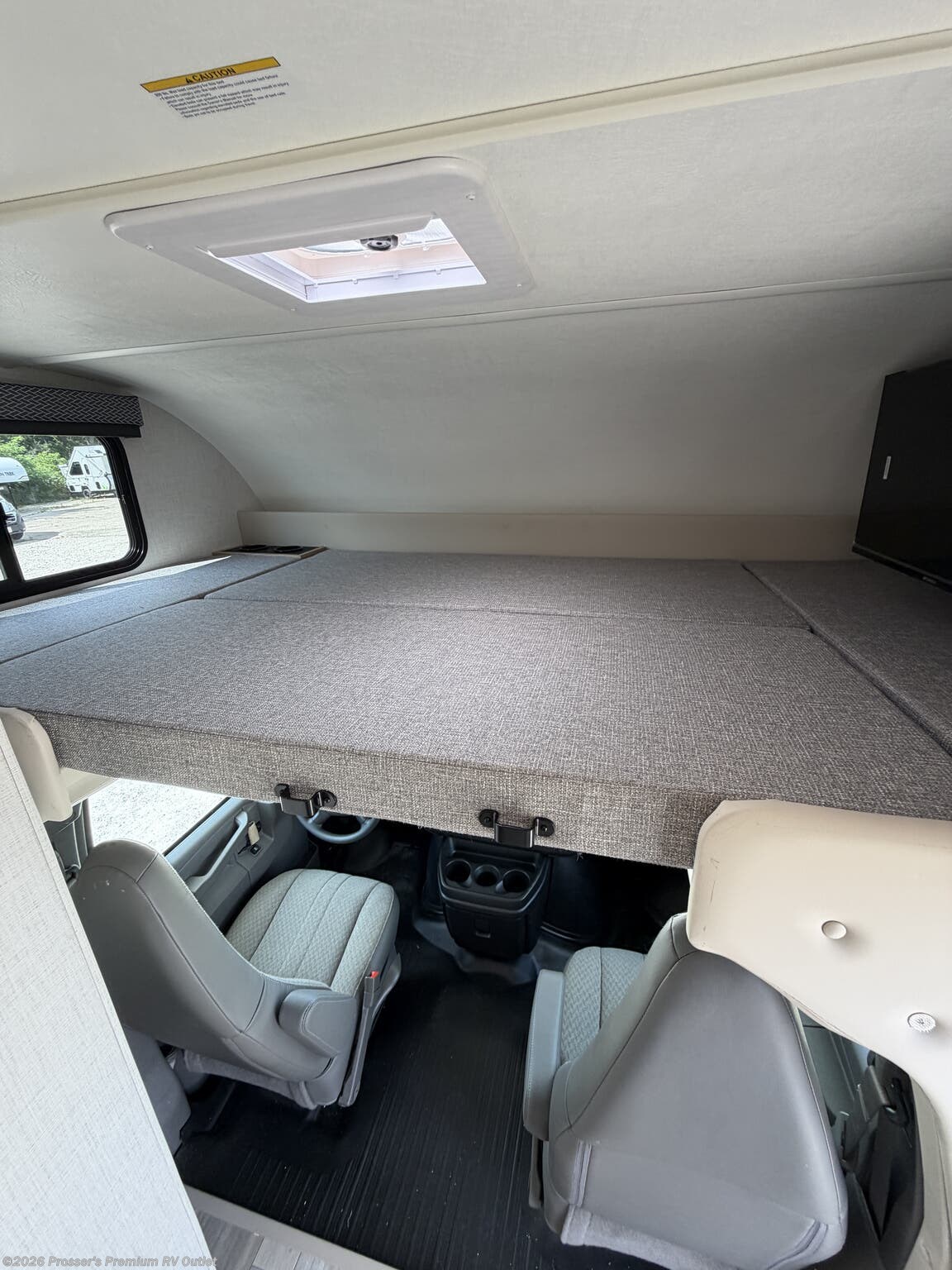

A separate cab-over sleeping space gives the 19Z flexibility that many similarly sized touring coaches lack. It can accommodate a third traveler, provide separate sleeping areas for two people, or serve as useful storage when it is not needed as a bed.

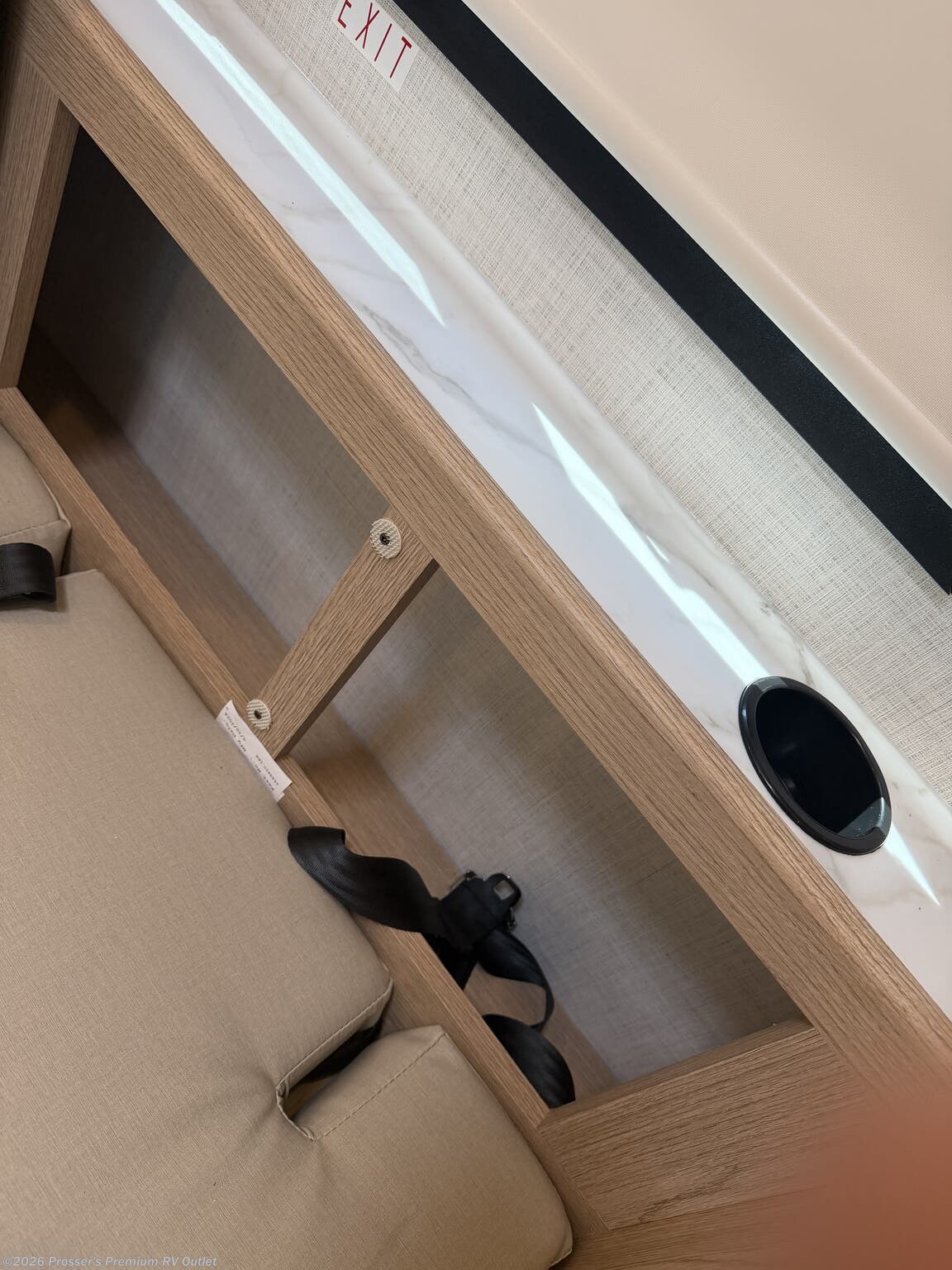

The compact wet bath combines the shower and toilet into one space. This saves valuable floor area while still giving you the privacy and convenience of an onboard bathroom—an important advantage during travel days and when camping without full facilities. Thor lists the 19Z with sleeping capacity for three and four designated seat-belt positions.

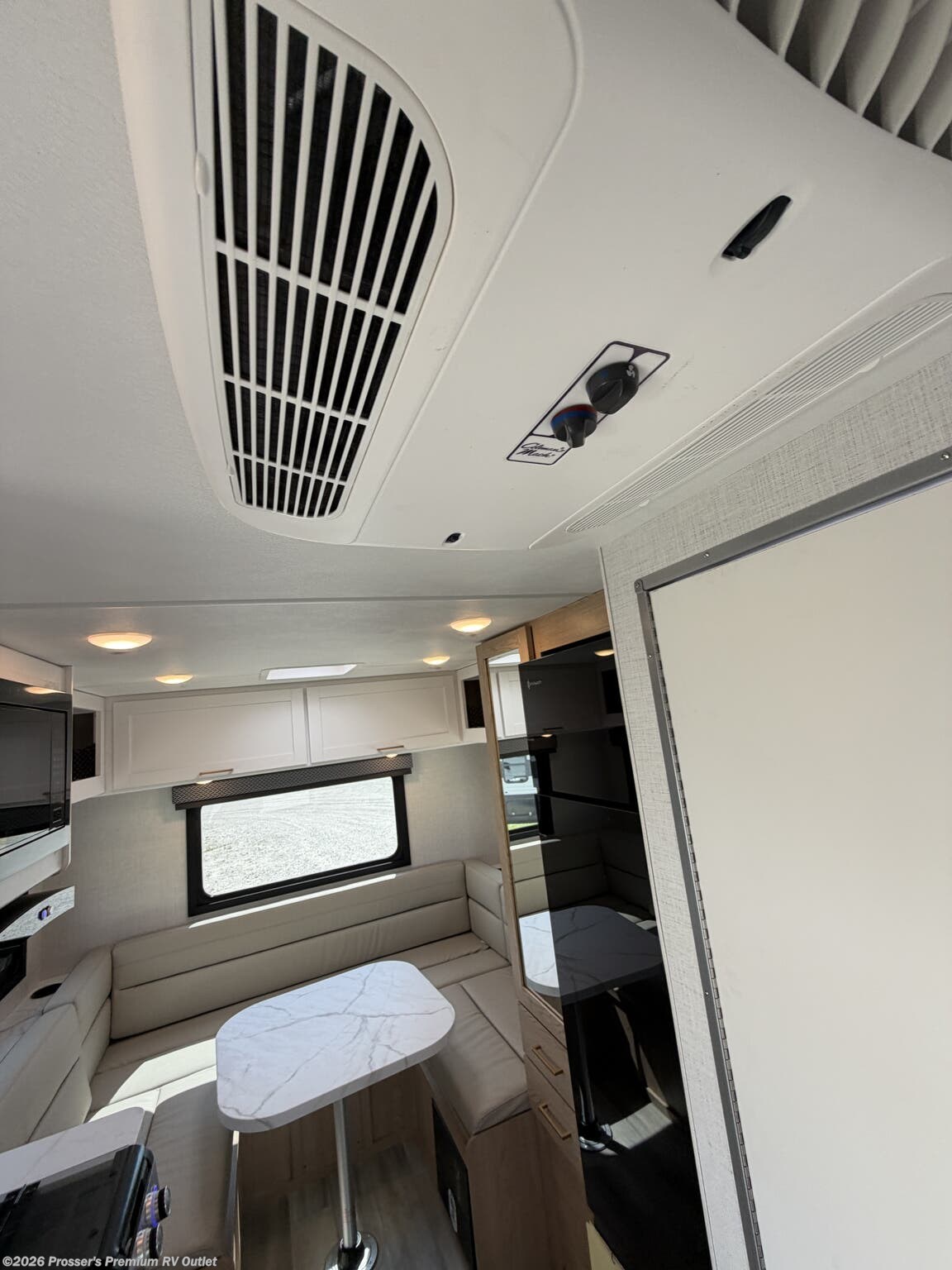

Interior Living

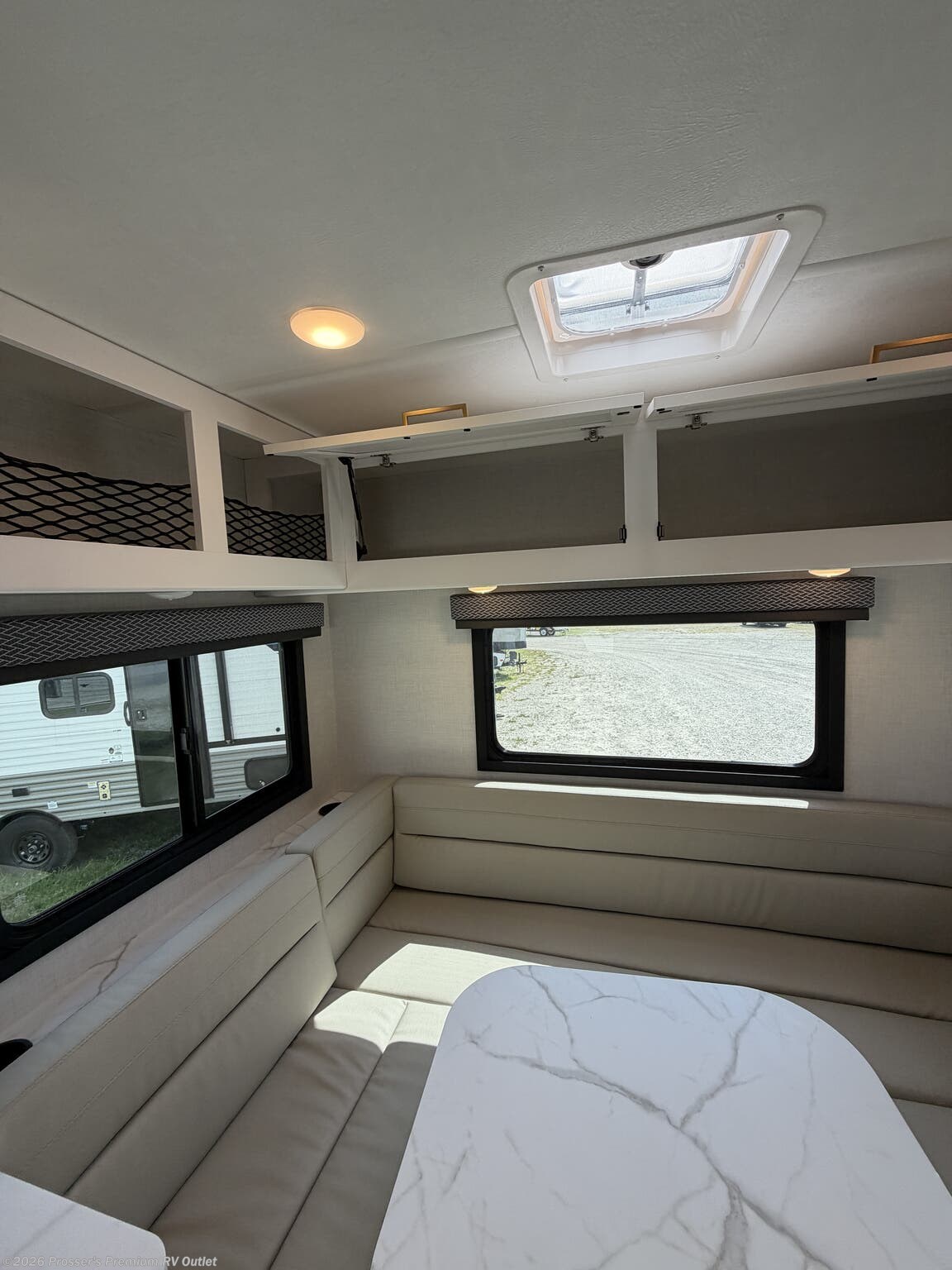

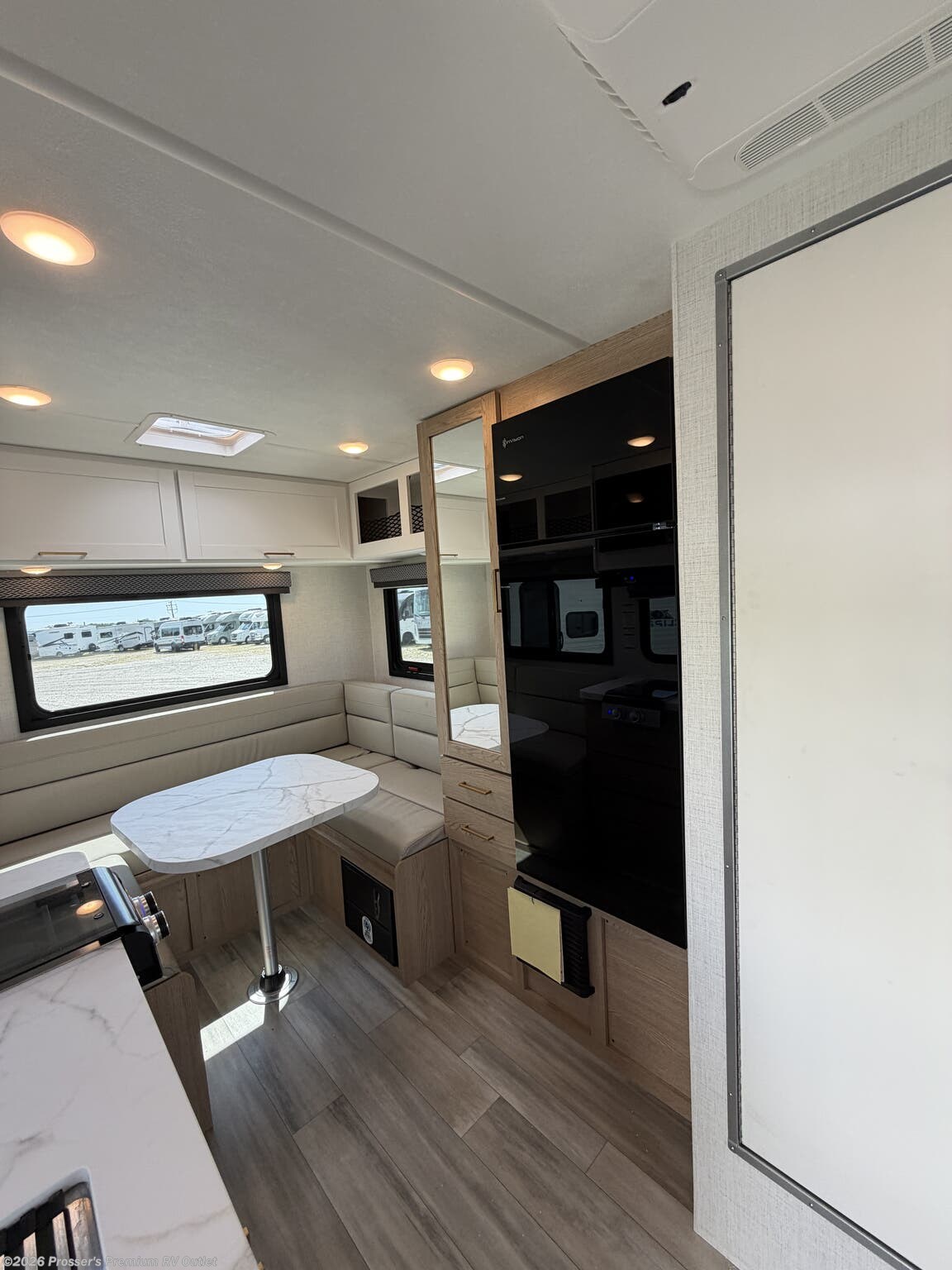

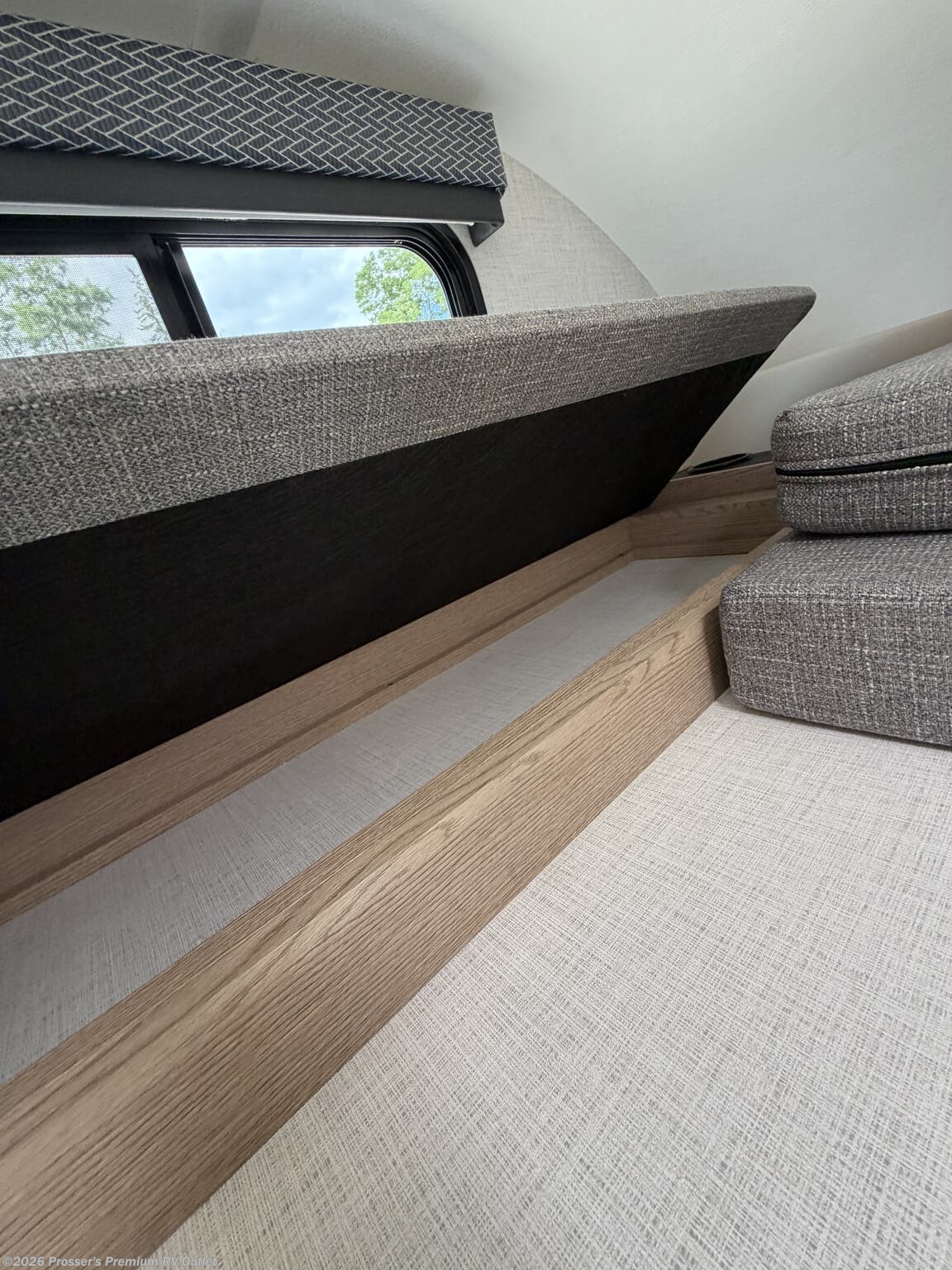

The rear dinette creates a comfortable destination once you arrive at camp. The single-pedestal table can be used for meals, games or remote work, while the surrounding seating makes good use of the coach’s available width.

The interior also includes:

• 80-inch ceiling height
• Residential vinyl flooring
• Premium privacy roller shades
• LED lighting
• Soft-close, full-extension drawer guides
• USB charging center
• 12-volt CPAP outlet

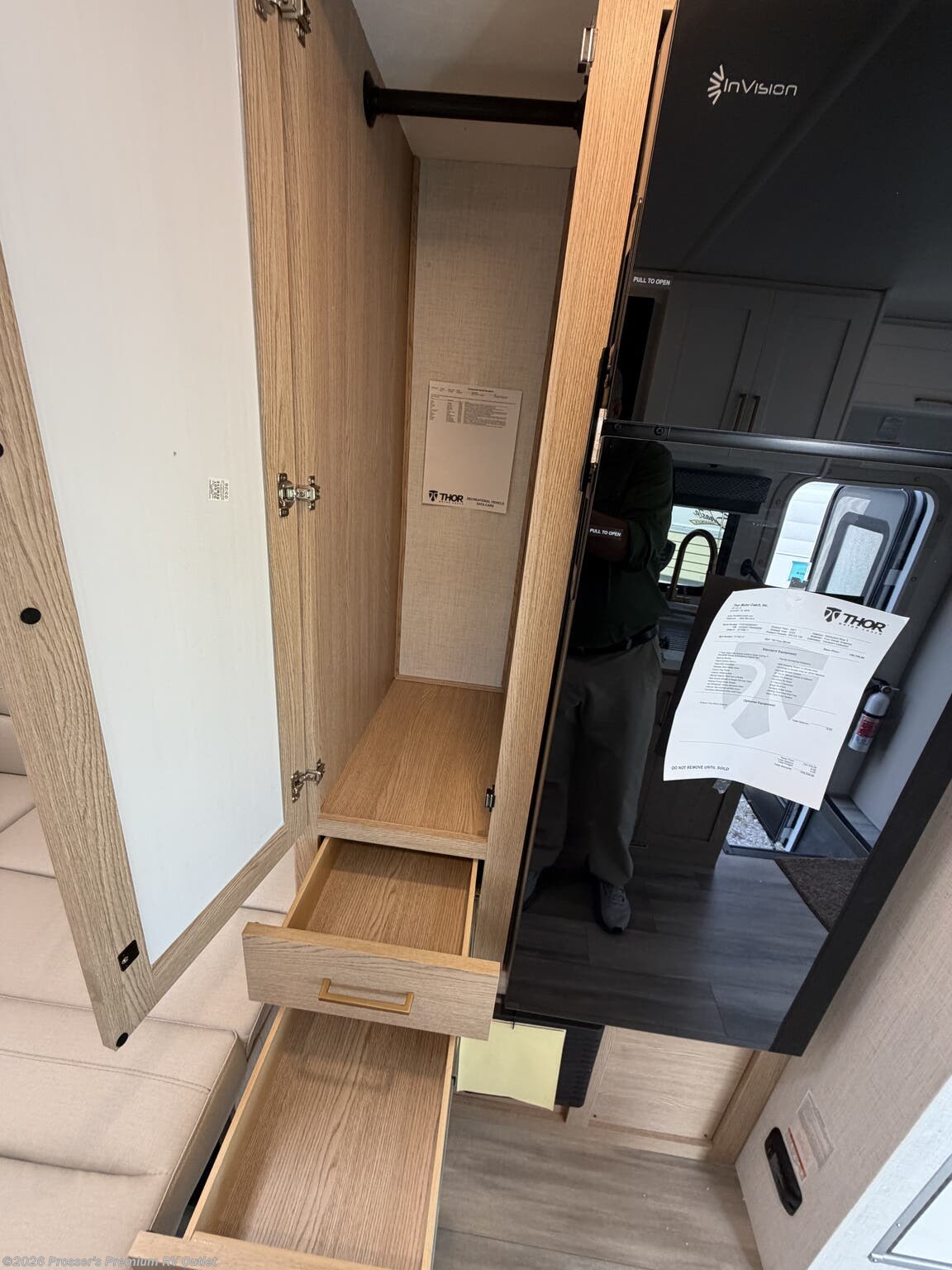

• Wardrobe storage
• Cab-over bunk with telescoping ladder and cup holders

These details make the 19Z feel more like a thoughtfully designed small motorhome than a stripped-down entry-level coach.

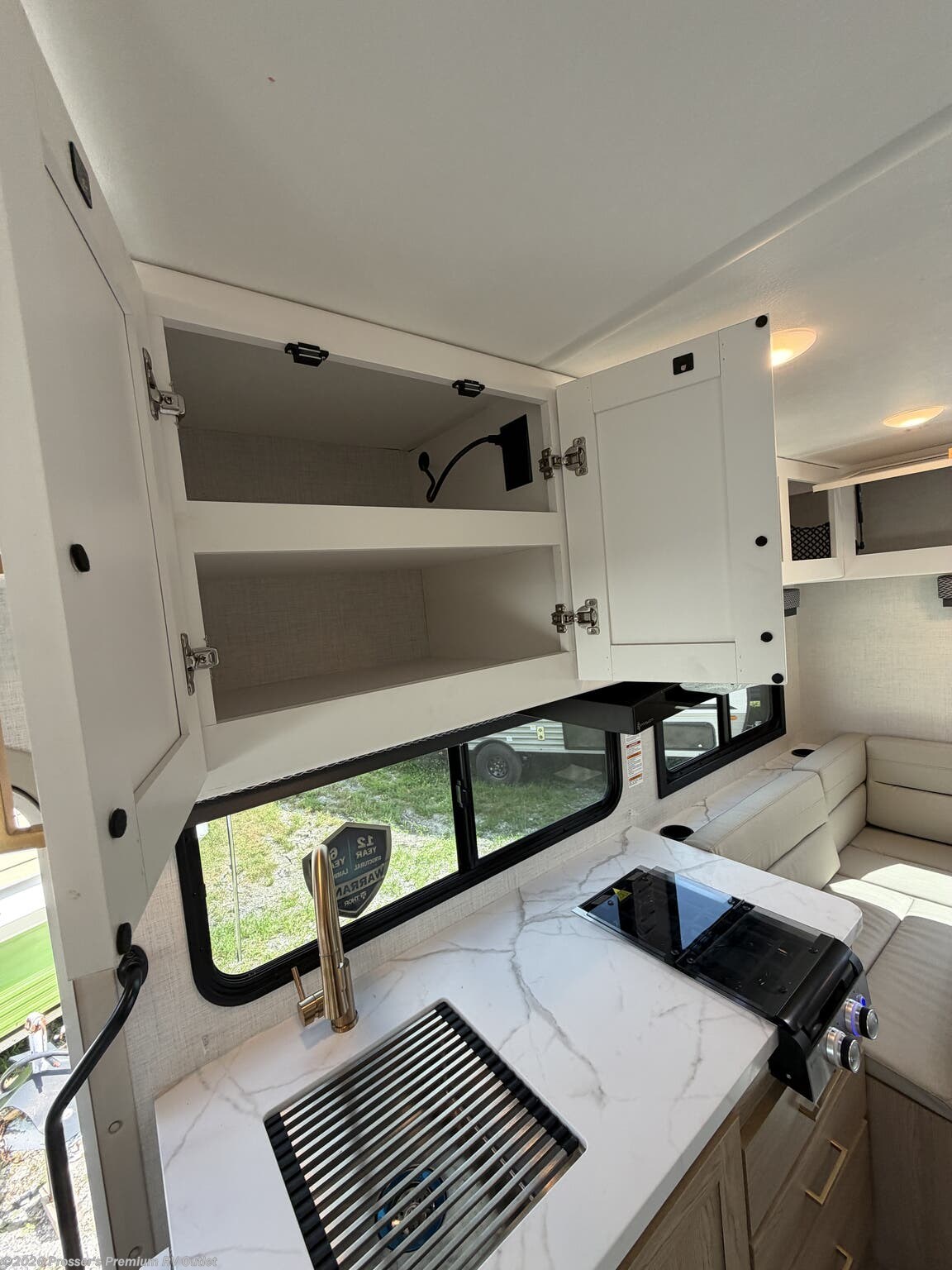

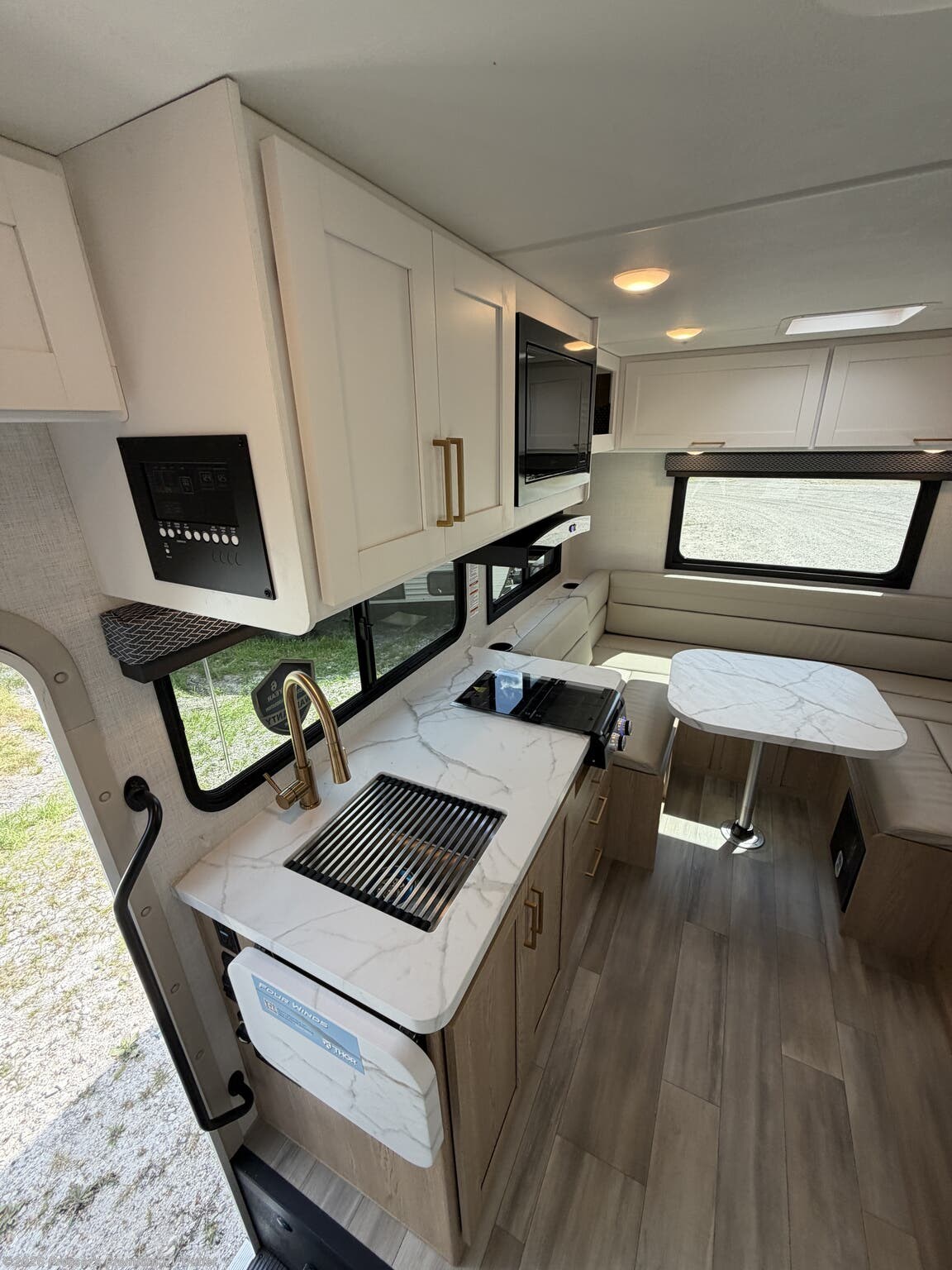

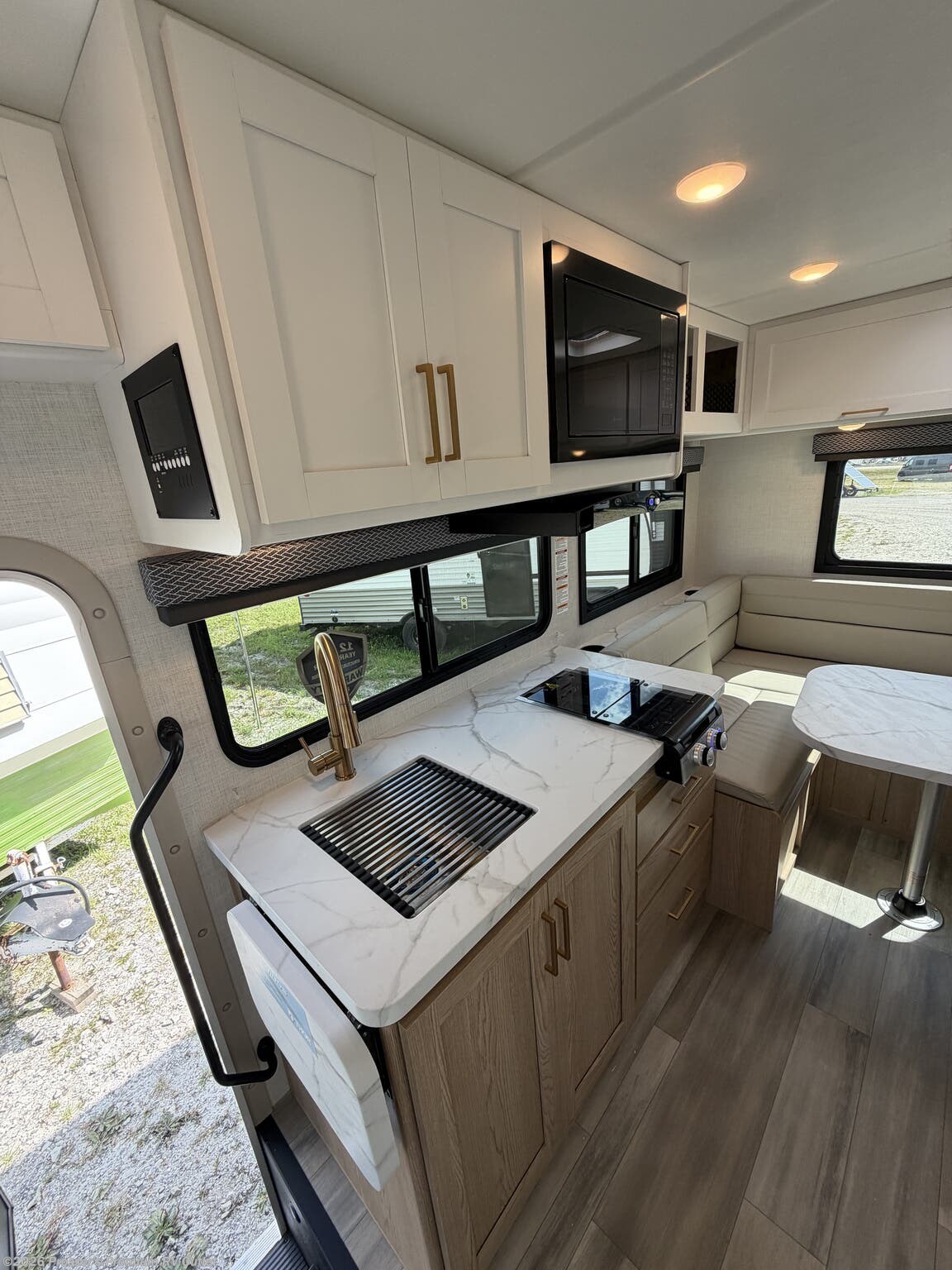

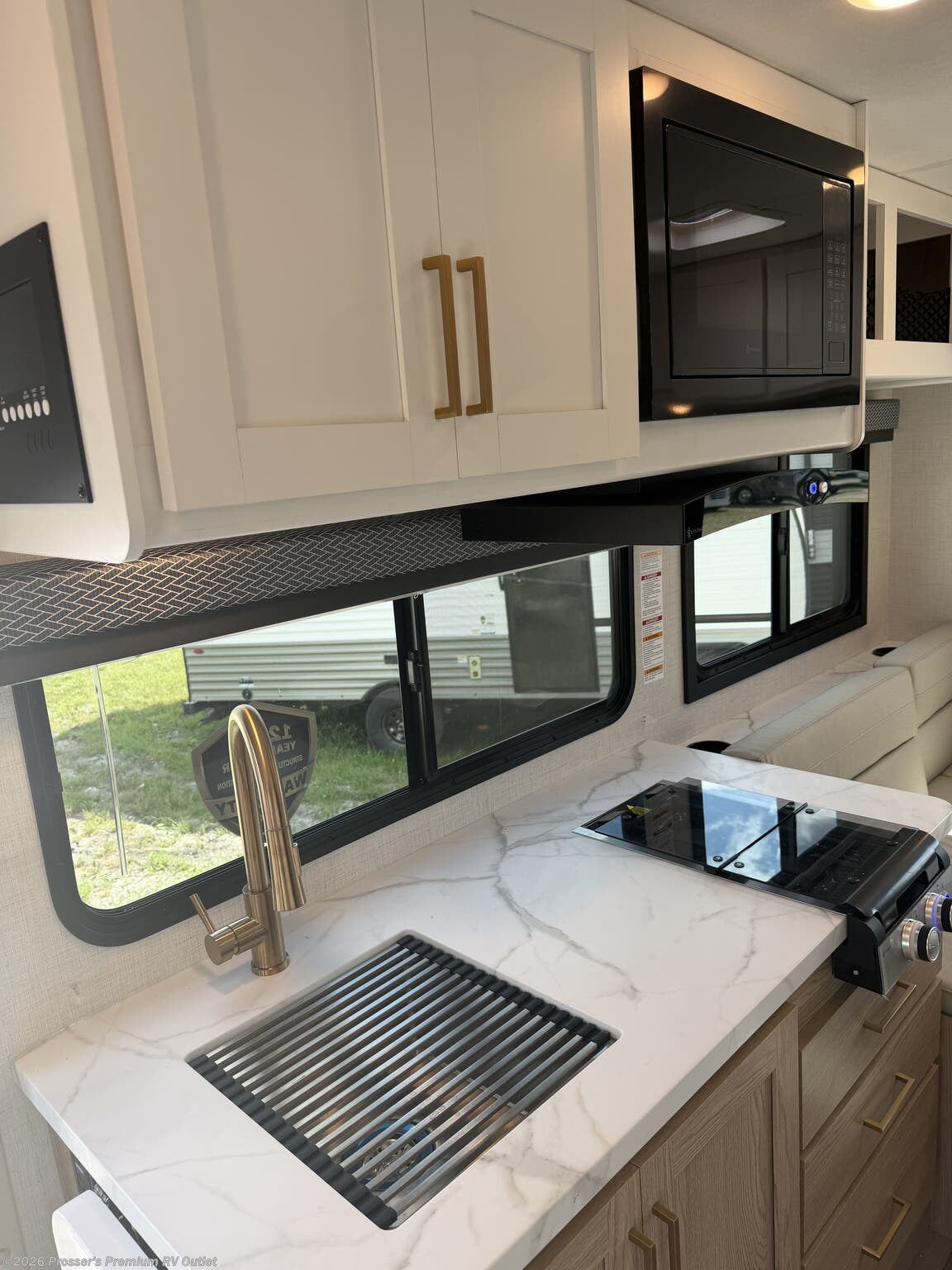

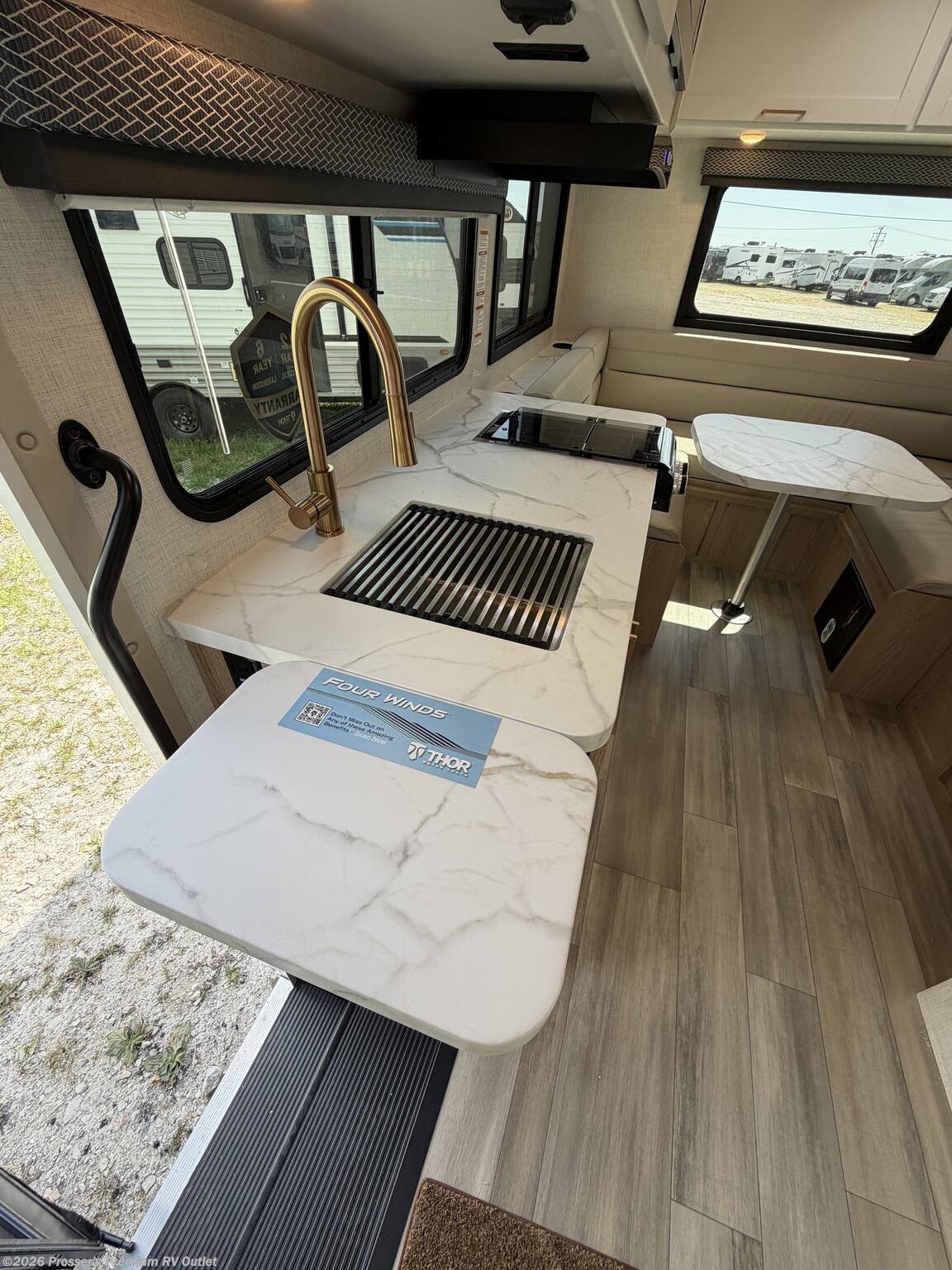

Compact Kitchen with Modern Appliances

The kitchen is arranged for practical meal preparation without consuming unnecessary living space. Equipment includes:

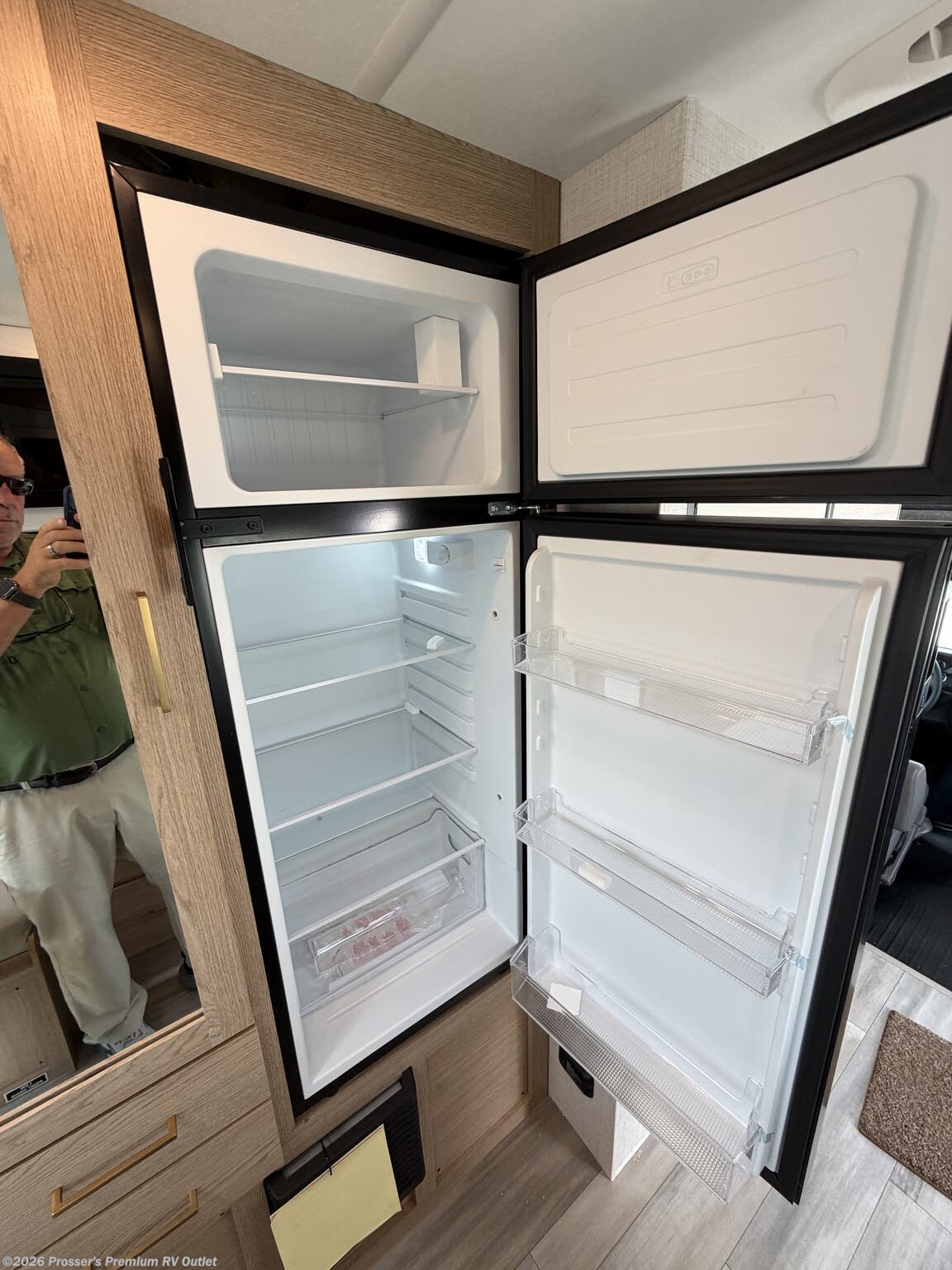

• 12-volt refrigerator with automatic generator start

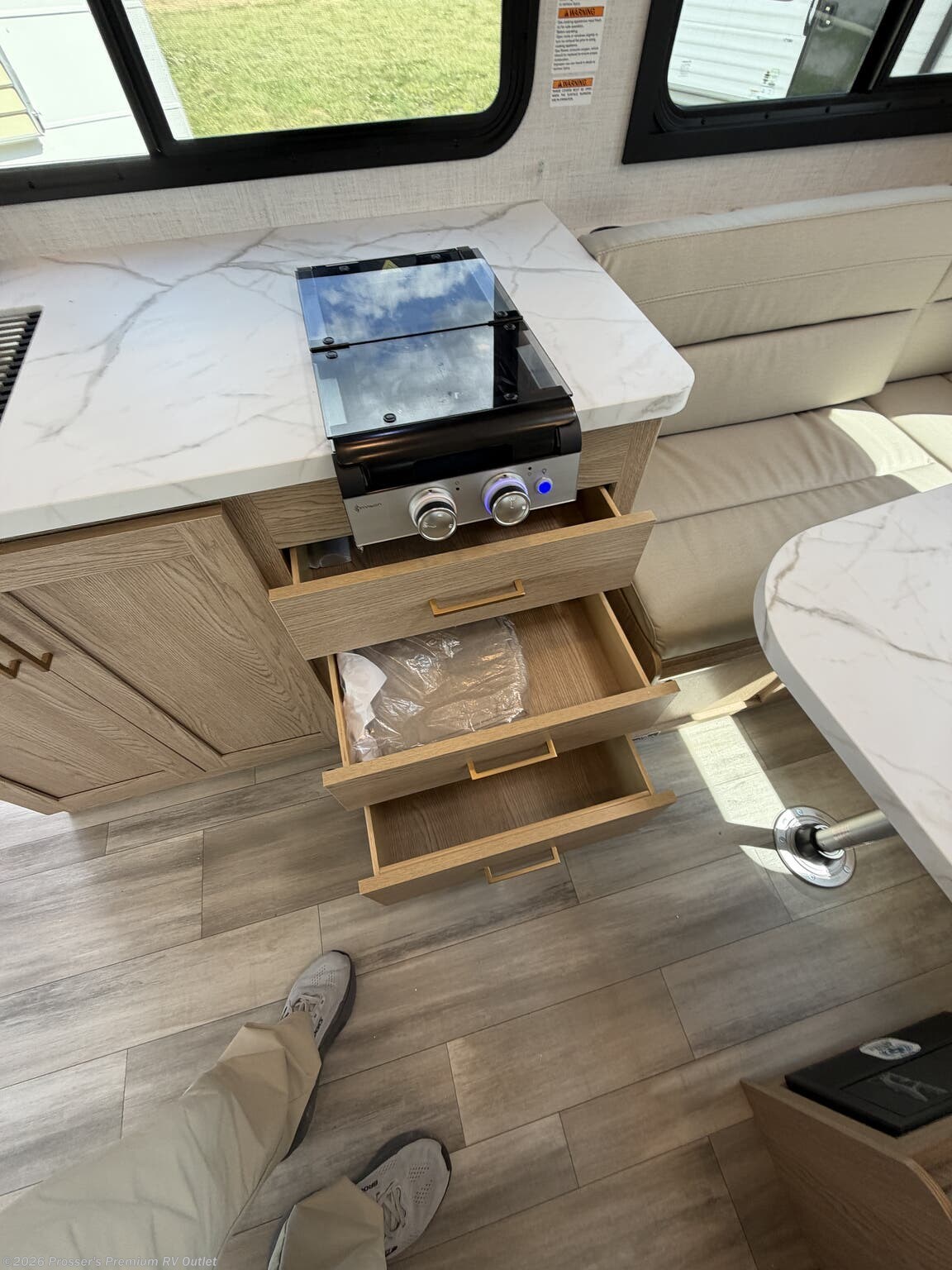

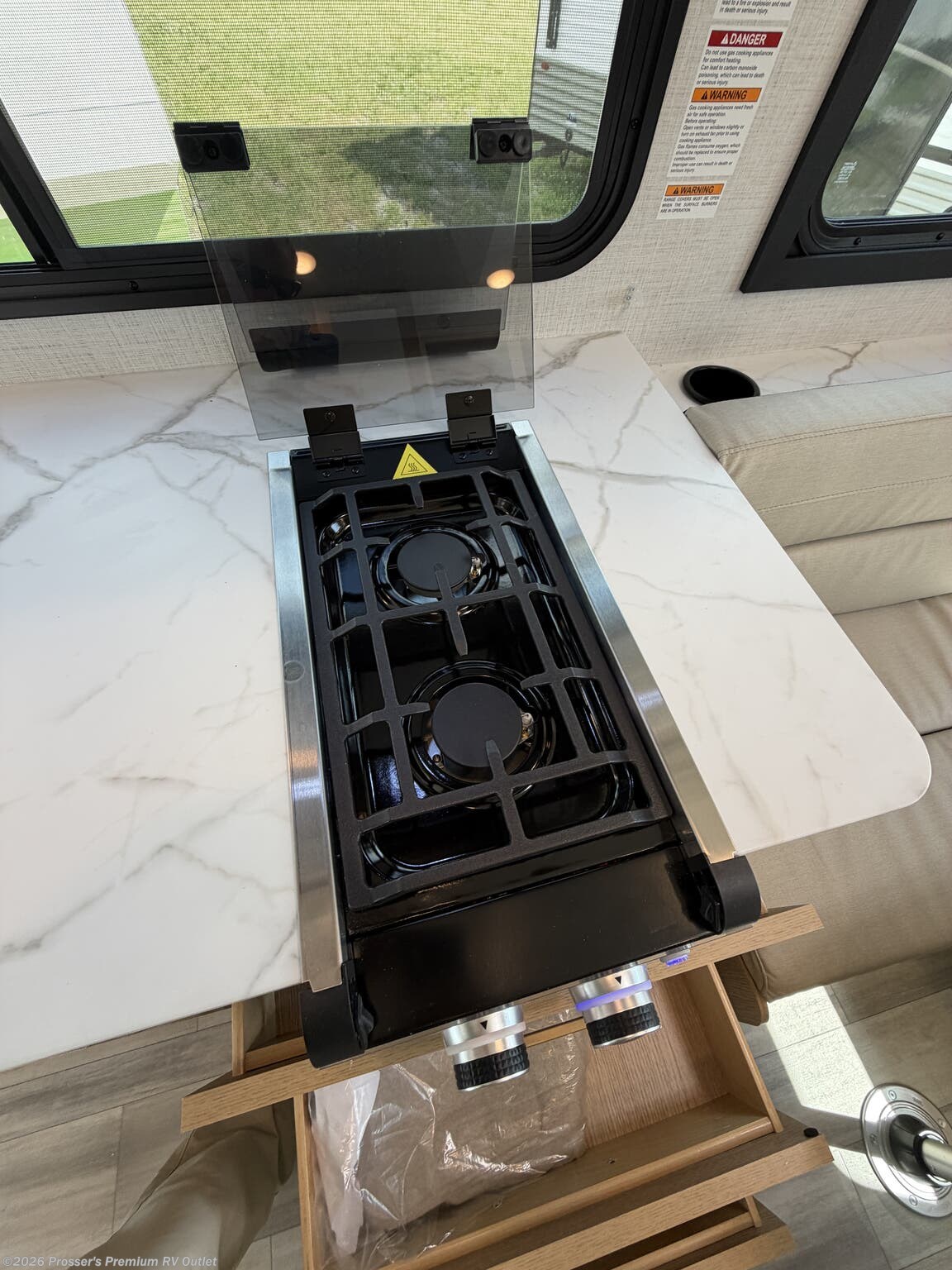

• Two-burner LP cooktop with glass cover
• Convection microwave with air-fryer function

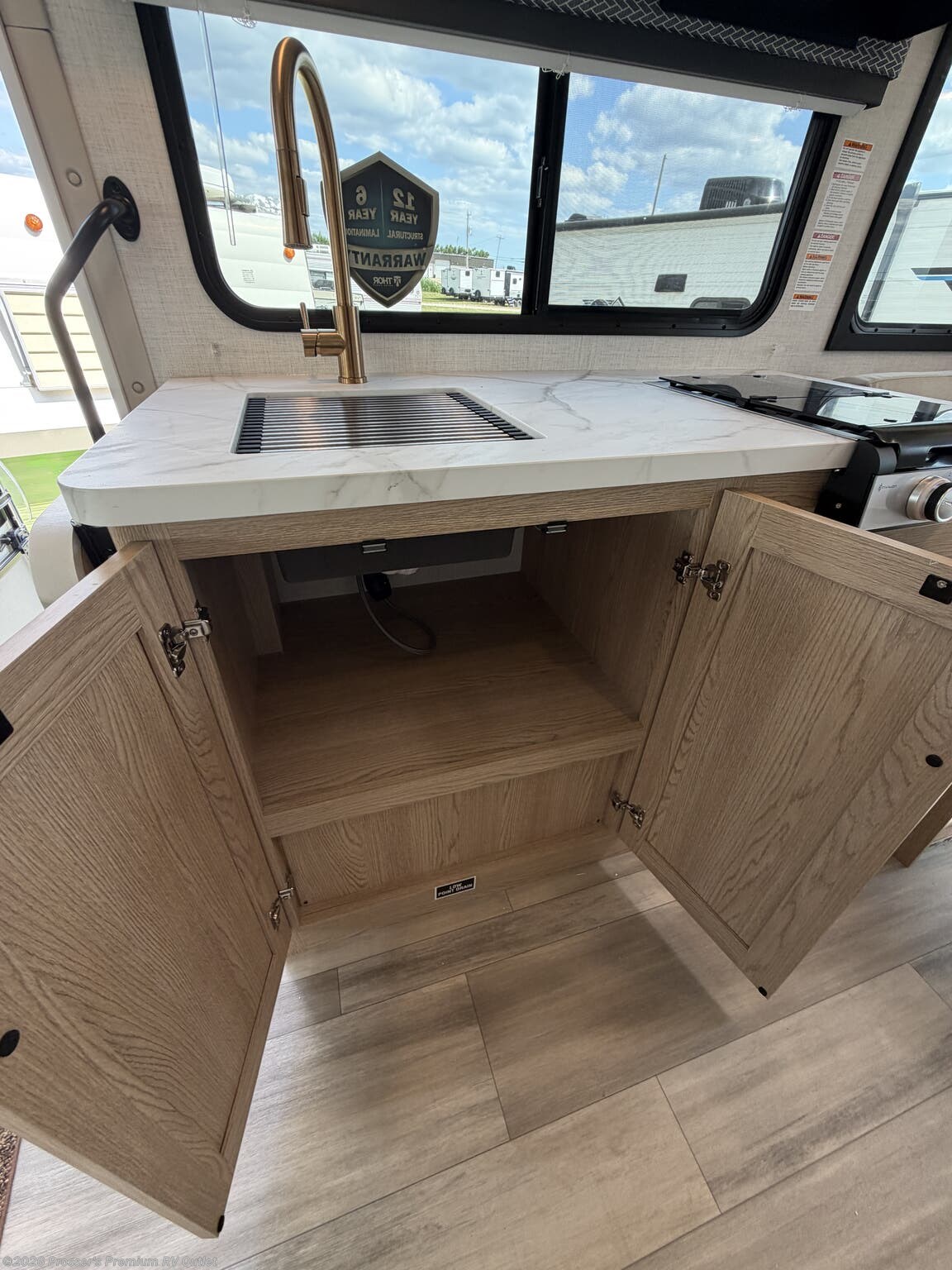

• Large single-bowl stainless-steel sink
• Pull-down faucet
• Removable stainless-steel sink cover
• Flip-up countertop extension
• Range hood with task lighting
• Kitchen window behind the sink and cooktop

The sink cover and flip-up extension are especially useful in a motorhome of this size because they create additional preparation space when needed and fold away when you are finished.

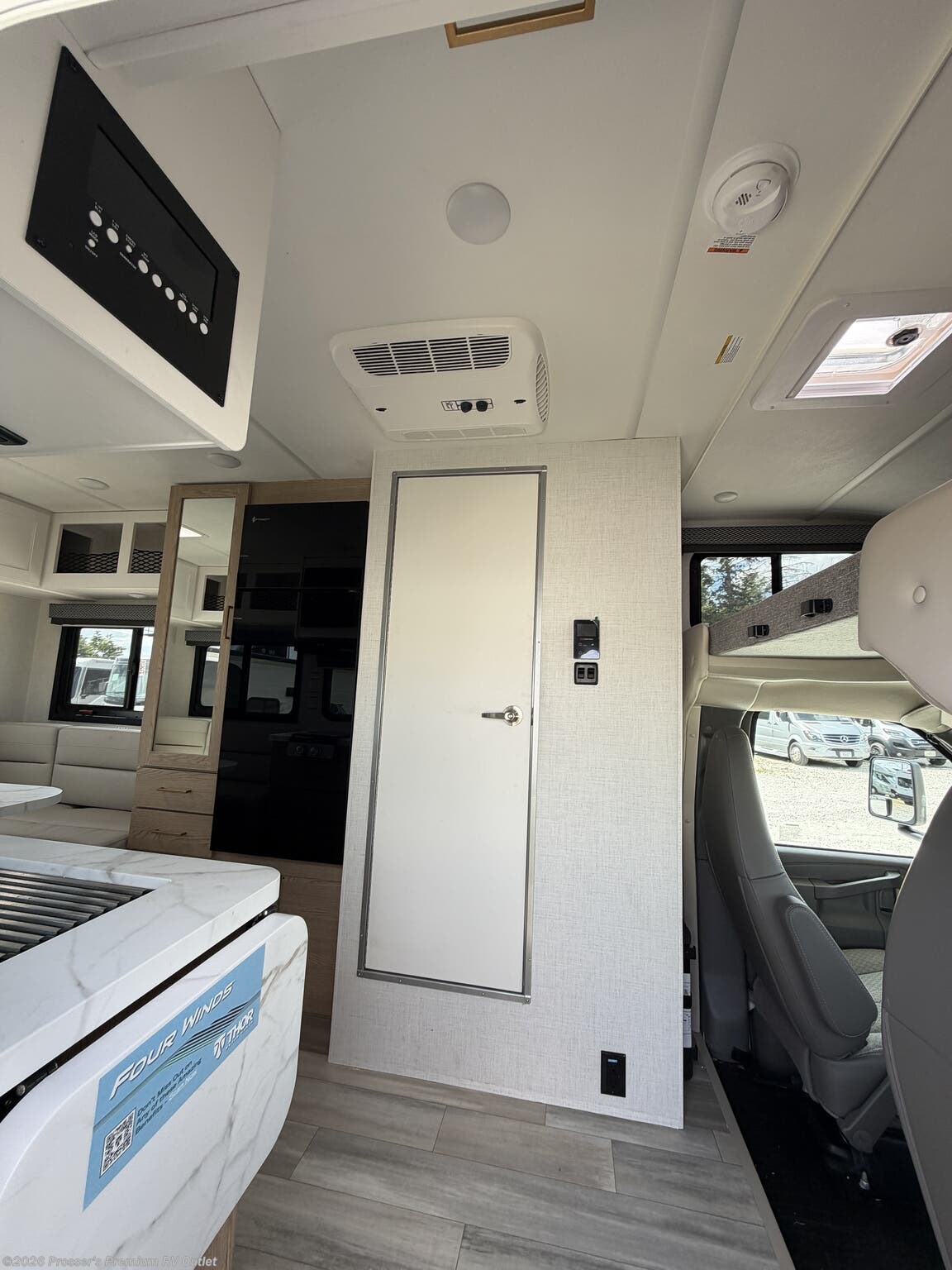

Bathroom and Sleeping

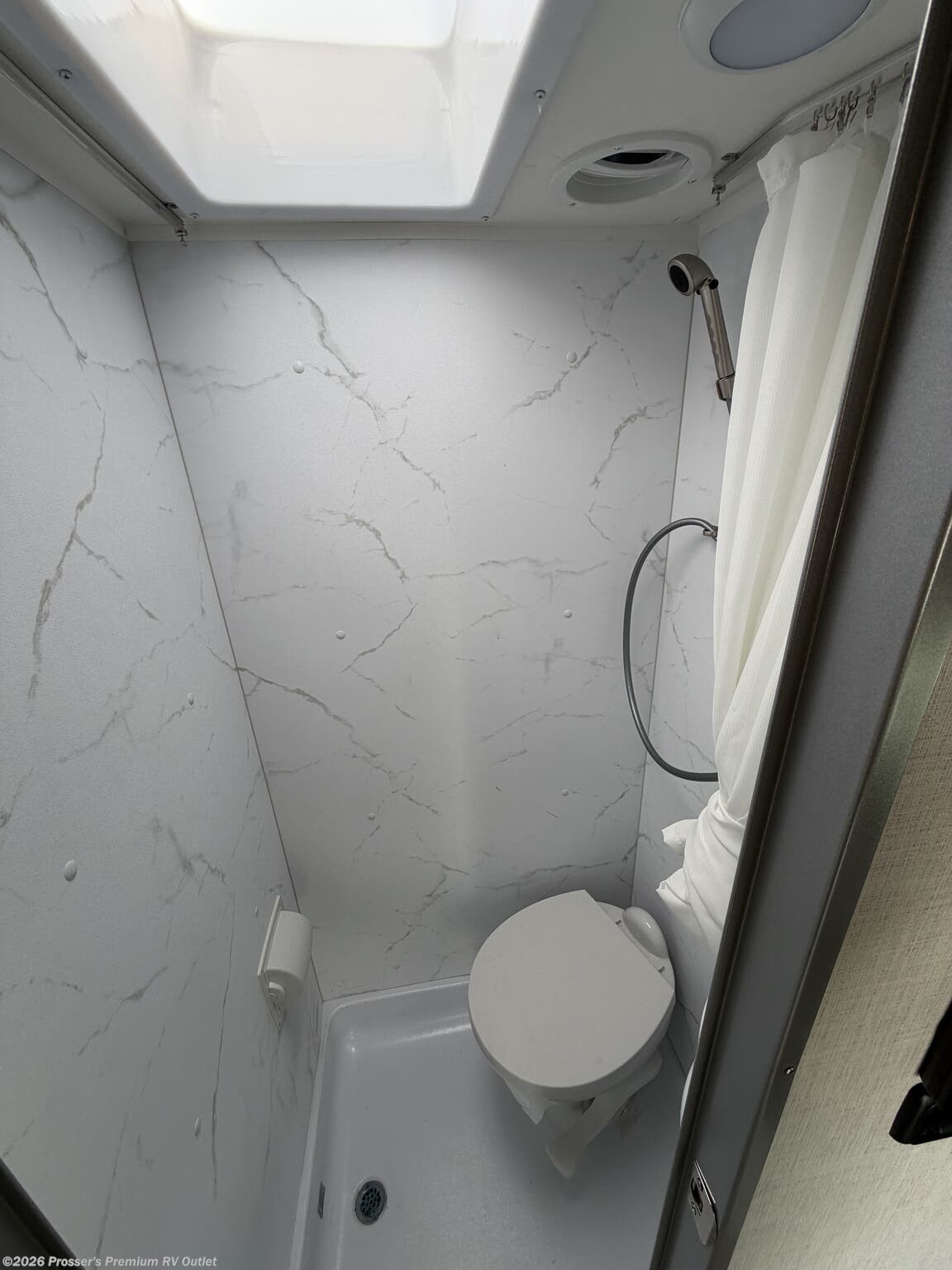

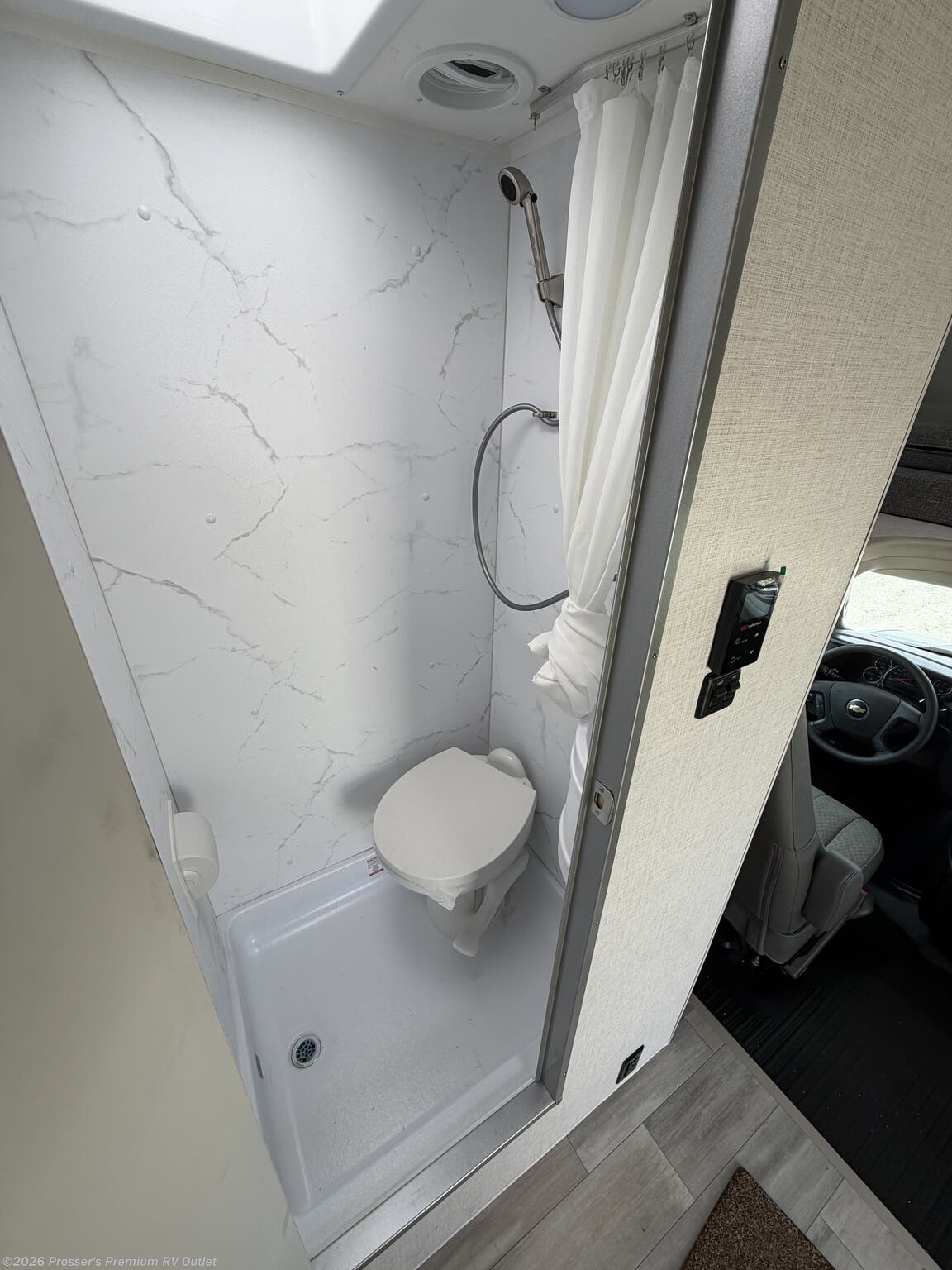

The wet bath includes a foot-flush toilet, shower, upgraded shower curtain, power vent, robe hook and skylight. Its compact arrangement preserves more room for the dinette, kitchen and storage while still providing the independence of a private onboard bathroom.

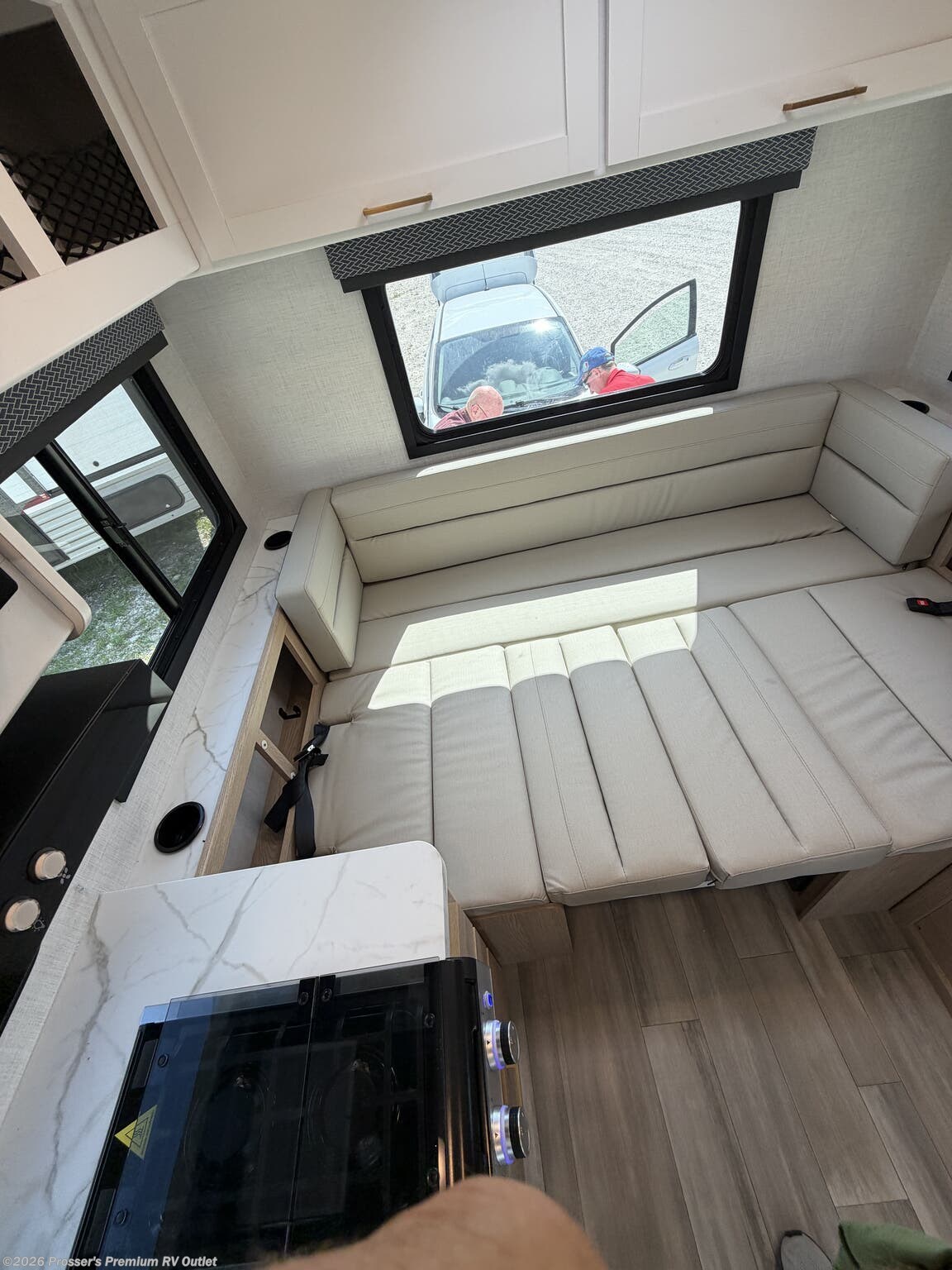

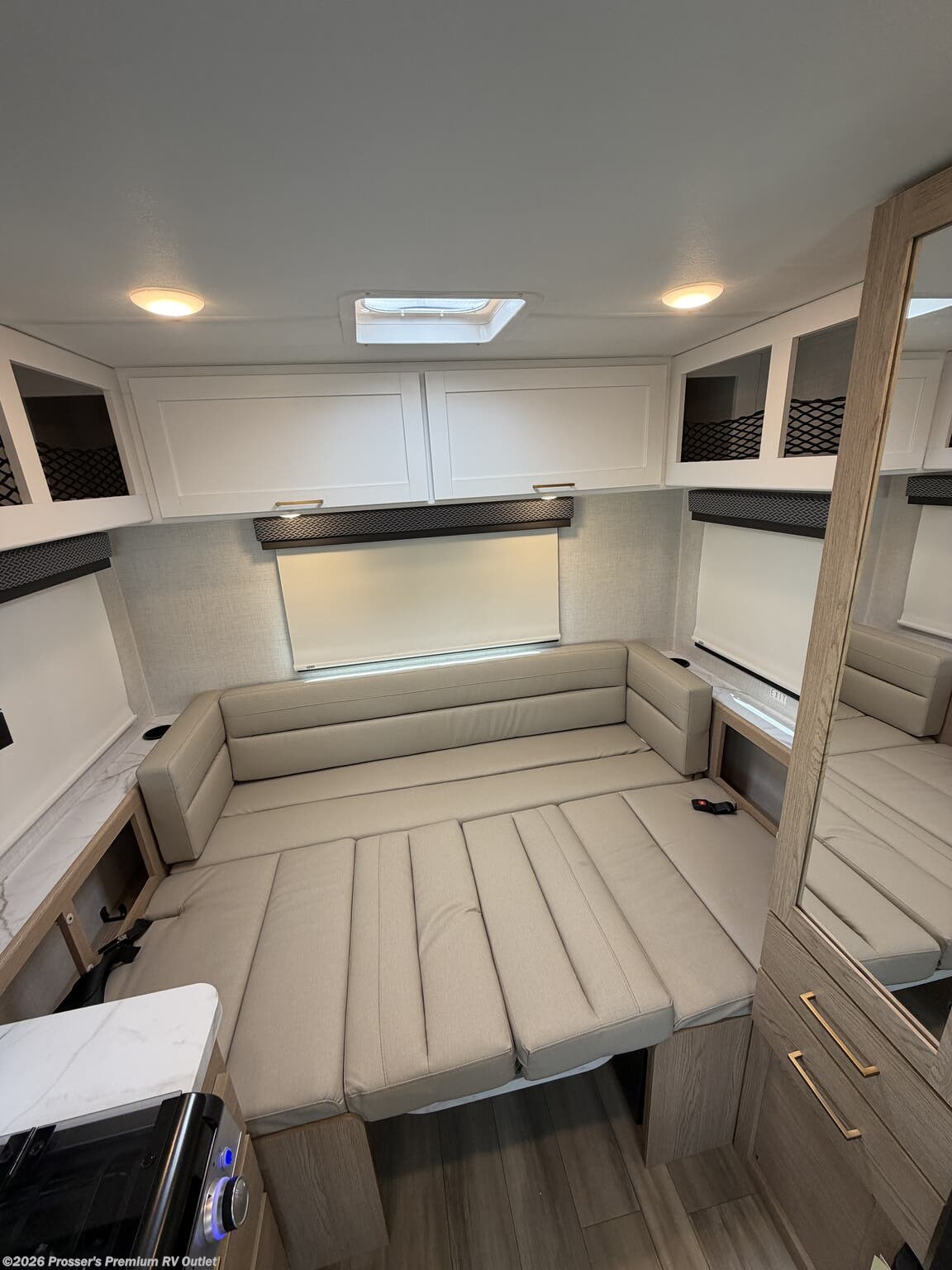

Sleeping accommodations include the convertible rear U-dinette and cab-over bunk. This arrangement works well for a couple, a solo traveler who wants extra space, or two adults traveling with a child or occasional guest.

Entertainment and Connectivity

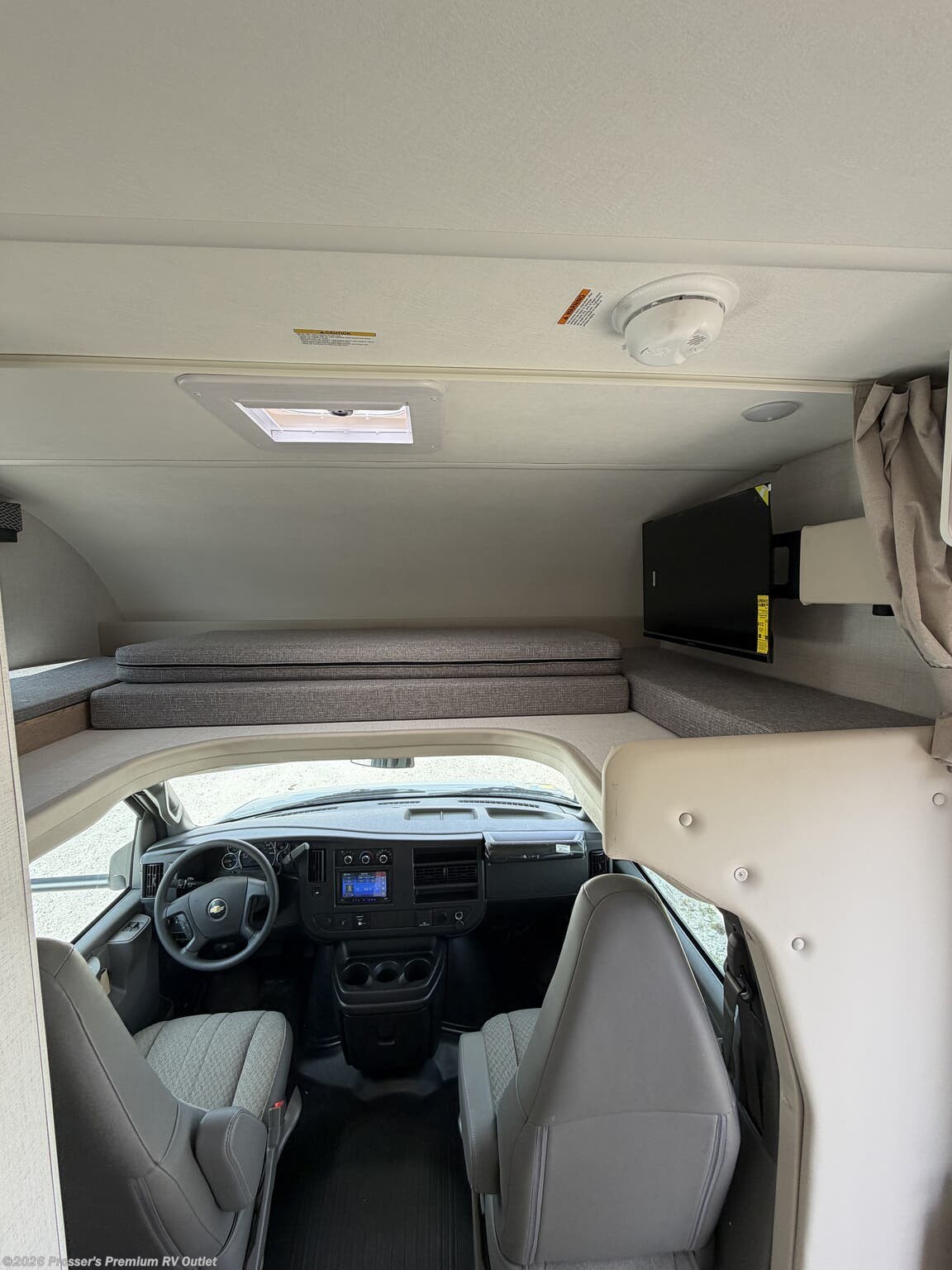

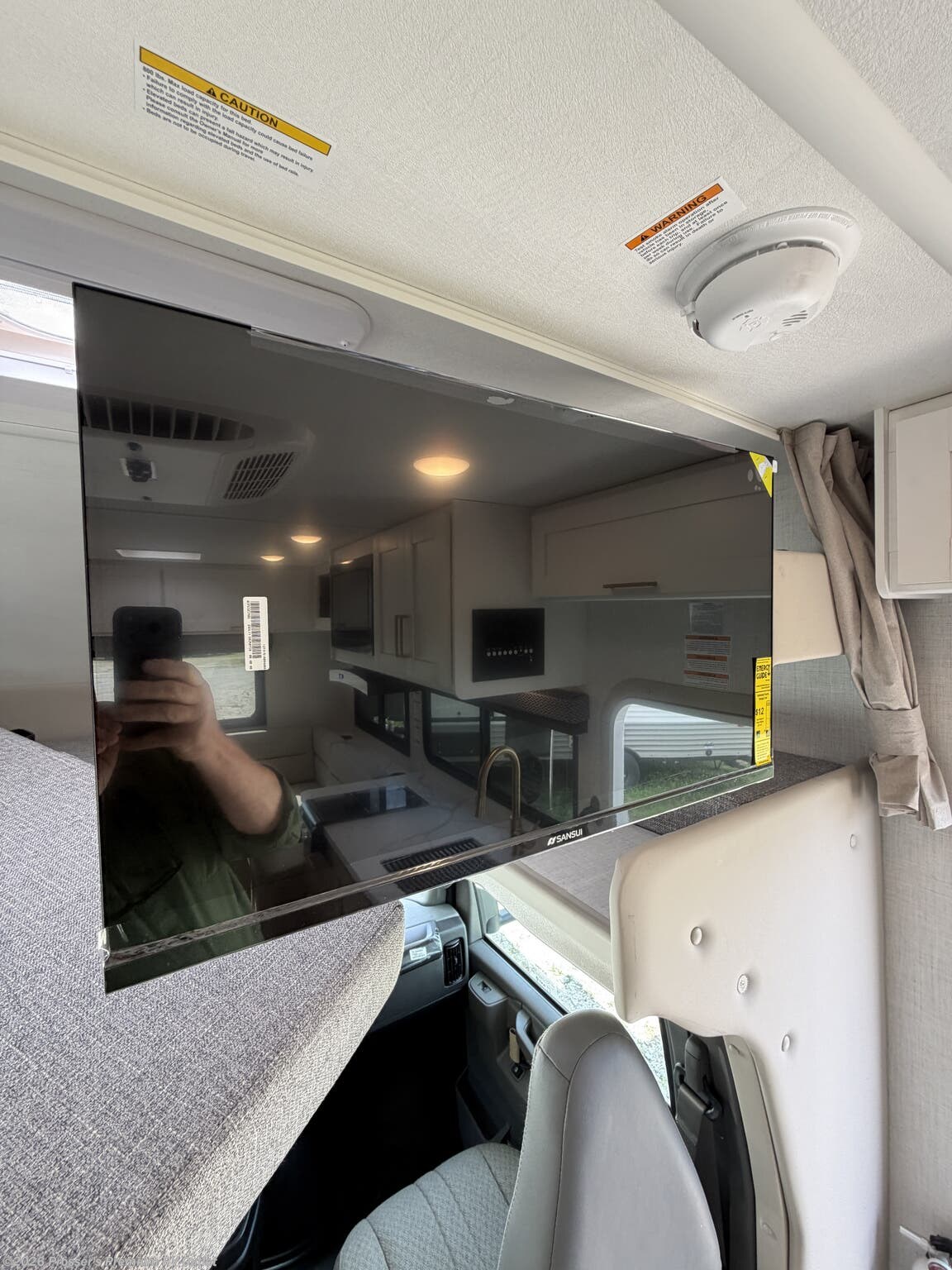

A 32-inch Smart TV is mounted on a manual swivel in the cab-over area so it can be positioned for easier viewing. The coach also includes a digital television antenna and a roof backer for future satellite equipment.

In the cab, a seven-inch touchscreen radio provides Bluetooth, Apple CarPlay, Android Auto and SiriusXM readiness. A backup monitor helps the driver see behind the motorhome when maneuvering into a campsite or parking space.

Power, Climate and Camping Independence

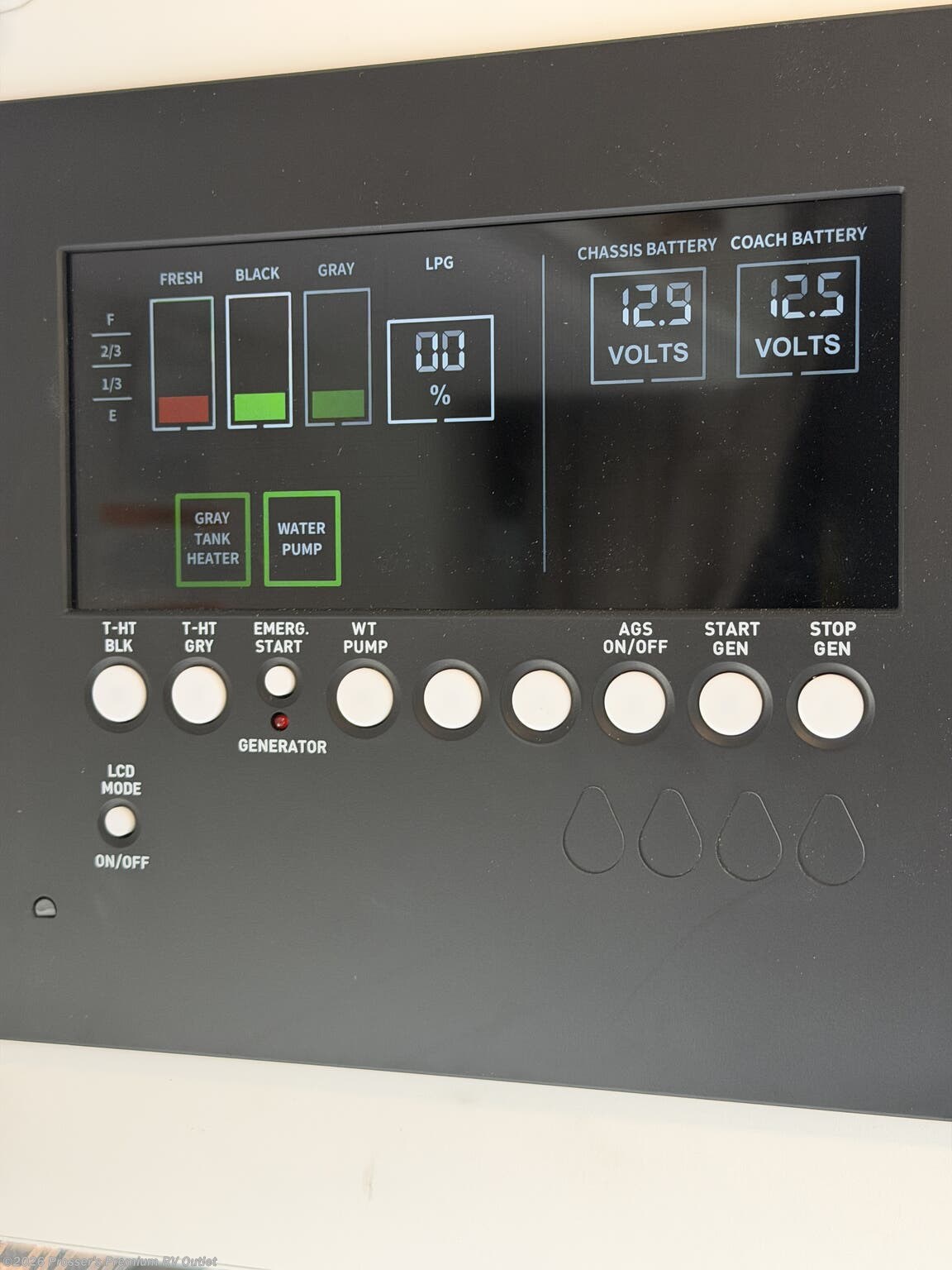

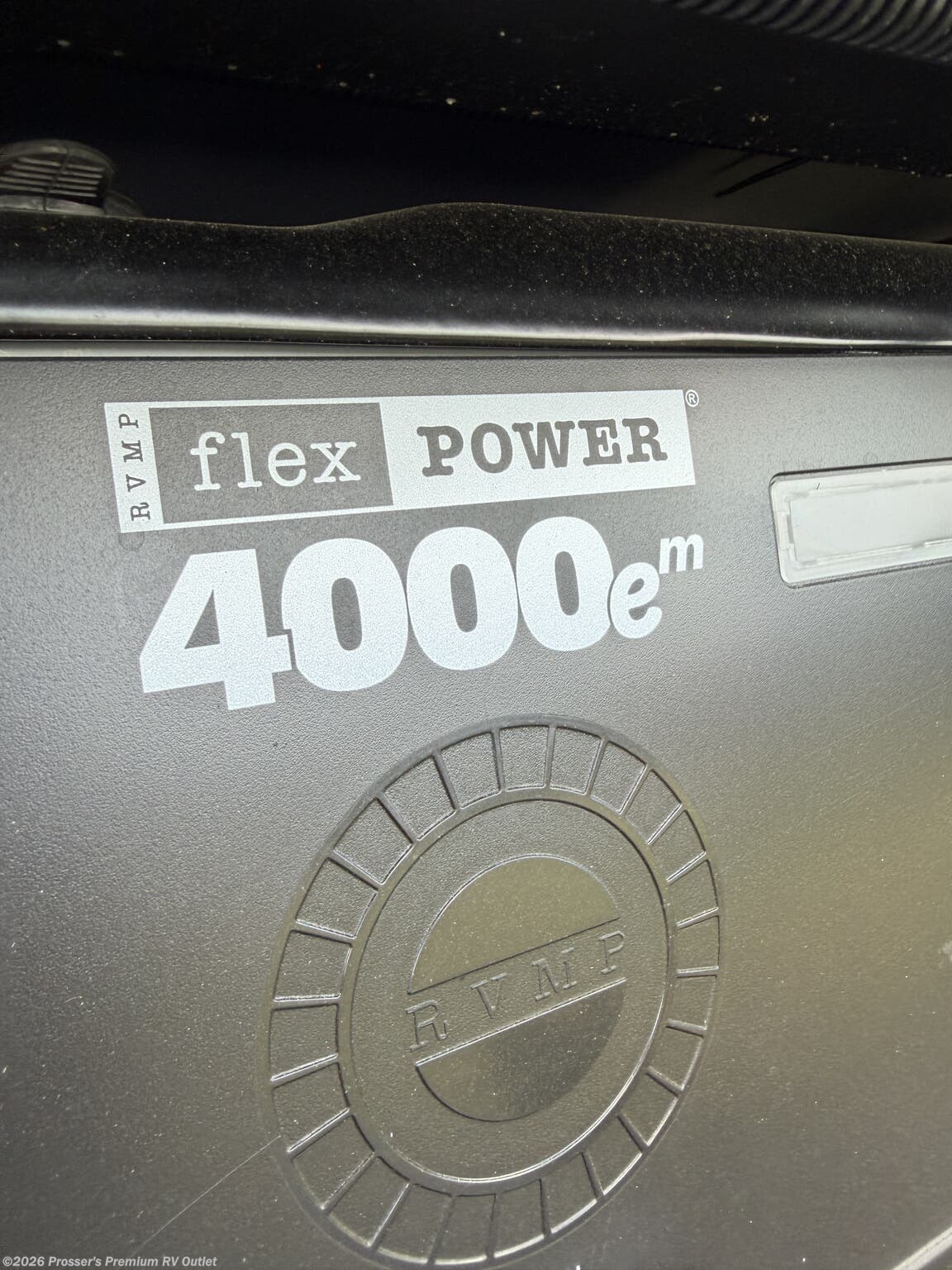

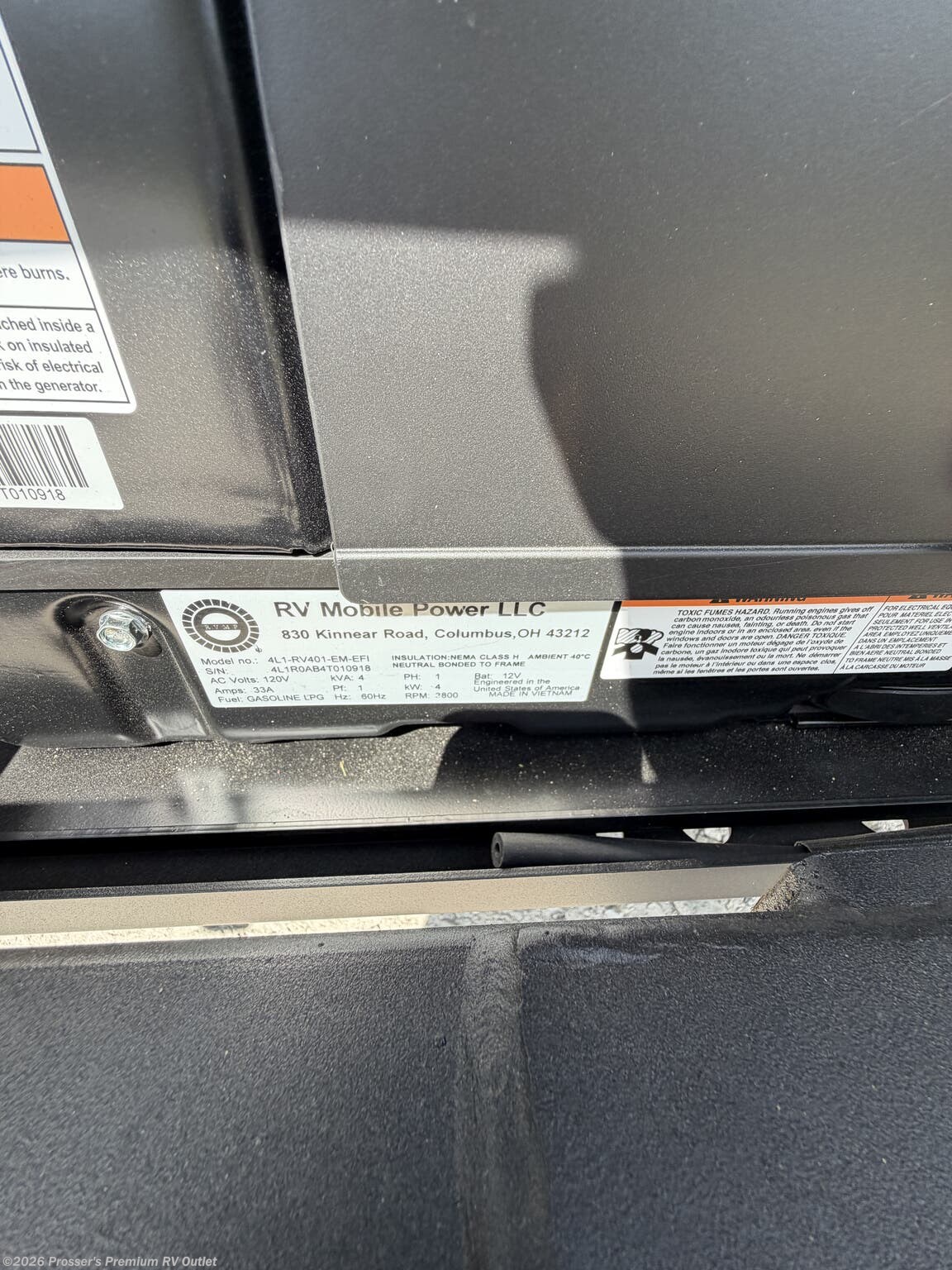

The Four Winds 19Z includes a 4.0 kW generator capable of operating on gasoline or LP gas, giving you onboard electrical power when shore power is unavailable. An automatic transfer switch simplifies the transition between generator and campground power.

Additional systems include:

• 13,500 BTU roof air conditioner
• 30-amp electrical service

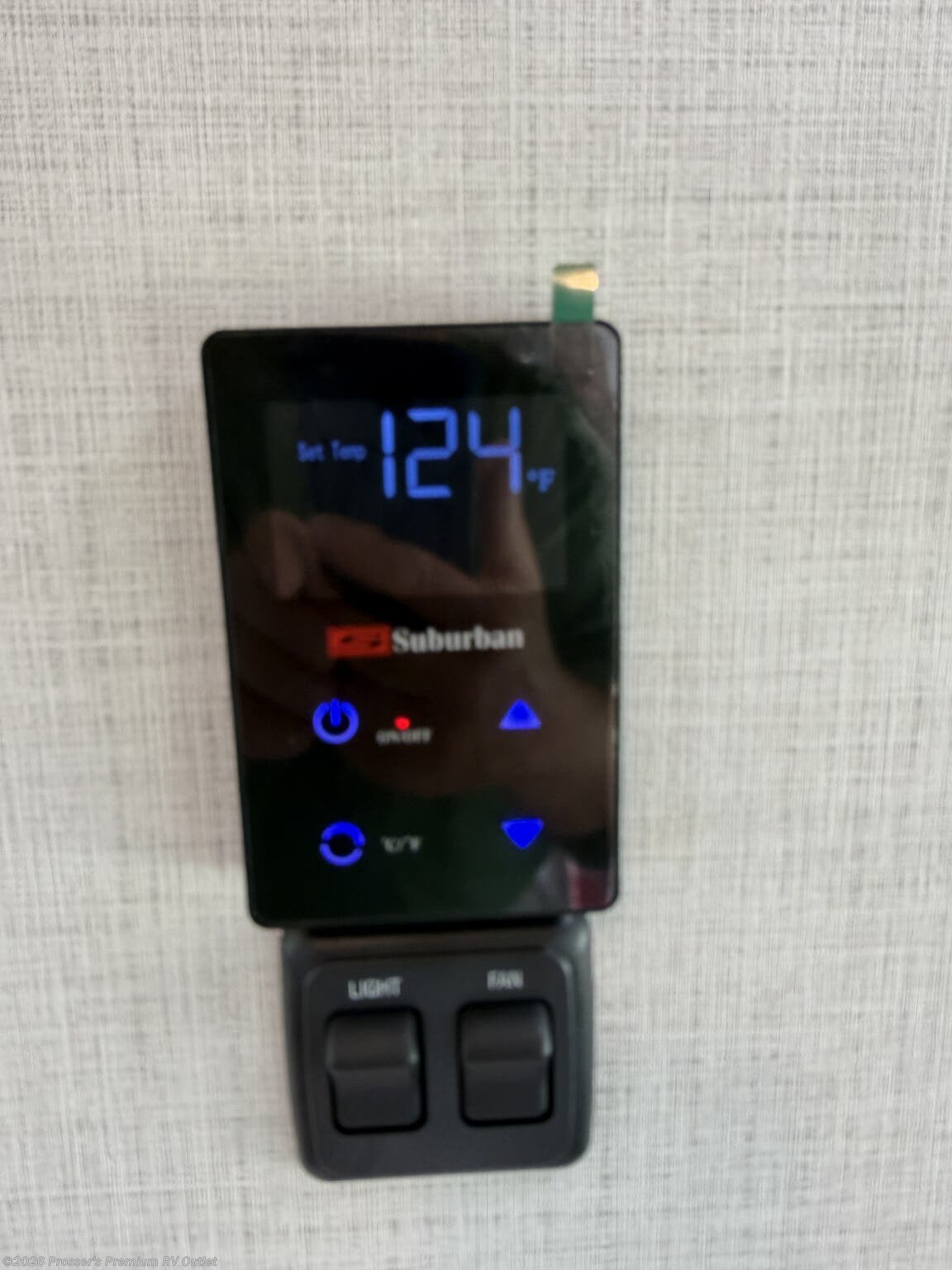

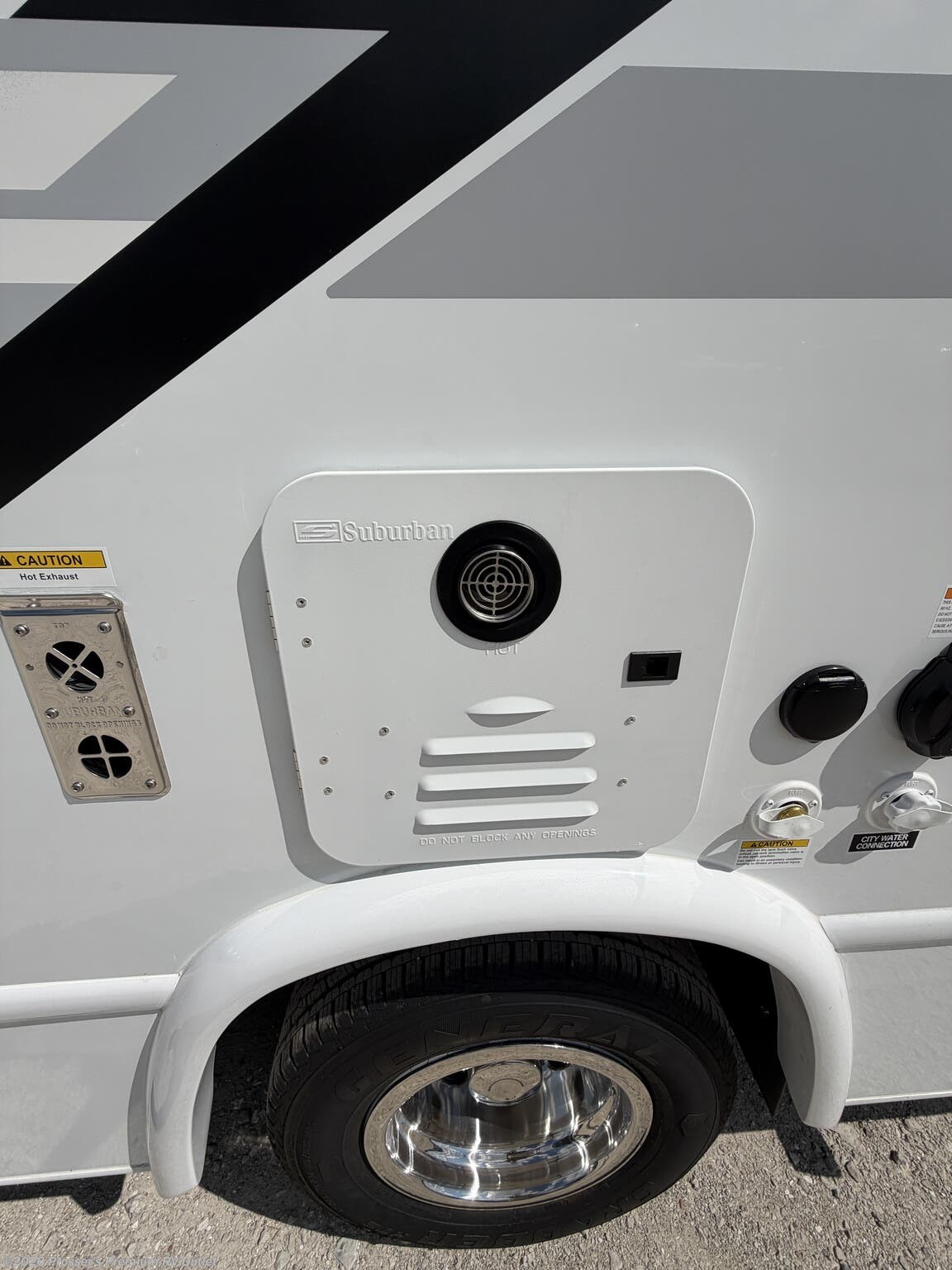

• Tankless water heater

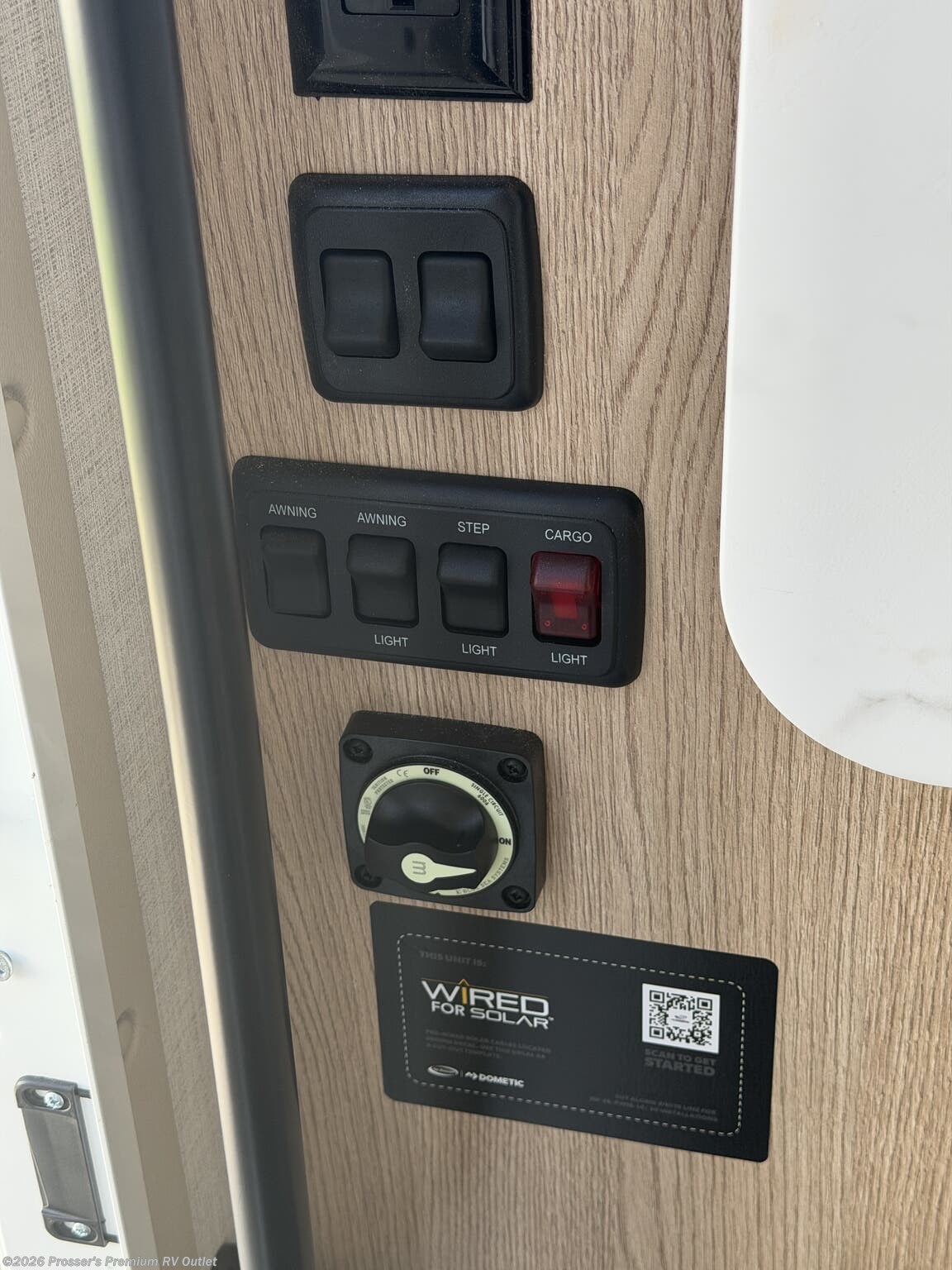

• Battery disconnect
• Black-tank flush
• Holding-tank heat-pad preparation
• Roof solar preparation
• Camp-side electrical outlet with USB ports

The coach is solar-prepared, but the manufacturer’s current specifications do not identify a factory-installed solar panel as standard equipment. That distinction should be confirmed from the window sticker before advertising this particular unit as having an installed panel.

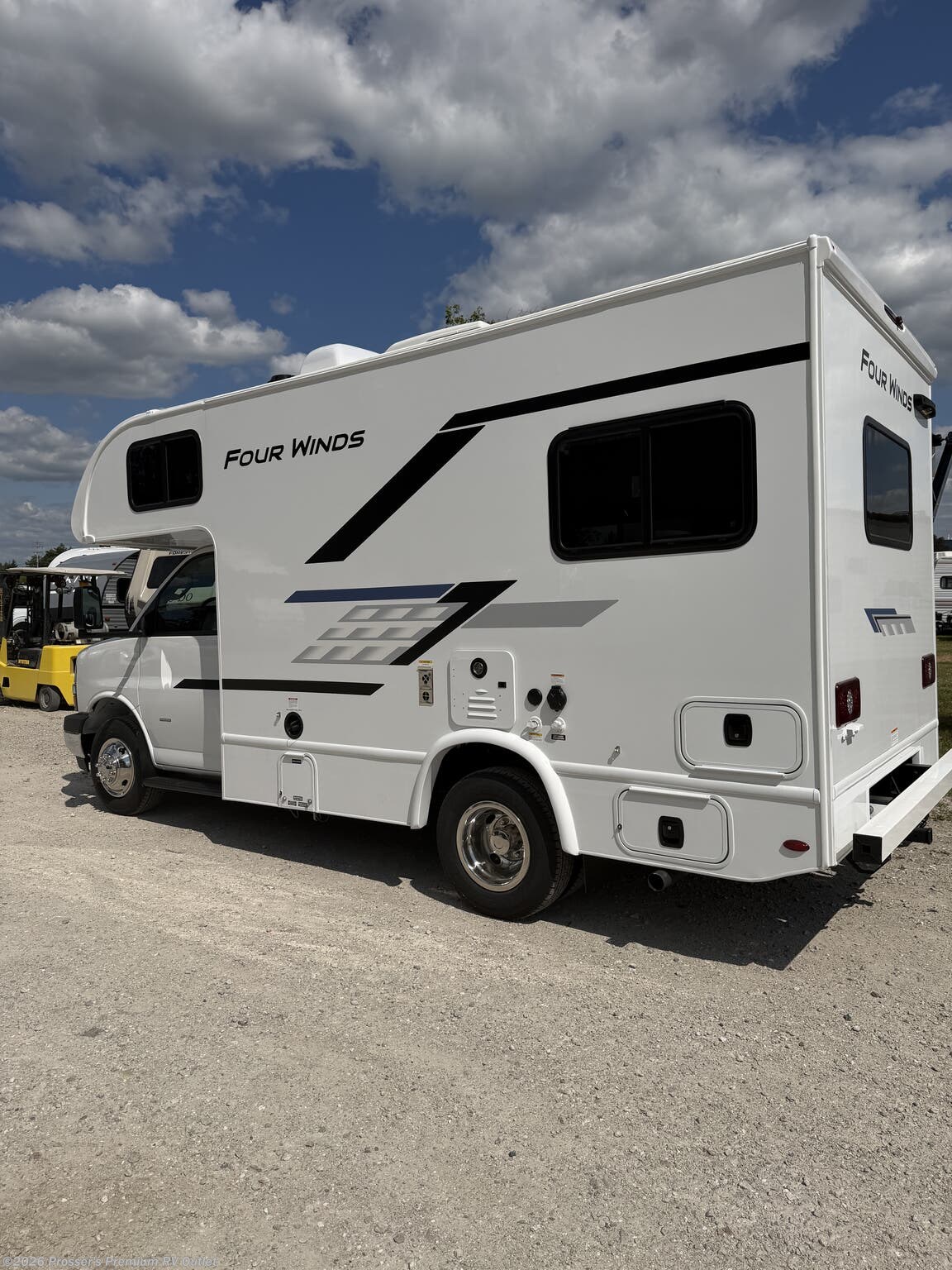

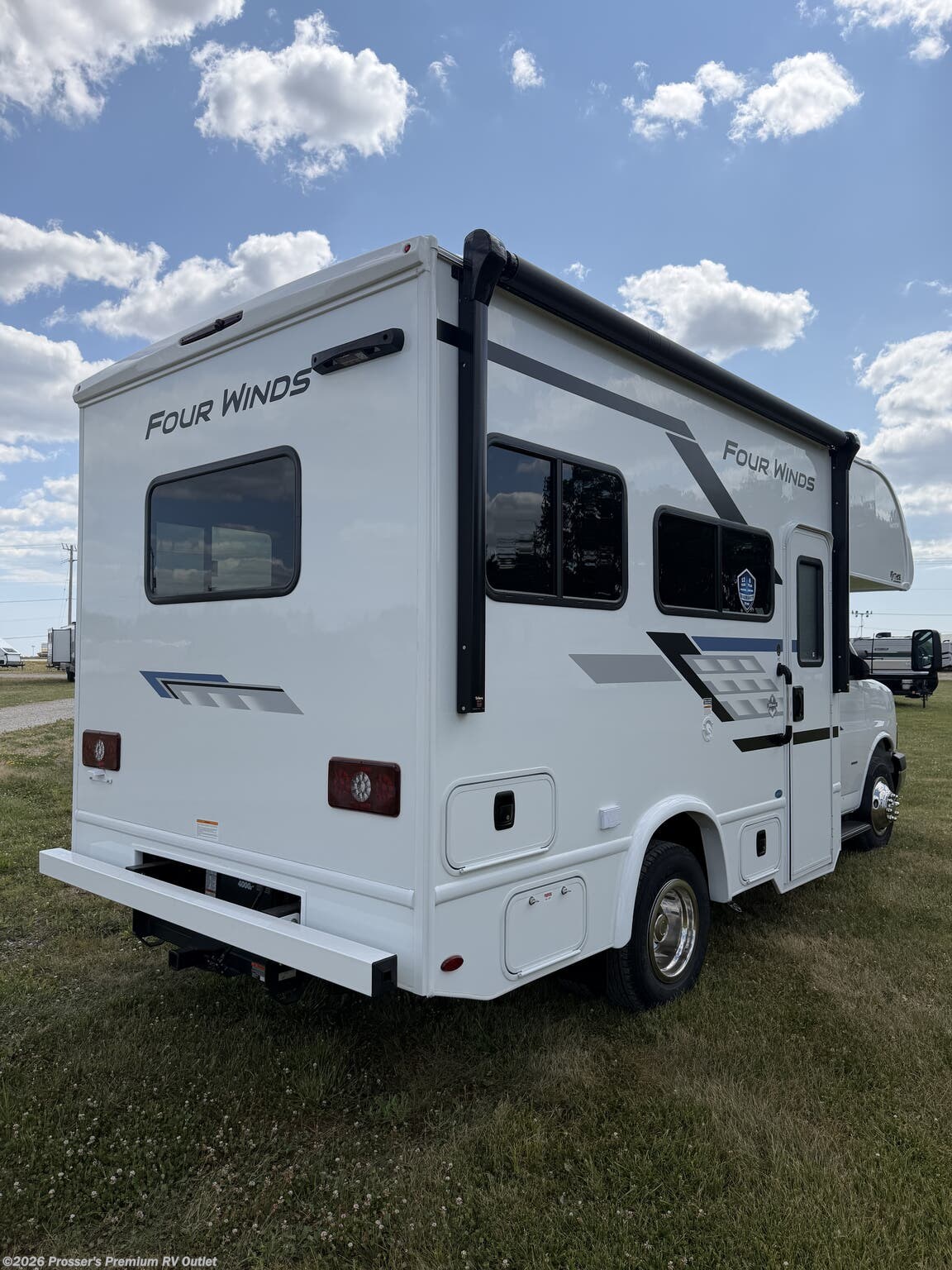

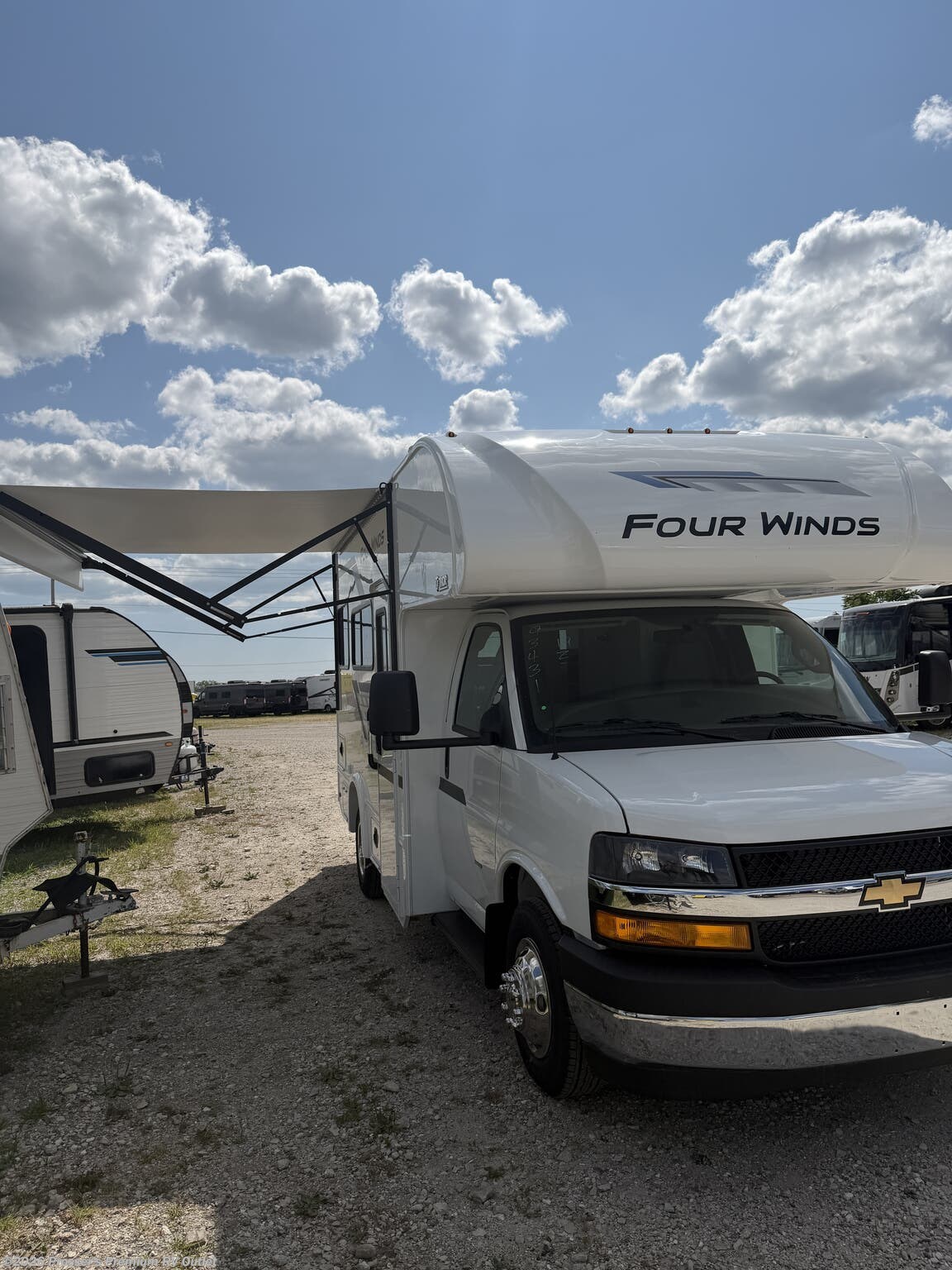

Exterior Construction and Convenience

Thor builds the Four Winds with a welded tubular-aluminum roof and sidewall cage, Vacu-Bond laminated roof, walls and floor, block-foam insulation, a one-piece fiberglass front cap and a one-piece upper rear cap.

Exterior conveniences include:

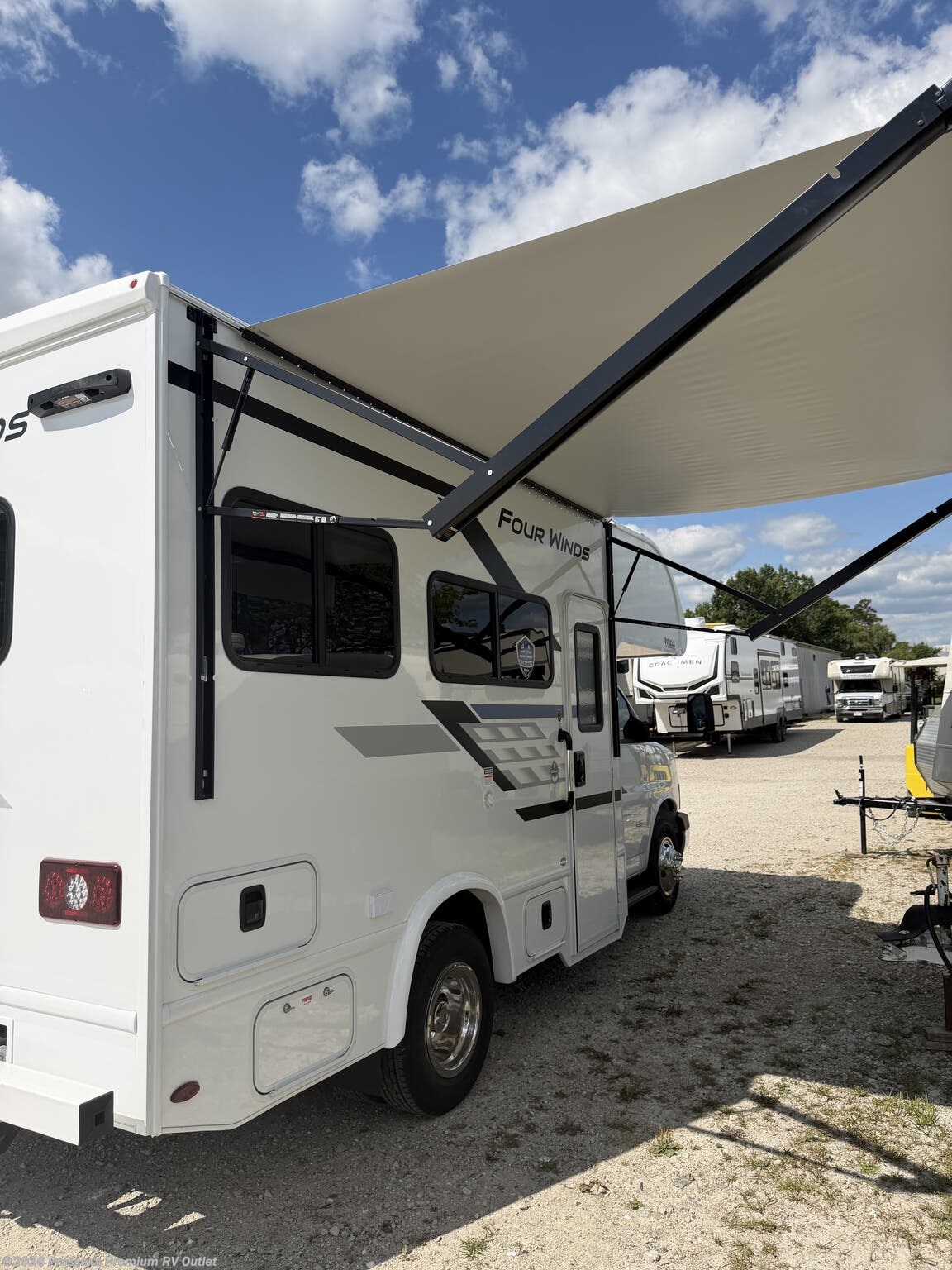

• Power patio awning with integrated LED lighting

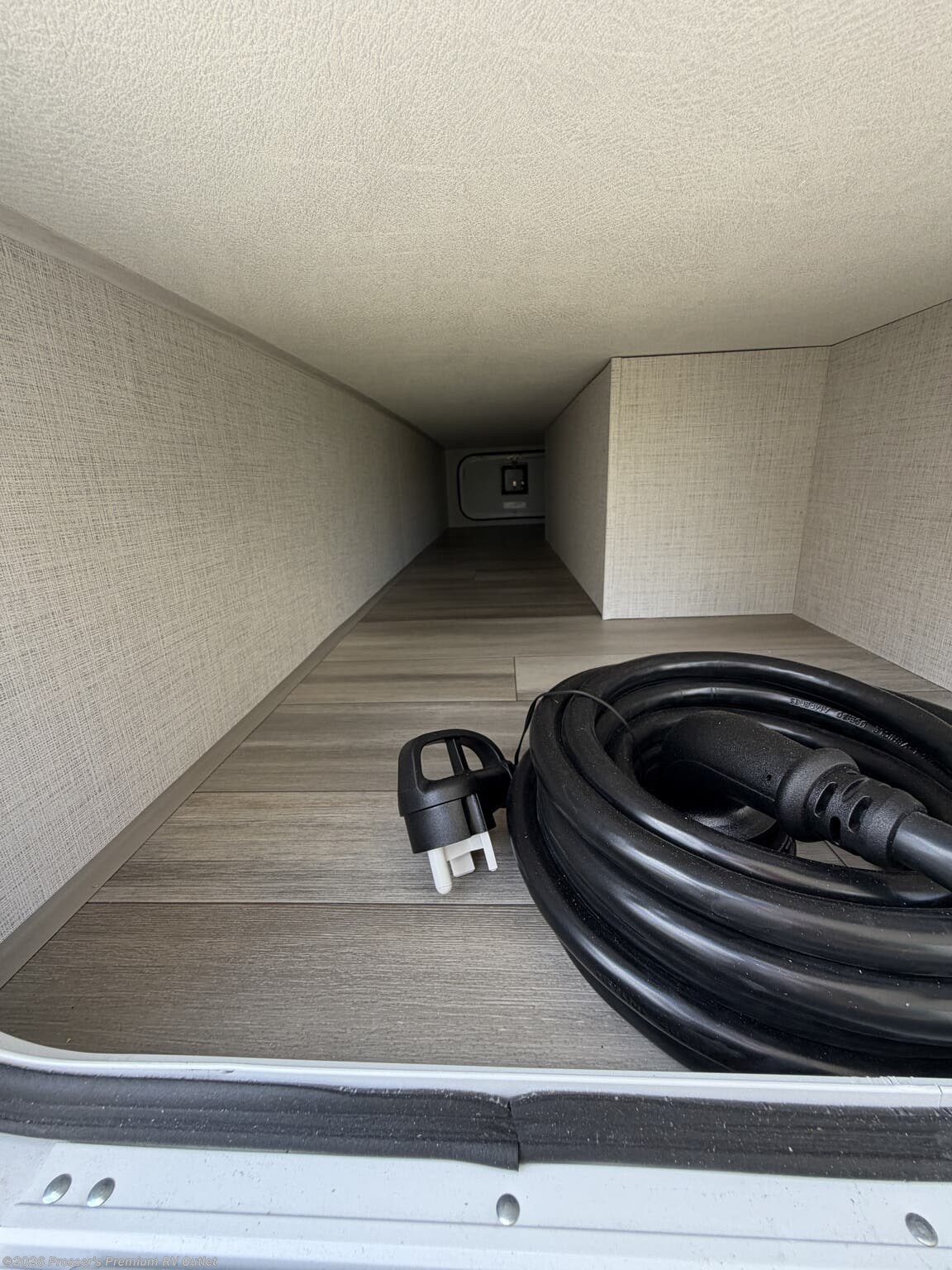

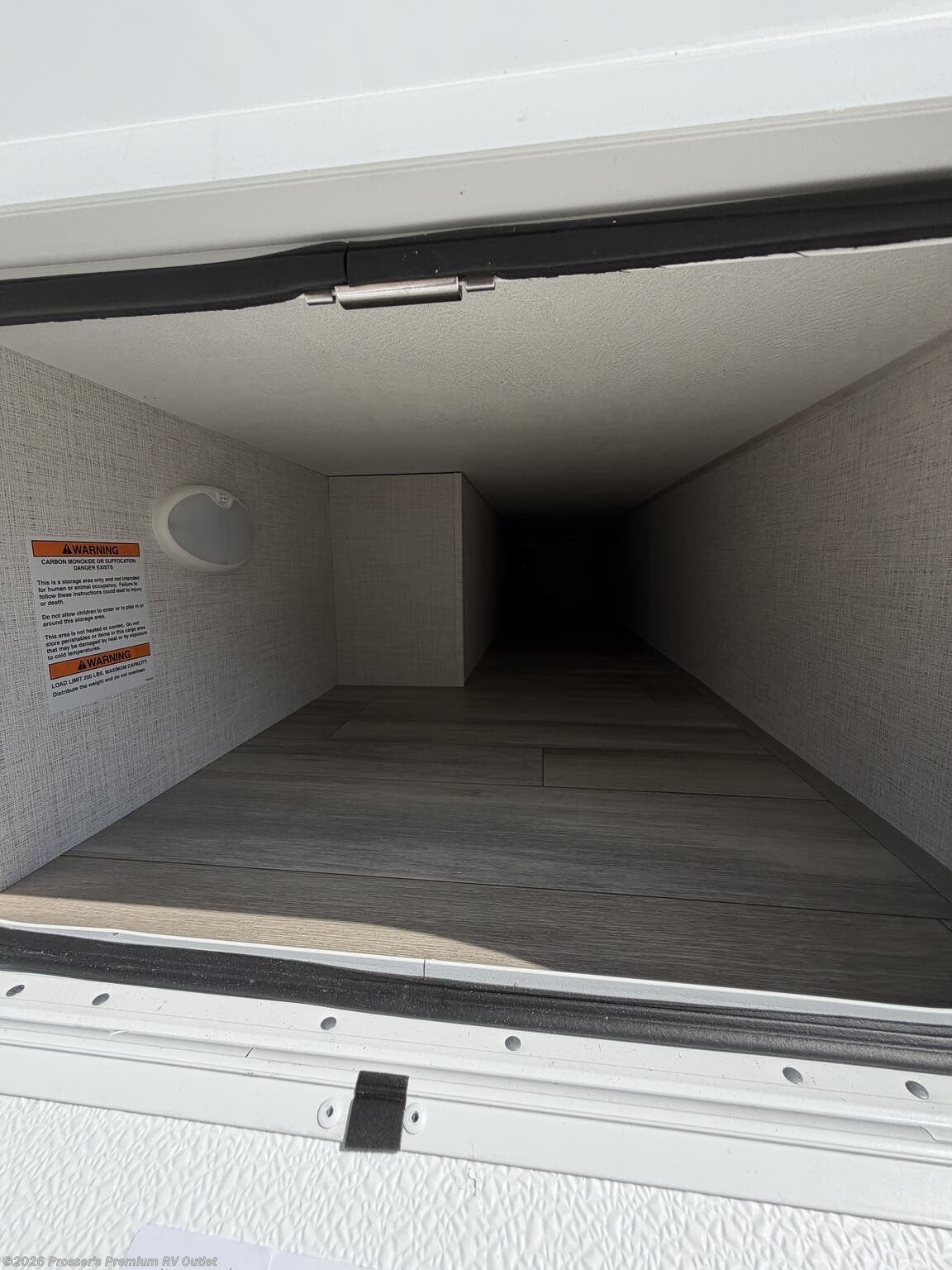

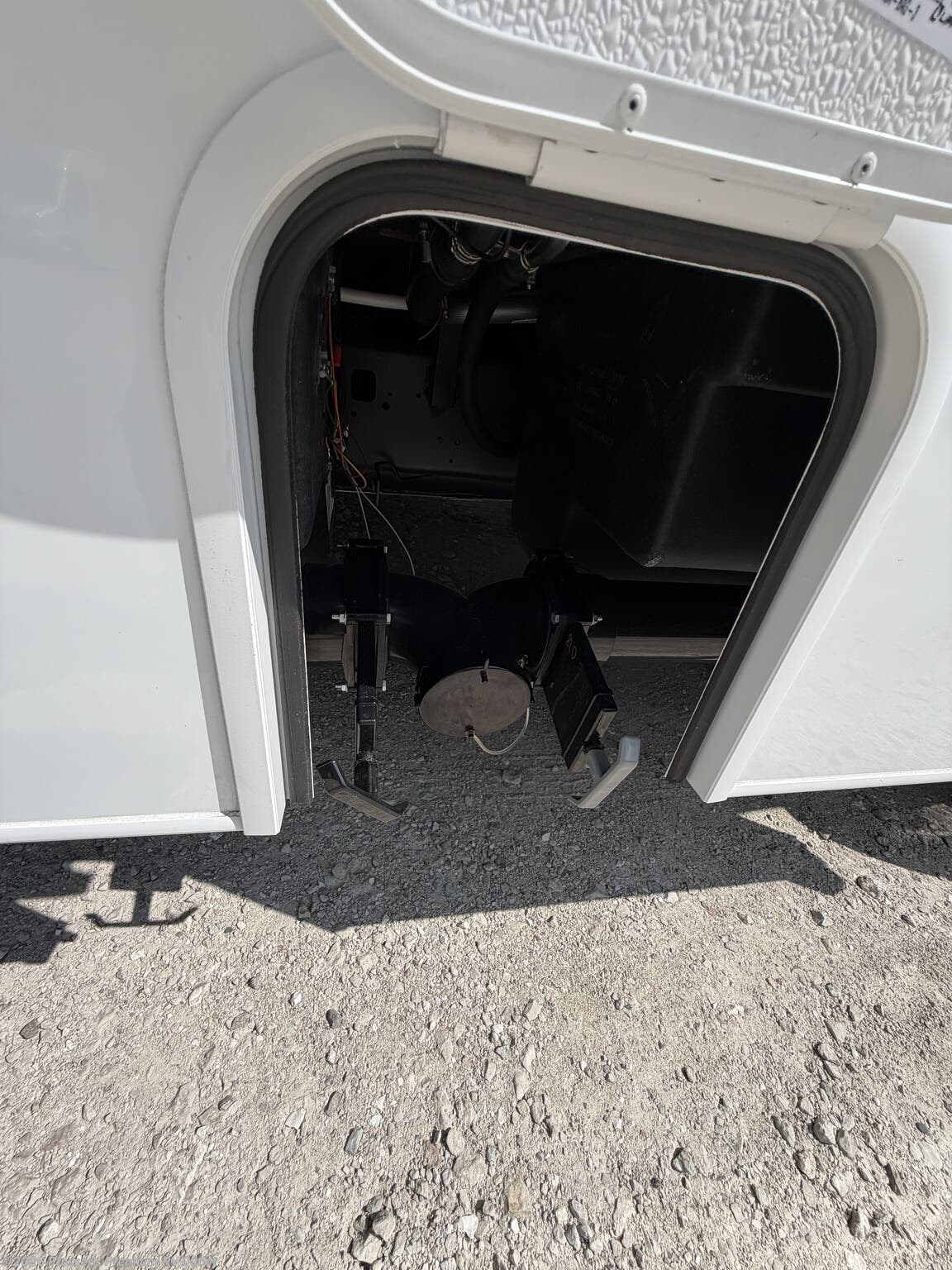

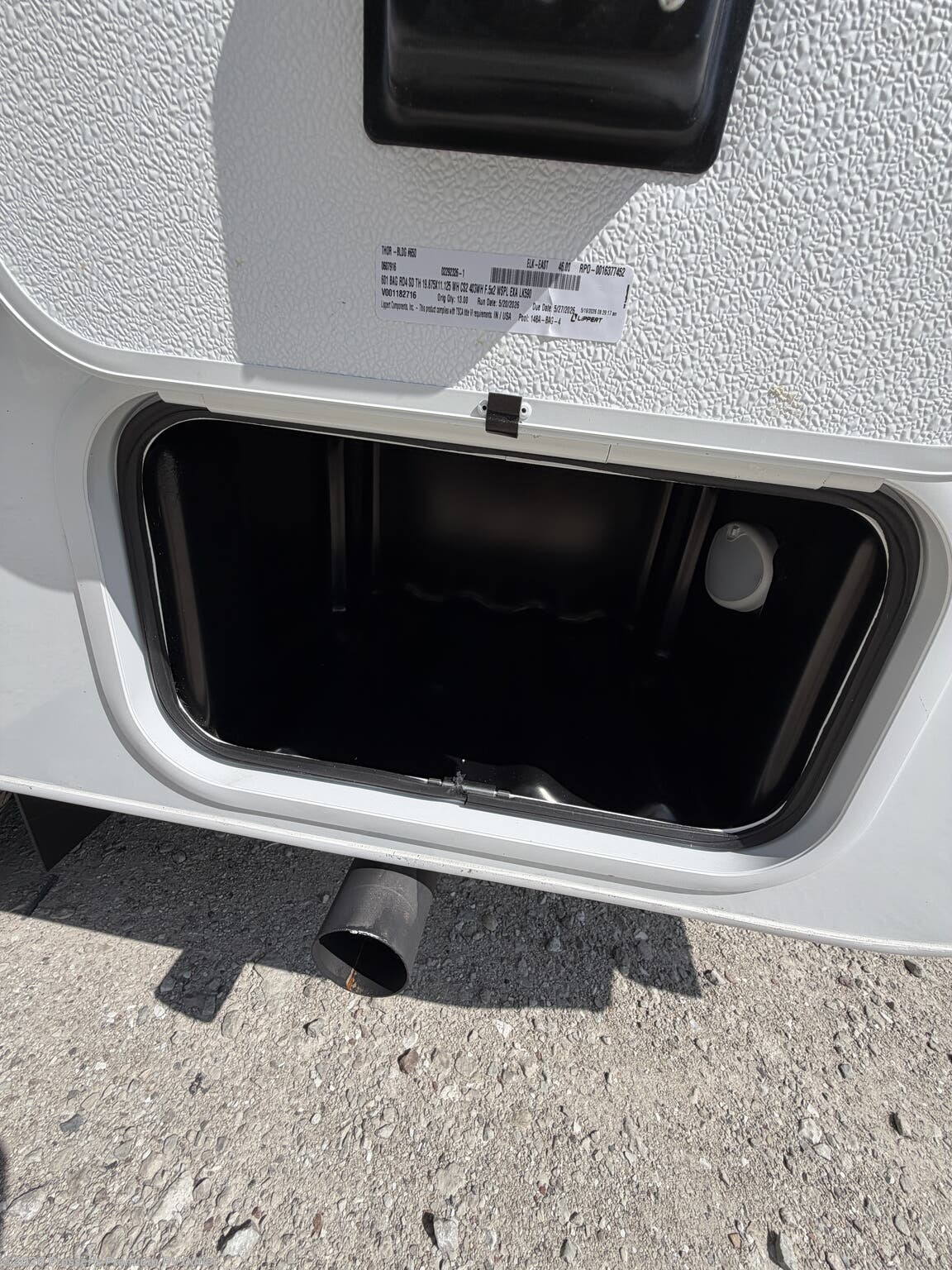

• Lighted exterior storage compartments
• 20.2 cubic feet of exterior storage
• Keyless-entry remote
• Exterior grab handle
• Entry step with accent lighting
• Pet-Link multipurpose exterior tie-down
• Rear-wall bracket for attaching an optional roof ladder

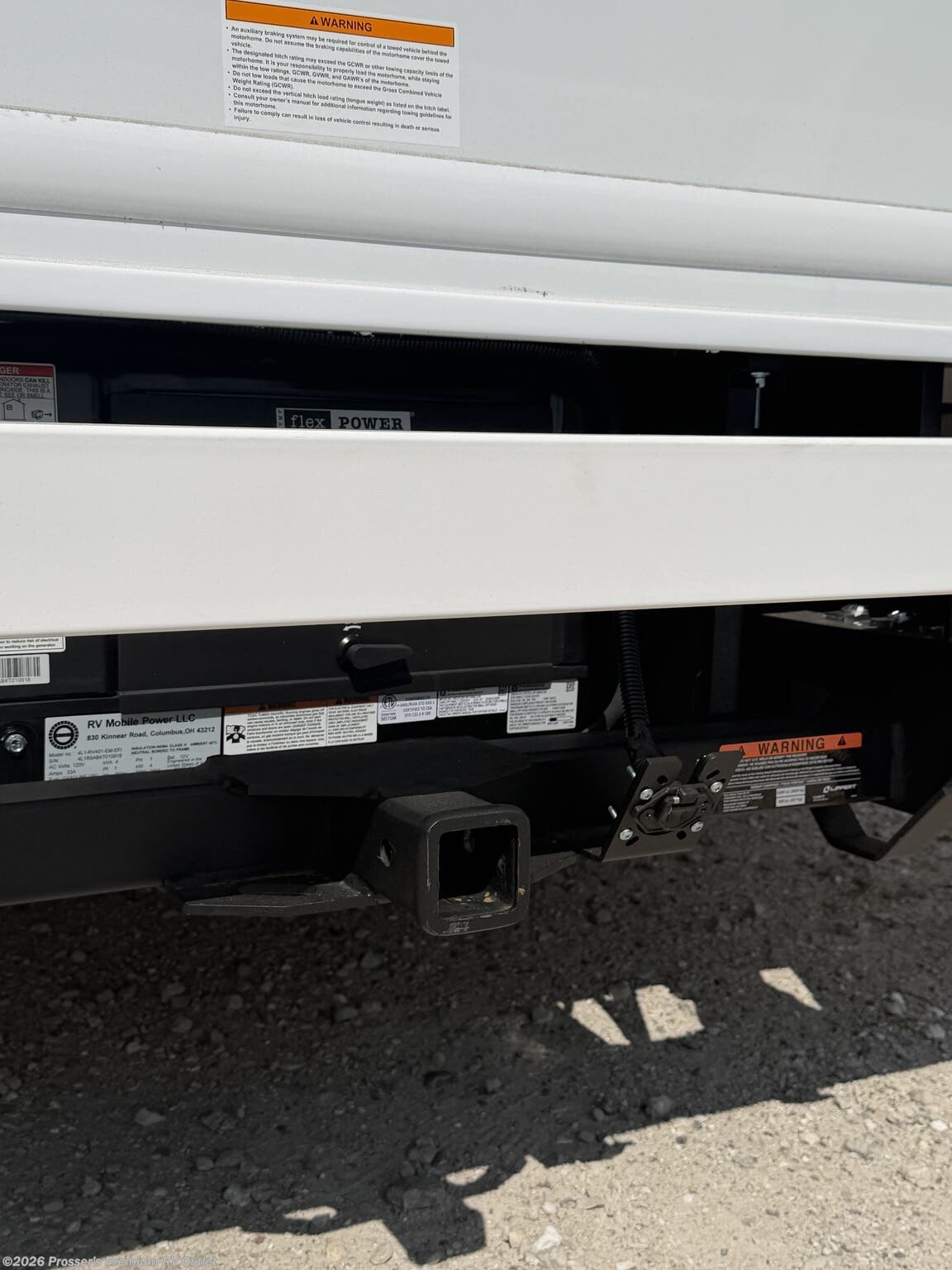

• 8,000-pound-rated trailer hitch

The coach is equipped with a ladder mounting bracket, not necessarily a complete installed roof ladder.

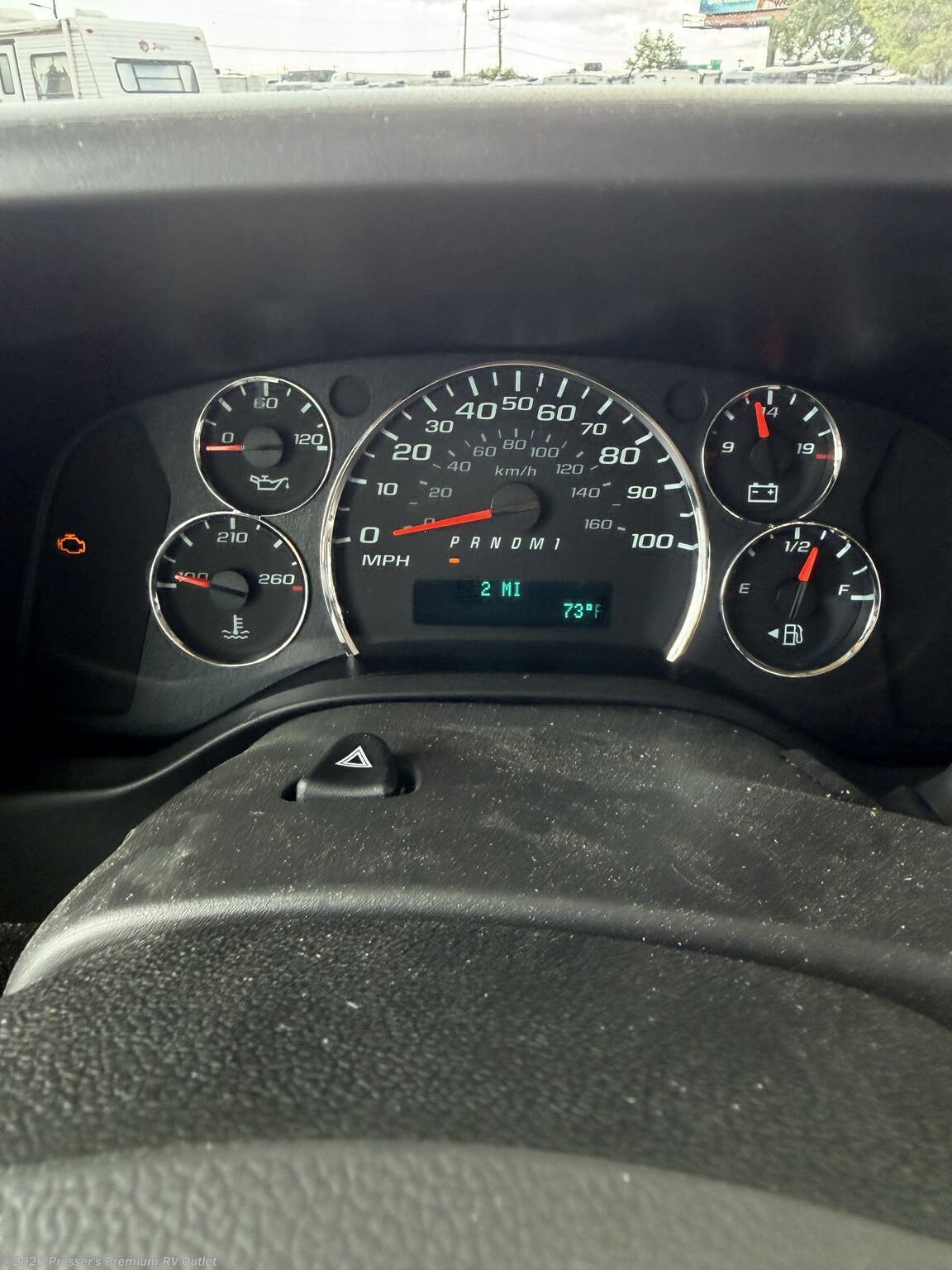

Driving and Chassis

The Ford E-Series platform uses a 7.3-liter V8 gasoline engine producing 325 horsepower and 450 lb-ft of torque. Driver conveniences include cruise control, tilt steering, power windows and locks, keyless entry, emergency engine start, deluxe exterior mirrors and a tire-pressure monitoring system.

Its 11-foot-6-inch wheelbase and 20-foot-5-inch overall length help distinguish the 19Z from larger Class C motorhomes. Although every motorhome requires appropriate awareness of width, height and rear overhang, this compact size should make it more approachable for many buyers entering the motorized-RV market.

Verified Specifications

• Year: 2027
• Manufacturer: Thor Motor Coach
• Model: Four Winds
• Floorplan: 19Z
• Stock Number: NP20286
• RV Type: Class C motorhome
• Chassis: Ford E-Series
• Engine: 7.3L V8 gasoline
• Horsepower: 325
• Torque: 450 lb-ft
• Exterior Length: 20' 5" without ladder
• Exterior Width: 7' 10" without mirrors
• Exterior Height: 10' 8" with air conditioner
• Interior Height: 6' 8"
• Wheelbase: 11' 6"
• GVWR: 11,500 lbs.
• GCWR: 18,500 lbs.
• Hitch Rating: 8,000 lbs.
• Fuel Capacity: 40 gallons
• Fresh Water: 20.5 gallons
• Gray Water: 17 gallons
• Black Water: 16 gallons
• Exterior Storage: 20.2 cu. ft.
• Awning: 11 feet
• Seat-Belt Capacity: 4
• Sleeping Capacity: 3
• Slide-Outs: None

Who Is This Motorhome Built For?

The Four Winds 19Z is especially well suited for:

• Couples who want a compact touring motorhome
• Solo travelers
• First-time Class C buyers
• Campers who do not want to tow a trailer
• Owners downsizing from a larger motorhome
• Travelers who value easy access to the interior while underway
• Buyers who want a generator and private bathroom in a smaller coach
• Remote workers who can use the rear dinette as a mobile workspace

Prosser RV Buyer’s Tip

Do not judge the 19Z only by its sleeping-capacity number. For many couples, the cab-over bunk is valuable even when it is not used every night. It can provide a separate sleeping position, keep bedding out of the main living area or serve as convenient storage while traveling.

Also remember that an 8,000-pound hitch rating does not automatically mean the motorhome can tow an 8,000-pound vehicle. Actual towing capacity must account for the coach’s loaded weight, the 18,500-pound GCWR, hitch limits, tongue weight and any applicable Ford or Thor restrictions.

Questions Buyers Often Ask

Is the Ford 7.3L engine diesel or gasoline?
It is a gasoline V8. The diesel designation in the earlier description was incorrect.

Does this motorhome have an oven?
It has a convection microwave with an air-fryer function and a two-burner cooktop. Thor’s current equipment list does not show a separate conventional oven.

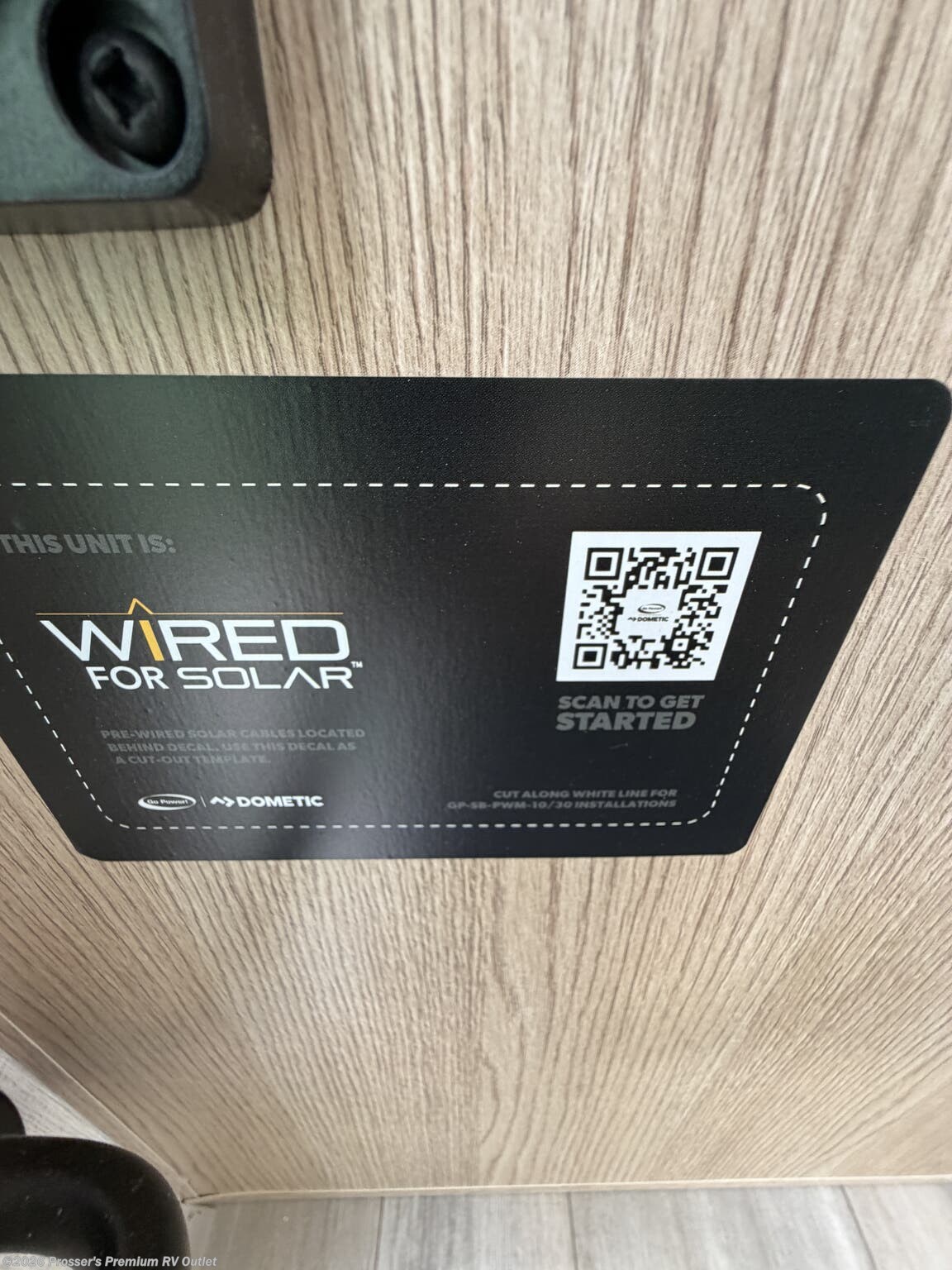

Does it have a solar panel?
The model is wired and prepared for solar installation. An installed panel should not be claimed unless it is confirmed on this unit’s factory window sticker or visible equipment.

Is the bathroom usable while traveling?
Yes. With no slide-out blocking access, the kitchen, wet bath and living space remain available during travel stops.

Can it tow a vehicle?
It has an 8,000-pound-rated hitch, but the safe allowable weight depends on the fully loaded motorhome, GCWR, hitch rating and the vehicle or trailer being towed.

Why This Particular Unit Stands Out

Stock NP20286 combines the easiest-to-manage Four Winds floorplan with the essential systems many buyers want in a touring coach: a gasoline generator, tankless water heater, Smart TV, rear dinette, cab-over sleeping area, private wet bath, keyless entry and modern driver connectivity.

Most importantly, it provides genuine Class C functionality without requiring buyers to manage a 30-foot motorhome.
