Fleetwood Discovery LXE Class A diesel coach 40M highlights:

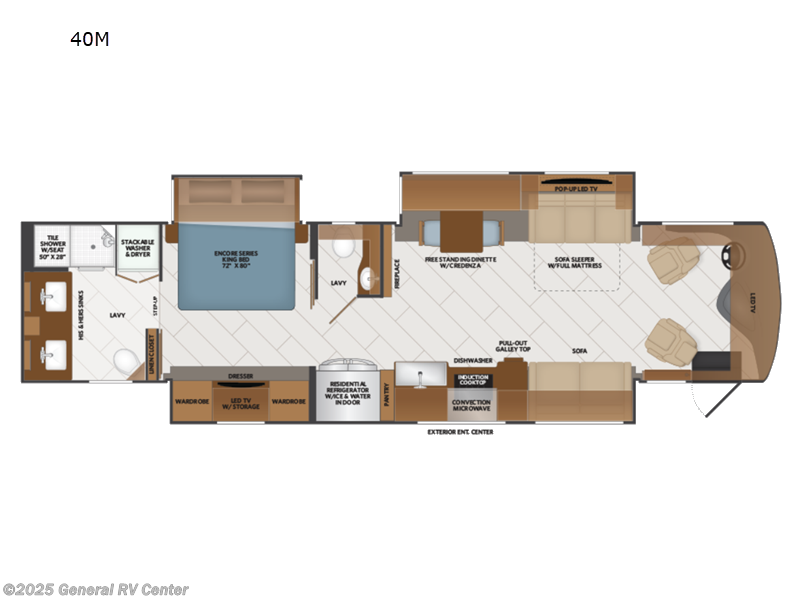

You will love traveling with friends and family in this spacious and luxurious coach. The full rear bath features dual bath sinks, a tile shower with a seat, plus a stackable washer and dryer. You will have plenty of space for your clothes in the dual bedroom wardrobes, and the Encore Series memory foam king bed is sure to bring comfort. The chef of your group will love cooking in the kitchen on the two burner induction cooktop, and there is a pull-out galley top here for more counter space. Your guests can relax on the sofa sleeper with full mattress, the sofa, or dine at the free-standing dinette with Credenza. There are four TV's found throughout this model, including an exterior entertainment center with an added Bluetooth speaker!
The Discovery LXE Class A diesel motorhomes by Fleetwood RV features a Freightliner XCM chassis for the ultimate in power, storage, and drivability. The swivel, recline, and heated captain's seats provide comfort at every turn, and you'll have an OptiView instrument panel, color backup monitor, and tuned SACHS® shocks for your peace of mind. Each coach includes full pass-through basement storage, automatic hydraulic leveling jacks, a four-color premium full-body paint, and automatic entrance steps to name a few exterior comforts. The interior will have you feeling right at home with its porcelain tile flooring, floor heat in the living area, hardwood cabinetry, and polished solid surface galley countertop with lighting.
MSRP
$512,748
MSRP + Destination
$512,748
Currency
US Dollars
Basic Warranty
12 Months
Basic Warranty
15,000 Miles
Structure Warranty
36 Months
Structure Warranty
45,000 Miles
Chassis Warranty
60 Months
Chassis Warranty
100,000 Miles
Powertrain Warranty
60 Months
Powertrain Warranty
100,000 Miles
Powertrain Warranty (Kilometers)
160934
Chassis Warranty (Kilometers)
160934
Engine Brand Name
Cummins
Chassis Brand
Freightliner
Engine Type
I6 Diesel Pusher
Chassis Model
Freedom Bridge
Cylinders
6
Horsepower (bhp)
380
Horsepower (kW)
283.6
Horsepower RPM
2000
Torque (Ft Lbs)
1150
Torque (Nm)
1559.2
Torque RPM
1400
Displacement (l)
8.9
Fuel Type
Diesel
Fuel Requirements
Regular
Carburetion Type
Fuel Injected
Turbocharged
Yes
Supercharged
No
Transmission Brand
Allison
Transmission Type
Automatic
Number Of Speeds
6
Overdrive
Yes
Driveline Type
4X2
Length (ft)
40.08
Length (in)
481
Length (ft/ft)
40
Length (ft/in)
1
Length (m)
12.2
Length (mm)
12200
Width (in)
102
Width (mm)
2590.8
Height (in)
154
Height (mm)
3911.6
Interior Height (in)
84
Interior Height (mm)
2133.6
Wheelbase (in)
263
Wheelbase (mm)
6680.2
Towing Capacity (lbs)
10000
Towing Capacity (kgs)
4536
GVWR (lbs)
36600
GVWR (kgs)
16601.8
Fuel Capacity (gal)
100
Fuel Capacity (l)
378.5
Storage Capacity (cuft)
275
Storage Capacity (gal)
1767.8
Storage Capacity (l)
7786.9
Number Of Fresh Water Holding Tanks
1
Total Fresh Water Tank Capacity (gal)
105
Total Fresh Water Tank Capacity (l)
397.5
Number Of Gray Water Holding Tanks
1
Total Gray Water Tank Capacity (gal)
75
Total Gray Water Tank Capacity (l)
283.9
Number Of Black Water Holding Tanks
1
Total Black Water Tank Capacity (gal)
50
Total Black Water Tank Capacity (l)
189.3
Number Of Propane Tanks
0
Total Propane Tank Capacity (gal)
0
Total Propane Tank Capacity (lbs)
0
Body Material
Aluminum
Sidewall Construction
Fiberglass
Number of Doors
1
Sliding Glass Door
No
Number of Slideouts
3
Power Retractable Slideout
Yes
Number of Awnings
1
Awning Length (ft)
18
Awning Length (m)
5.5
Power Retractable Awning
Yes
Screened Room
No
Leveling Jack Type
Front Power / Rear Power
Refrigerator
No
Sink
No
Stove
No
Microwave
No
Kitchen / Living Area Flooring Type
Carpet / Tile
Kitchen Table Configuration
Chairs
Kitchen Location
Center
Living Area Location
Front
Layout
Oven / Stove
Number Of Oven Burners
2
Overhead Fan
Yes
Convection
Yes
Refrigerator Size
Full-Size
Refrigerator Power Mode
Electric
Number Of Sofas
2
Sofa Material
Leather
Reclining Sofa
No
Number Of Recliner / Rockers
2
Material
Leather
Max Sleeping Count
9
Number Of Bunk Beds
1
Number Of Double Beds
0
Number Of Full Size Beds
0
Number Of Queen Size Beds
0
Number Of King Size Beds
1
Number Of Convertible / Sofa Beds
2
Master Bedroom Flooring Type
Carpet / Tile
Master Bedroom Door Style
Full Sliding Door
Full Size Master Bedroom Closet
Yes
Master Bedroom Mirror Doors
Yes
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Center
Bunkhouse
No
Number Of Bathrooms
2
Bathroom Flooring Type
Tile
Bathroom Location
Rear / Center
Toilet Type
Porcelain
Toilet Location
Rear / Center
Door Type
Plastic / Glass
Shower Location
Rear
Bathroom Sink Location
Rear / Center
Bathroom Medicine Cabinet Location
Rear / Center
Bathroom Mirror Location
Rear / Center
Bathroom Vent / Fan System Location
Rear / Center
Wheels Composition
Aluminum
Front Wheel Width (in)
8.25
Rear Wheel Width (in)
8.25
Number Of Axles
1
Tire Brand
Michelin
Front Tire Width
275
Front Tire Aspect Ratio
80
Front Tire Speed Rating
H
Front Wheel Diameter
22.5
Rear Tire Width
275
Rear Tire Aspect Ratio
80
Rear Tire Speed Rating
H
Rear Wheel Diameter
22.5
Front Tire (Full Spec)
Michelin XZE 275/80R 22.5H
Rear Tire (Full Spec)
Michelin XZE 275/80R 22.5H
Front Brake Type
Hydraulic Disc
Rear Brake Type
Hydraulic Drum
Rear Hitch Type
Receiver
Size (in)
2.5
Size (cm)
6.3
Tongue Weight (lbs)
1000
Tongue Weight (kgs)
453.6
Seat Type
Bucket
Seat Material
Leather
Power Adjustable Seat
Yes
Reclining Seats
Yes
Swivel Seats
Yes
Seat Armrests
Yes
Number Of Seats
2
Number Of Rows
1
Battery Power Converter
Yes
Battery Converter Amps
60
Air Conditioning Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
No
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
Yes
Washer / Dryer Prewiring
Yes
Solar
Yes
Back-Up Camera
Yes
Air Conditioning Type
Automatic
Air Conditioning (BTUs)
45,000
Heater Type
Automatic
Water Heater Tank Capacity (g)
0
Water Heater Tank Capacity (l)
0
Water Heater Pump Power Mode
Electrical / Diesel
Water Heater Tank Bypass
Yes
Tankless Water Heater
Yes
Number Of Emergency Exits
1
Number Of Radios
1
Satellite
Yes
Speaker Location(s)
Interior / Exterior
Surround Sound
Yes
Number Of Discs
1
Number Of Televisions
4
Primary Color
Tan
Secondary Color
Silver
Paint Swatch File Name
Fleetwood/Battlefield_Exterior_Color.gif
Wallpaper
Yes
Interior Wood Finish
Yes
Heated
No
Bluetooth Audio
Yes
Wi-Fi Capable
Yes
Mobile App Instrumentation
Yes
