Highland Ridge RV Range Lite travel trailer 261BH highlights:
The chef will enjoy cooking in this travel trailer! They can prepare their best meals with the three burner cooktop and 17" oven indoors or head to the outside kitchen and grill up some juicy burgers while breathing in fresh air. The rear corner bathroom is conveniently next to the double over double bunk beds. A couple other guests can even tag along and sleep on the booth dinette and tri-fold sofa slide once they are converted. The queen bed inside the front private bedroom also offers a comfortable place to sleep and has drawers underneath, wardrobes on either side, and a laundry chute for your dirty clothes.
Each one of these Highland Ridge RV Range Lite travel trailers maximize their interior space while staying lightweight thanks to the TuffShell fiberglass walls! The extra-deep slides with residential floors create more walking around space, and the vinyl furniture, no floor heat registers, and residential vinyl flooring throughout makes them kid and pet friendly. A few construction features you will appreciate include a fully-walkable roof, a thermal seal which means the underbelly is enclosed, heated, and insulated, and a fully insulated roof with a PVC roofing membrane. Plus, there is an exterior grill hookup quick connect port, self-adjusting electric brakes to help you safely arrive, and an oversized pass-through storage area with motion lighting. Come find your favorite one today!
MSRP
$48,248
MSRP + Destination
$48,248
Currency
US Dollars
Basic Warranty
12 Months
Structure Warranty
36 Months
Roof Warranty (Years)
15
Length (ft)
30.83
Length (in)
370
Length (ft/ft)
30
Length (ft/in)
10
Length (m)
9.4
Length (mm)
9400
Width (in)
97
Width (mm)
2463.8
Height (in)
132
Height (mm)
3352.8
Interior Height (in)
81
Interior Height (mm)
2057.4
Dry Weight (lbs)
5805
Dry Weight (kg)
2633.1
Payload Capacity (lbs)
1695
Payload Capacity (kgs)
768.9
GVWR (lbs)
7500
GVWR (kgs)
3402
Hitch Weight (lbs)
780
Hitch Weight (kgs)
353.8
Number Of Fresh Water Holding Tanks
1
Total Fresh Water Tank Capacity (gal)
45
Total Fresh Water Tank Capacity (l)
170.3
Number Of Gray Water Holding Tanks
1
Total Gray Water Tank Capacity (gal)
29
Total Gray Water Tank Capacity (l)
109.8
Number Of Black Water Holding Tanks
1
Total Black Water Tank Capacity (gal)
29
Total Black Water Tank Capacity (l)
109.8
Number Of Propane Tanks
2
Total Propane Tank Capacity (gal)
14.2
Total Propane Tank Capacity (lbs)
60
Body Material
Aluminum
Sidewall Construction
Fiberglass
Number of Doors
1
Sliding Glass Door
No
Number of Slideouts
1
Power Retractable Slideout
Yes
Number of Awnings
1
Awning Length (ft)
20.5
Awning Length (m)
6.2
Power Retractable Awning
Yes
Screened Room
No
Leveling Jack Type
Front Manual / Rear Manual
Refrigerator
Yes
Sink
No
Stove
Yes
Microwave
No
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Table Configuration
Bench Seats
Kitchen Location
Center
Living Area Location
Center
Layout
Oven / Stove
Number Of Oven Burners
3
Oven Depth (in)
17
Oven Depth (mm)
431.8
Overhead Fan
Yes
Convection
No
Refrigerator Size
Mid-Size
Refrigerator Power Mode
Electric / Propane
Number Of Sofas
1
Sofa Material
Vinyl
Reclining Sofa
No
Number Of Recliner / Rockers
2
Material
Vinyl
Max Sleeping Count
10
Number Of Bunk Beds
0
Number Of Double Beds
2
Number Of Full Size Beds
0
Number Of Queen Size Beds
1
Number Of King Size Beds
0
Number Of Convertible / Sofa Beds
2
Master Bedroom Flooring Type
Vinyl
Master Bedroom Door Style
Full Sliding Door
Full Size Master Bedroom Closet
No
Master Bedroom Mirror Doors
No
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Front
Bunkhouse
Yes
Number Of Bathrooms
1
Bathroom Flooring Type
Vinyl
Bathroom Location
Rear
Toilet Type
Porcelain
Toilet Location
Rear
Door Type
Curtain
Shower Location
Rear
Bathtub Location
Rear

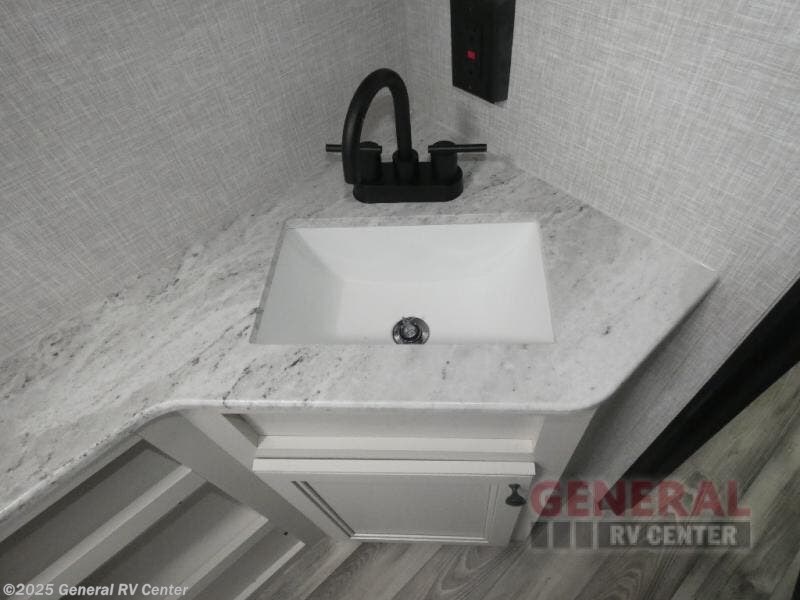

Bathroom Sink Location
Rear
Bathroom Medicine Cabinet Location
Rear
Bathroom Mirror Location
Rear
Bathroom Vent / Fan System Location
Rear
Wheels Composition
Aluminum
Number Of Axles
2
Rear Tire Width
205
Rear Tire Aspect Ratio
75
Rear Tire Speed Rating
D
Rear Wheel Diameter
14
Rear Tire (Full Spec)
ST205/75R14D
Spare Tire Location
Exterior Mounted
Front Brake Type
Not Applicable
Rear Brake Type
Electric Drum
Battery Power Converter
Yes
Air Conditioning Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
No
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
Yes
Washer / Dryer Prewiring
No
Solar
Yes
Back-Up Camera
Yes
Air Conditioning Type
Automatic
Air Conditioning (BTUs)
15,000
Heater Type
Automatic
Heater (BTUs)
30,000
Water Heater Tank Capacity (g)
6
Water Heater Tank Capacity (l)
22.7
Water Heater Pump Power Mode
Electrical / Propane
Water Heater Tank Bypass
Yes
Tankless Water Heater
No
Number Of Emergency Exits
1
Brand Name
JBL
Number Of Radios
1
Speaker Location(s)
Interior / Exterior
Surround Sound
Yes
Number Of Discs
1
Number Of Televisions
1
Primary Color
White
Metallic
No
Paint Swatch File Name
Highland Ridge/White_Exterior_Color.gif
Wallpaper
Yes
Interior Wood Finish
Yes
Bluetooth Audio
Yes
Wi-Fi Capable
Yes
Mobile App Instrumentation
No
