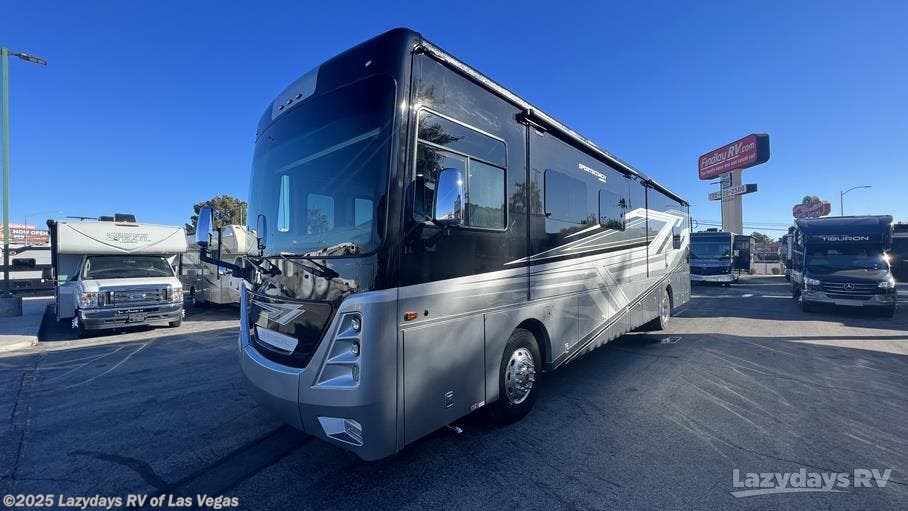

Coachmen RV Sportscoach RD Class A diesel motorhome 403QS highlights:
?

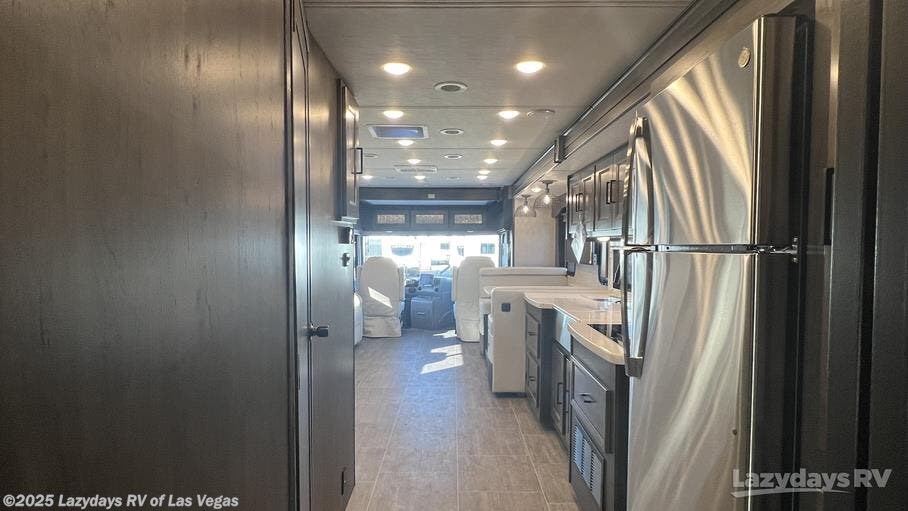

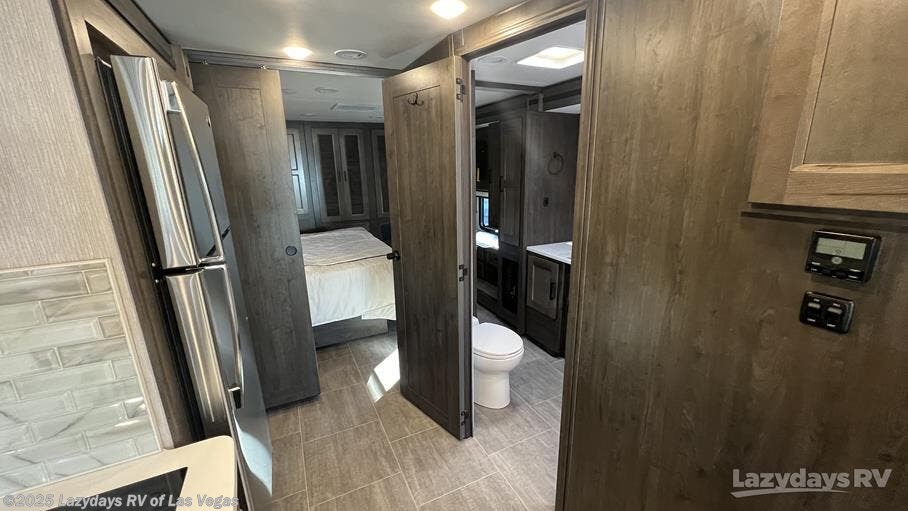

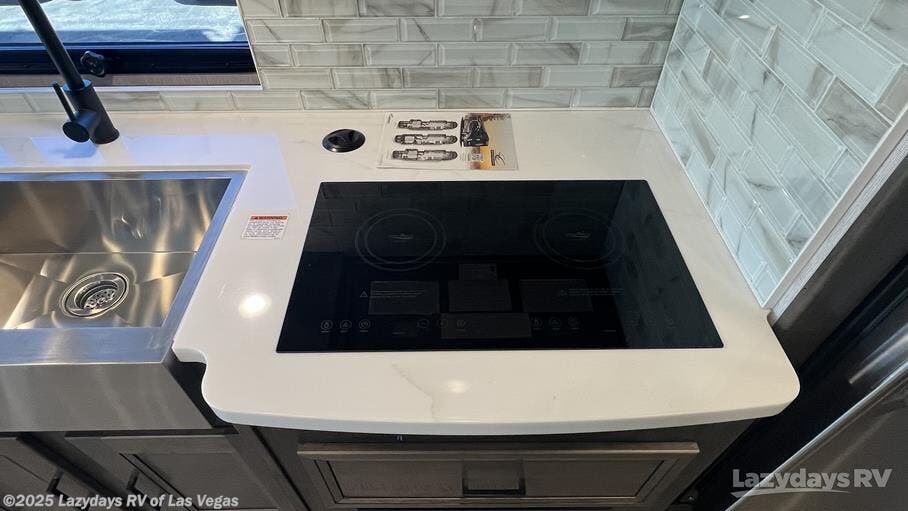

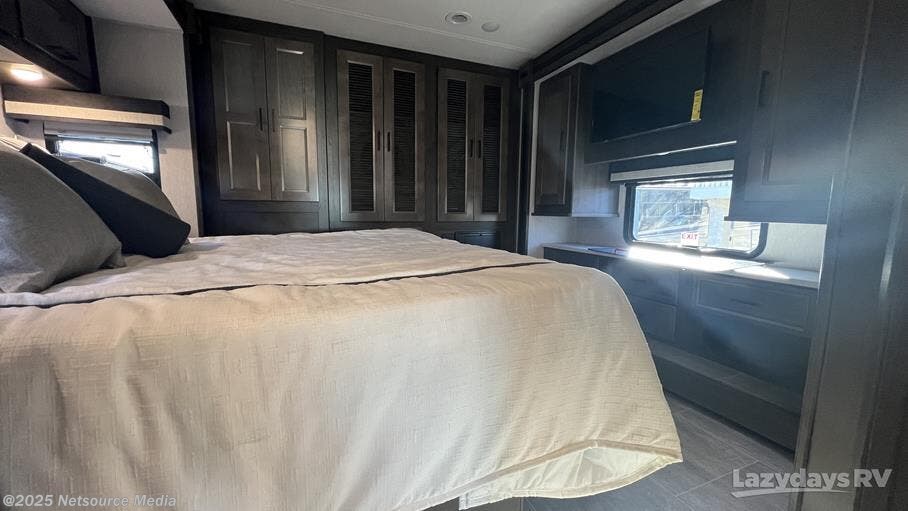

You will have everything you need for a comfortable vacation in this motorhome! Enjoy home cooked meals with the two burner induction cooktop and 18 cu. ft. stainless steel refrigerator, plus there is a large stainless steel farmhouse sink to make clean up easier and pop-up recepts with USB ports to keep your electronics charged while you look at the recipes. The dual entry bathroom not only has a 38" x 30" shower to freshen up in and a dual sink vanity, but also an entrance into the rear master suite. Inside the master suite, you will find a king bed slide with a CPAP station above it, wardrobes on either side of a LED TV, a linen closet with hamper, and a wardrobe that is prepped to add an optional washer and dryer. Relax in comfort each night on either the 38" x 68" visionary sofa or the 68" theater seating across from the 50" LED TV or play some card games at the 42" x 82" booth dinette.
?
Start exploring new places with friends and family in one of these Coachmen RV Sportscoach RD Class A diesel motorhomes! They are built on a raised rail Freightliner chassis and powered by an ISB Cummins rear diesel engine with 360HP. The high gloss gel coat sidewalls come with Azdel superlite composite to not only keep your unit at a lighter weight, but also to keep it from rotting away. Enjoy panoramic views of your beautiful surroundings with the frameless tinted windows and the ease of getting into bed now with the true flat floor bedroom design eliminating unnecessary climbing over the engine cover. The chassis air suspension and air brakes provide a smooth ride to each destination, and the charging station inside will keep your electronics at 100% for your trips. Come find the one that best suits your needs today!
MSRP
$374,304
MSRP + Destination
$374,304
Currency
US Dollars
Basic Warranty
12 Months
Basic Warranty
12,000 Miles
Structure Warranty
12 Months
Structure Warranty
12,000 Miles
Roof Warranty (Years)
10
Chassis Warranty
60 Months
Chassis Warranty
100,000 Miles
Powertrain Warranty
60 Months
Powertrain Warranty
100,000 Miles
Powertrain Warranty (Kilometers)
160934
Chassis Warranty (Kilometers)
160934
Engine Brand Name
Cummins
Chassis Brand
Freightliner
Engine Type
I6 Diesel Pusher
Chassis Model
XC-Series
Cylinders
6
Horsepower (bhp)
360
Horsepower (kW)
268.6
Horsepower RPM
2600
Torque (Ft Lbs)
800
Torque (Nm)
1085
Torque RPM
1800
Displacement (l)
6.7
Fuel Type
Diesel
Fuel Requirements
Regular
Carburetion Type
Fuel Injected
Turbocharged
Yes
Supercharged
No
Transmission Brand
Allison
Transmission Type
Automatic
Number Of Speeds
6
Overdrive
Yes
Driveline Type
4X2
Length (ft)
41.08
Length (in)
493
Length (ft/ft)
41
Length (ft/in)
1
Length (m)
12.5
Length (mm)
12500
Width (in)
102
Width (mm)
2590.8
Height (in)
154
Height (mm)
3911.6
Wheelbase (in)
266
Wheelbase (mm)
6756.4
Towing Capacity (lbs)
10000
Towing Capacity (kgs)
4536
GVWR (lbs)
32000
GVWR (kgs)
14515.2
Fuel Capacity (gal)
100
Fuel Capacity (l)
379
Number Of Fresh Water Holding Tanks
1
Total Fresh Water Tank Capacity (gal)
89
Total Fresh Water Tank Capacity (l)
336.9
Number Of Gray Water Holding Tanks
1
Total Gray Water Tank Capacity (gal)
52
Total Gray Water Tank Capacity (l)
196.8
Number Of Black Water Holding Tanks
1
Total Black Water Tank Capacity (gal)
52
Total Black Water Tank Capacity (l)
196.8
Number Of Propane Tanks
1
Total Propane Tank Capacity (gal)
20
Total Propane Tank Capacity (lbs)
84.8
Body Material
Aluminum
Sidewall Construction
Fiberglass
Number of Doors
1
Sliding Glass Door
No
Number of Slideouts
4
Power Retractable Slideout
Yes
Number of Awnings
1
Awning Length (ft)
17
Awning Length (m)
5.2
Power Retractable Awning
Yes
Screened Room
No
Leveling Jack Type
Front Power / Rear Power
Kitchen / Living Area Flooring Type
Tile
Kitchen Table Configuration
Bench Seats
Kitchen Location
Center
Living Area Location
Front
Layout
Oven / Stove
Number Of Oven Burners
2
Overhead Fan
Yes
Convection
Yes
Refrigerator Size
Full-Size
Refrigerator Power Mode
Electric
Number Of Sofas
1
Sofa Material
Vinyl
Reclining Sofa
No
Number Of Recliner / Rockers
2
Material
Vinyl
Max Sleeping Count
8
Number Of Bunk Beds
0
Number Of Double Beds
1
Number Of Full Size Beds
0
Number Of Queen Size Beds
0
Number Of King Size Beds
1
Number Of Convertible / Sofa Beds
2
Master Bedroom Flooring Type
Tile
Master Bedroom Door Style
Full Sliding Door
Full Size Master Bedroom Closet
Yes
Master Bedroom Mirror Doors
No
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Rear
Bunkhouse
No
Number Of Bathrooms
1
Bathroom Flooring Type
Tile
Bathroom Location
Center
Toilet Type
Porcelain
Toilet Location
Center
Door Type
Plastic / Glass
Shower Location
Center
Bathroom Sink Location
Center
Bathroom Medicine Cabinet Location
Center
Bathroom Mirror Location
Center
Bathroom Vent / Fan System Location
Center
Wheels Composition
Aluminum
Front Wheel Width (in)
8.25
Rear Wheel Width (in)
8.25
Number Of Axles
1
Tire Brand
Michelin
Front Tire Width
275
Front Tire Aspect Ratio
80
Front Wheel Diameter
22.5
Rear Tire Width
275
Rear Tire Aspect Ratio
80
Rear Wheel Diameter
22.5
Front Tire (Full Spec)
Michelin X Line Energy Z 275/80R 22.5
Rear Tire (Full Spec)
Michelin X Line Energy Z 275/80R 22.5
Front Brake Type
Hydraulic Disc
Rear Brake Type
Hydraulic Drum
Rear Hitch Type
Receiver
Seat Type
Bucket
Seat Material
Vinyl
Power Adjustable Seat
Yes
Reclining Seats
Yes
Swivel Seats
Yes
Seat Armrests
Yes
Number Of Seats
2
Number Of Rows
1
Battery Power Converter
Yes
Battery Converter Amps
80
Air Conditioning Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
No
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
Yes
Washer / Dryer Prewiring
Yes
Solar
Yes
Back-Up Camera
Yes
Air Conditioning Type
Automatic
Air Conditioning (BTUs)
30,000
Heater Type
Automatic
Heater (BTUs)
40,000
Water Heater Tank Capacity (g)
10
Water Heater Tank Capacity (l)
37.9
Water Heater Pump Power Mode
Electrical / Propane
Water Heater Tank Bypass
Yes
Number Of Emergency Exits
1
Number Of Radios
1
Satellite
No
Speaker Location(s)
Interior / Exterior
Surround Sound
Yes
Number Of Discs
1
Number Of Televisions
3
Primary Color
Black
Secondary Color
Silver
Metallic
No
Paint Swatch File Name
Coachmen/Flying_Spur_Full-Body_Paint.gif
Wallpaper
Yes
Interior Wood Finish
Yes
Bluetooth Audio
Yes
Wi-Fi Capable
No
Mobile App Instrumentation
No
