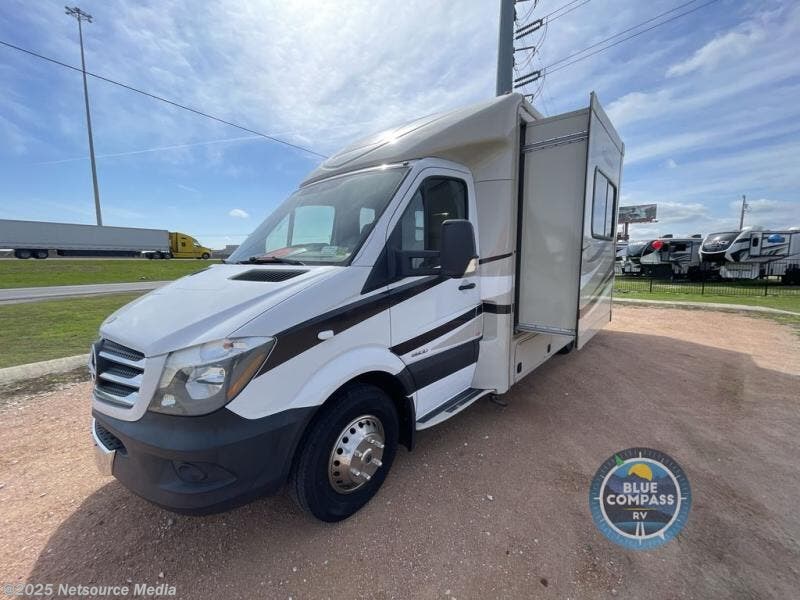

This Coachmen Prism class C diesel motor home features double slides for added space inside.
You will enjoy traveling in model 24G with its front slide out reclining sofa including overhead cabinet and a pedestal table. There is also additional storage above the cab area in front.
Just inside the door to the left you will find a kitchen that allows you to prepare and cook meals easily while you travel. There is a double sink for easy cleanup, a Euro style two burner cook-top with cover, plus microwave oven, and overhead storage for dishes and things. There is also a TV cabinet up above near the door. Take a step up to the pantry and refrigerator on your left.
On the opposite side there is a complete bath with shower, linen cabinet, toilet and vanity with sink. There is also a medicine cabinet. You will also find a wardrobe just beyond the bathroom for storing all of your clothes.
The rear queen bed slide with nightstands provides a comfy nights sleep, and the slide allows you more space to move around easily, and so much more!
MSRP
$103,668
MSRP + Destination
$103,668
Currency
US Dollars
Basic Warranty
12 Months
Basic Warranty
12,000 Miles
Structure Warranty
12 Months
Structure Warranty
12,000 Miles
Roof Warranty (Years)
10
Chassis Warranty
36 Months
Chassis Warranty
36,000 Miles
Powertrain Warranty
60 Months
Powertrain Warranty
100,000 Miles
Engine Brand Name
Mercedes-Benz
Chassis Brand
Mercedes-Benz Sprinter
Engine Type
V6
Chassis Model
3500
Cylinders
6
Horsepower (bhp)
188
Horsepower (kW)
140.3
Horsepower RPM
3800
Torque (Ft Lbs)
325
Torque (Nm)
440.6
Torque RPM
1400
Displacement (l)
3
Fuel Type
Diesel
Fuel Requirements
Regular
Carburetion Type
Fuel Injected
Turbocharged
Yes
Supercharged
No
Transmission Type
Automatic
Number Of Speeds
5
Overdrive
Yes
Driveline Type
4X2
Length (ft)
24.83
Length (in)
298
Length (ft/ft)
24
Length (ft/in)
10
Length (m)
7.6
Length (mm)
7600
Width (in)
91
Width (mm)
2311.4
Height (in)
124
Height (mm)
3149.6
Interior Height (in)
79
Interior Height (mm)
2006.6
Wheelbase (in)
170
Wheelbase (mm)
4318
Dry Weight (lbs)
9305
Dry Weight (kg)
4220.7
Payload Capacity (lbs)
1725
Payload Capacity (kgs)
782.5
Towing Capacity (lbs)
3500
Towing Capacity (kgs)
1587.6
GVWR (lbs)
11030
GVWR (kgs)
5003.2
Hitch Weight (lbs)
3500
Hitch Weight (kgs)
1587.6
Fuel Capacity (gal)
26
Fuel Capacity (l)
98.4
Storage Capacity (cuft)
41
Storage Capacity (gal)
263.6
Storage Capacity (l)
1161
Number Of Fresh Water Holding Tanks
1
Total Fresh Water Tank Capacity (gal)
30
Total Fresh Water Tank Capacity (l)
113.6
Number Of Gray Water Holding Tanks
1
Total Gray Water Tank Capacity (gal)
29
Total Gray Water Tank Capacity (l)
109.8
Number Of Black Water Holding Tanks
1
Total Black Water Tank Capacity (gal)
28
Total Black Water Tank Capacity (l)
106
Number Of Propane Tanks
1
Total Propane Tank Capacity (gal)
20
Total Propane Tank Capacity (lbs)
85
Body Material
Aluminum
Sidewall Construction
Fiberglass
Number of Doors
1
Sliding Glass Door
No
Number of Slideouts
1
Power Retractable Slideout
Yes
Expandable Bunk Material
Hard Shell
Number of Awnings
1
Awning Length (ft)
15
Awning Length (m)
4.6
Power Retractable Awning
Yes
Screened Room
No
Leveling Jack Type
Rear Manual
Kitchen / Living Area Flooring Type
Vinyl
Kitchen Table Configuration
Pedestal Table
Kitchen Location
Center
Living Area Location
Front
Layout
Stove
Number Of Oven Burners
2
Overhead Fan
Yes
Refrigerator Size
Mid-Size
Refrigerator Power Mode
Electric / Propane
Number Of Sofas
1
Sofa Material
Cloth
Number Of Recliner / Rockers
0
Max Sleeping Count
4
Number Of Bunk Beds
0
Number Of Double Beds
0
Number Of Full Size Beds
0
Number Of Queen Size Beds
1
Number Of King Size Beds
0
Number Of Convertible / Sofa Beds
1
Master Bedroom Flooring Type
Vinyl
Master Bedroom Door Style
Curtain
Full Size Master Bedroom Closet
No
Master Bedroom Mirror Doors
No
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Rear
Bunkhouse
No
Number Of Bathrooms
1
Bathroom Flooring Type
Vinyl
Bathroom Location
Center
Toilet Type
Porcelain
Toilet Location
Center
Door Type
Curtain
Shower Location
Center
Bathroom Sink Location
Center
Bathroom Medicine Cabinet Location
Center
Bathroom Mirror Location
Center
Bathroom Vent / Fan System Location
Center
Wheels Composition
Steel
Number Of Axles
1
Front Tire Width
215
Front Tire Aspect Ratio
85
Front Wheel Diameter
16
Rear Tire Width
215
Rear Tire Aspect Ratio
85
Rear Wheel Diameter
16
Front Tire (Full Spec)
215/85 R16
Rear Tire (Full Spec)
215/85 R16
Spare Tire Location
Exterior Mounted
Front Brake Type
Hydraulic Disc
Rear Brake Type
Hydraulic Disc
Rear Hitch Type
Receiver
Seat Type
Bucket
Seat Material
Leather
Power Adjustable Seat
No
Reclining Seats
Yes
Swivel Seats
Yes
Seat Armrests
Yes
Number Of Seats
2
Number Of Rows
1
Battery Power Converter
Yes
Battery Converter Amps
55
Air Conditioning Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
No
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
Yes
Washer / Dryer Prewiring
No
Air Conditioning Type
Automatic
Air Conditioning (BTUs)
13,500
Heater Type
Automatic
Heater (BTUs)
20,000
Water Heater Tank Capacity (g)
6
Water Heater Tank Capacity (l)
22.7
Water Heater Pump Power Mode
Propane
Water Heater Tank Bypass
Yes
Number Of Emergency Exits
1
Number Of Radios
1
Satellite
Yes
Speaker Location(s)
Interior / Exterior
Surround Sound
No
Number Of Discs
1
Number Of Televisions
2
Primary Color
Tan
Secondary Color
Red
Metallic
No
Paint Swatch File Name
Coachmen/Red_Cobalt_Full_Paint.gif
Wallpaper
Yes
Interior Wood Finish
Yes
