American Coach American Dream Class A diesel motorhome 45A highlights:

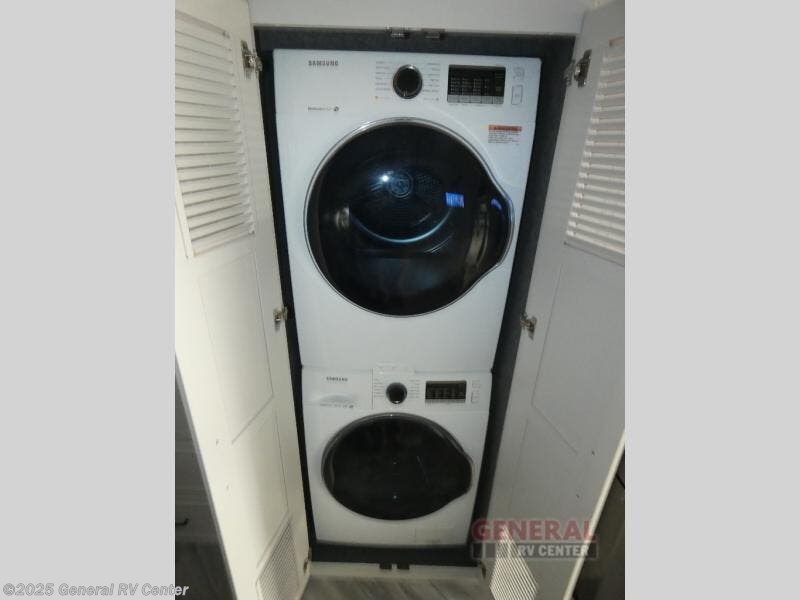

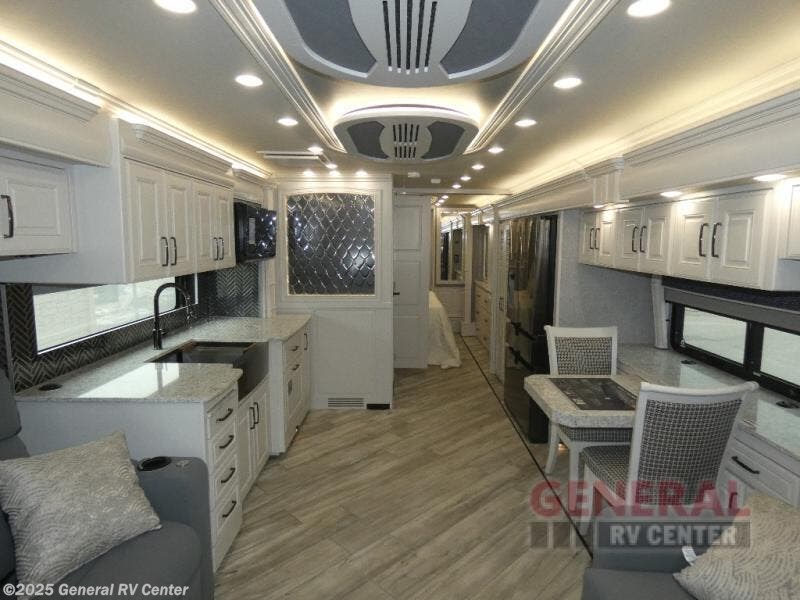

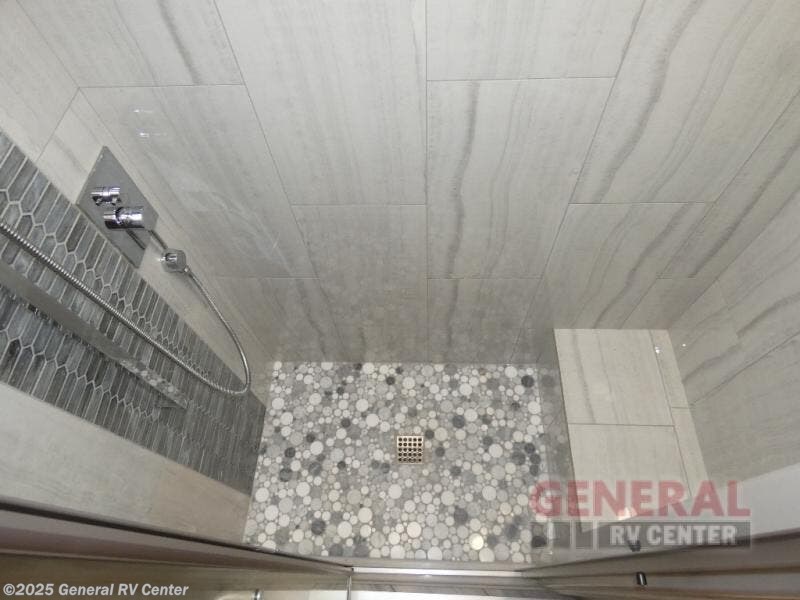

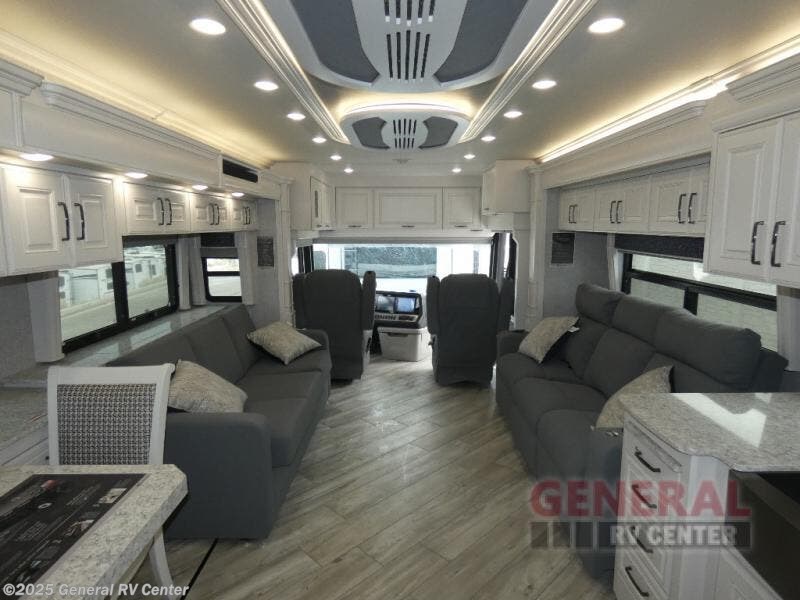

You won't want to travel any other way once you step inside this motorhome! The 80" loveseat and 90" sofa with queen mattress offers comfortable places to relax after a long day on the road. Grab a snack from the kitchen pantry, a cold beverage from the residential four door refrigerator with ice maker, and play some card games at the dining table and chairs. The galley pull-out counter will make meal prepping easier too. Across from the half bathroom is a stackable Samsung washer and dryer to keep your clothes clean throughout the entire trip. The full rear bathroom has a 30" x 55" shower with a seat to clean up in and a wardrobe to keep your towels close!

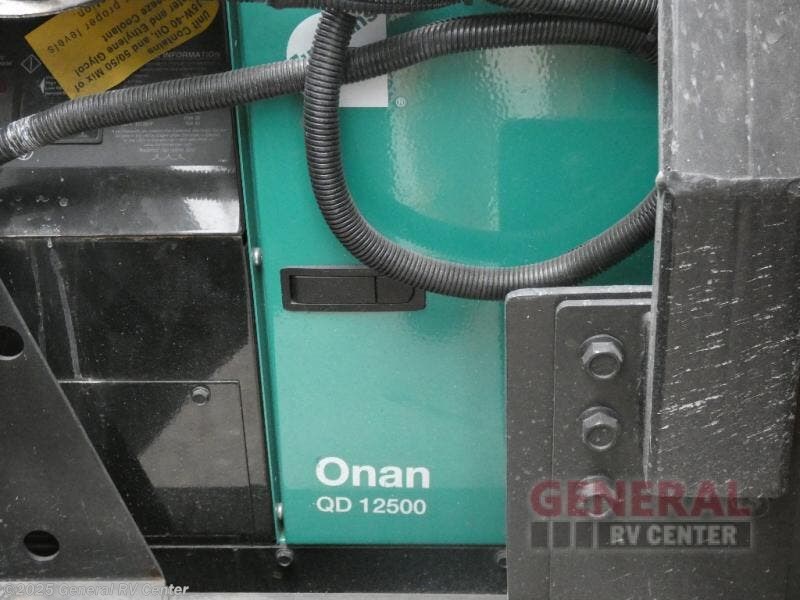

Hit the road with confidence in any one of these American Coach American Dream Class A diesel motorhomes with their Cummins ISX turbocharged 450 or 605 HP engine! You will travel stress free thanks to the RoadWatch safety system that comes with collision mitigation, adaptive cruise, and electronic stability, automatic traction, and roll stability control. You can even bring along your off-road toys with the 15,000/20,000 towing capacity. A few other features that are sure to catch your attention are the aerodynamic fiberglass cap with automotive-style LED headlighting, an exterior entertainment center, and a 12.5kw Onan quiet diesel generator.
MSRP
$817,947
MSRP + Destination
$817,947
Currency
US Dollars
Basic Warranty
24 Months
Basic Warranty
24,000 Miles
Structure Warranty
60 Months
Structure Warranty
50,000 Miles
Chassis Warranty
36 Months
Chassis Warranty
50,000 Miles
Powertrain Warranty
36 Months
Powertrain Warranty
50,000 Miles
Engine Brand Name
Cummins
Chassis Brand
Freightliner
Engine Type
I6 Diesel Pusher
Chassis Model
Liberty
Cylinders
6
Horsepower (bhp)
605
Horsepower (kW)
451.5
Horsepower RPM
1800
Torque (Ft Lbs)
1950
Torque (Nm)
2643.8
Torque RPM
1200
Displacement (l)
15
Fuel Type
Diesel
Fuel Requirements
Regular
Carburetion Type
Fuel Injected
Turbocharged
Yes
Supercharged
No
Transmission Brand
Allison
Transmission Type
Automatic
Number Of Speeds
6
Overdrive
Yes
Driveline Type
4X2
Length (ft)
44.96
Length (in)
539.5
Length (ft/ft)
44
Length (ft/in)
11.5
Length (m)
13.7
Length (mm)
13700
Width (in)
102
Width (mm)
2590.8
Height (in)
157
Height (mm)
3987.8
Interior Height (in)
84
Interior Height (mm)
2133.6
Wheelbase (in)
324
Wheelbase (mm)
8229.6
Towing Capacity (lbs)
20000
Towing Capacity (kgs)
9072
GVWR (lbs)
51000
GVWR (kgs)
23133.6
Fuel Capacity (gal)
150
Fuel Capacity (l)
567.8
Storage Capacity (cuft)
353
Storage Capacity (gal)
2269.3
Storage Capacity (l)
9995.5
Number Of Fresh Water Holding Tanks
1
Total Fresh Water Tank Capacity (gal)
105
Total Fresh Water Tank Capacity (l)
397.5
Number Of Gray Water Holding Tanks
1
Total Gray Water Tank Capacity (gal)
75
Total Gray Water Tank Capacity (l)
283.9
Number Of Black Water Holding Tanks
1
Total Black Water Tank Capacity (gal)
50
Total Black Water Tank Capacity (l)
189.3
Body Material
Aluminum
Sidewall Construction
Fiberglass
Number of Doors
1
Sliding Glass Door
No
Number of Slideouts
3
Power Retractable Slideout
Yes
Number of Awnings
1
Awning Length (ft)
18
Awning Length (m)
5.5
Power Retractable Awning
Yes
Screened Room
No
Leveling Jack Type
Front Power / Rear Power
Kitchen / Living Area Flooring Type
Tile
Kitchen Table Configuration
Chairs
Kitchen Location
Center
Living Area Location
Front
Layout
Oven / Stove
Number Of Oven Burners
2
Overhead Fan
Yes
Convection
Yes
Refrigerator Size
Full-Size
Refrigerator Power Mode
Electric
Number Of Sofas
2
Sofa Material
Leather
Reclining Sofa
No
Number Of Recliner / Rockers
1
Material
Leather
Max Sleeping Count
6
Number Of Bunk Beds
0
Number Of Double Beds
0
Number Of Full Size Beds
0
Number Of Queen Size Beds
0
Number Of King Size Beds
1
Number Of Convertible / Sofa Beds
2
Master Bedroom Flooring Type
Tile
Master Bedroom Door Style
Full Sliding Door
Full Size Master Bedroom Closet
Yes
Master Bedroom Mirror Doors
Yes
Master Bedroom Shades / Curtains
Yes
Master Bedroom Location
Center
Bunkhouse
No
Number Of Bathrooms
2
Bathroom Flooring Type
Tile
Bathroom Location
Rear / Center
Toilet Type
Porcelain
Toilet Location
Rear / Center
Door Type
Plastic / Glass
Shower Location
Rear
Bathroom Sink Location
Rear / Center
Bathroom Medicine Cabinet Location
Rear / Center
Bathroom Mirror Location
Rear / Center
Bathroom Vent / Fan System Location
Rear / Center
Wheels Composition
Aluminum
Front Wheel Width (in)
9
Rear Wheel Width (in)
9
Number Of Axles
2
Tire Brand
Michelin
Front Tire Width
315
Front Tire Aspect Ratio
80
Front Wheel Diameter
22.5
Rear Tire Width
315
Rear Tire Aspect Ratio
80
Rear Wheel Diameter
22.5
Front Tire (Full Spec)
Michelin XZA2 Energy 315/80R 22.5
Rear Tire (Full Spec)
Michelin 315/80R 22.5
Front Brake Type
Hydraulic Disc
Rear Brake Type
Hydraulic Disc
Rear Hitch Type
Receiver
Size (in)
2.5
Size (cm)
6.3
Tongue Weight (lbs)
2000
Tongue Weight (kgs)
907.2
Seat Type
Bucket
Seat Material
Leather
Power Adjustable Seat
Yes
Reclining Seats
Yes
Swivel Seats
Yes
Seat Armrests
Yes
Number Of Seats
2
Number Of Rows
1
Battery Power Converter
Yes
Battery Converter Amps
125
Air Conditioning Prewiring
Yes
Cable Prewiring
Yes
Phone Prewiring
No
Heat Prewiring
Yes
TV Antenna Prewiring
Yes
Satellite Prewiring
Yes
Washer / Dryer Prewiring
Yes
Solar
Yes
Back-Up Camera
Yes
Air Conditioning Type
Automatic
Air Conditioning (BTUs)
45,000
Heater Type
Automatic
Water Heater Tank Capacity (g)
0
Water Heater Tank Capacity (l)
0
Water Heater Pump Power Mode
Electrical / Diesel
Water Heater Tank Bypass
Yes
Tankless Water Heater
Yes
Number Of Emergency Exits
1
Brand Name
JBL
Number Of Radios
2
Satellite
Yes
Speaker Location(s)
Interior / Exterior
Surround Sound
Yes
Number Of Discs
1
Number Of Televisions
3
Primary Color
Tan
Secondary Color
Maroon
Paint Swatch File Name
American Coach/Falling_Ash_Exterior_Color.gif
Wallpaper
Yes
Interior Wood Finish
Yes
Bluetooth Audio
Yes
Wi-Fi Capable
Yes
Mobile App Instrumentation
Yes
