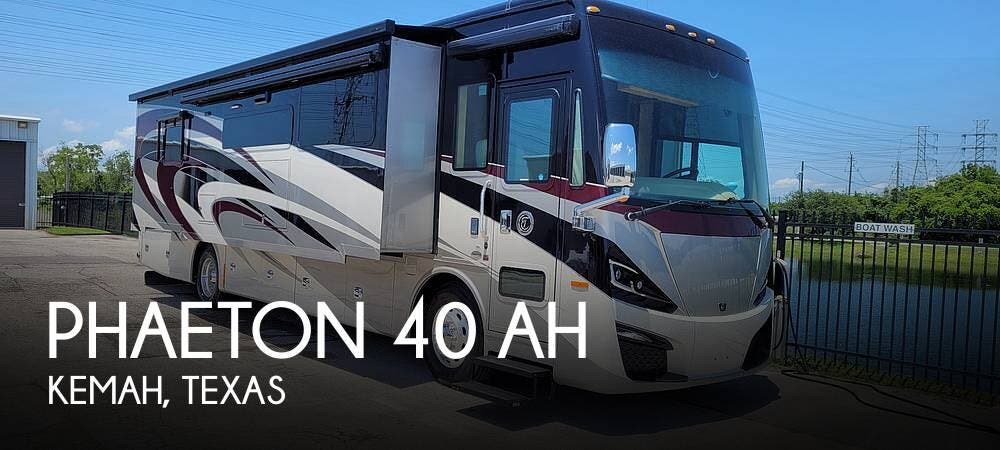

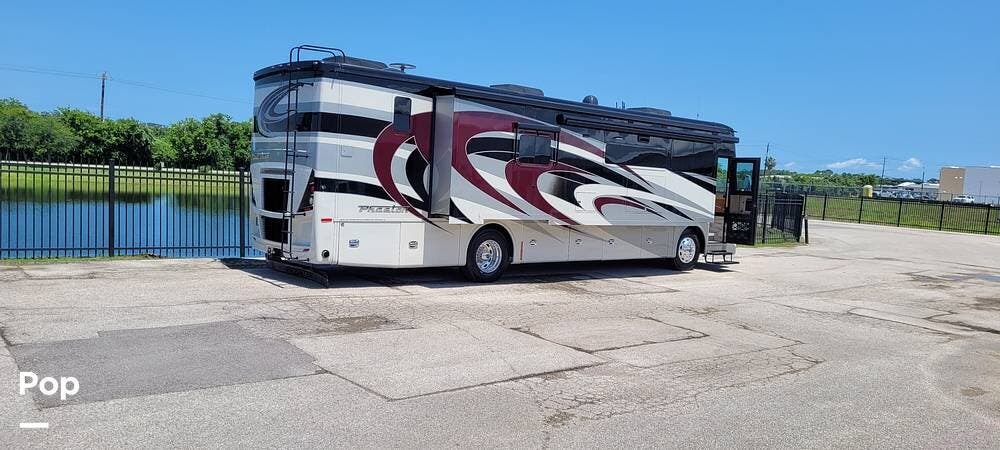

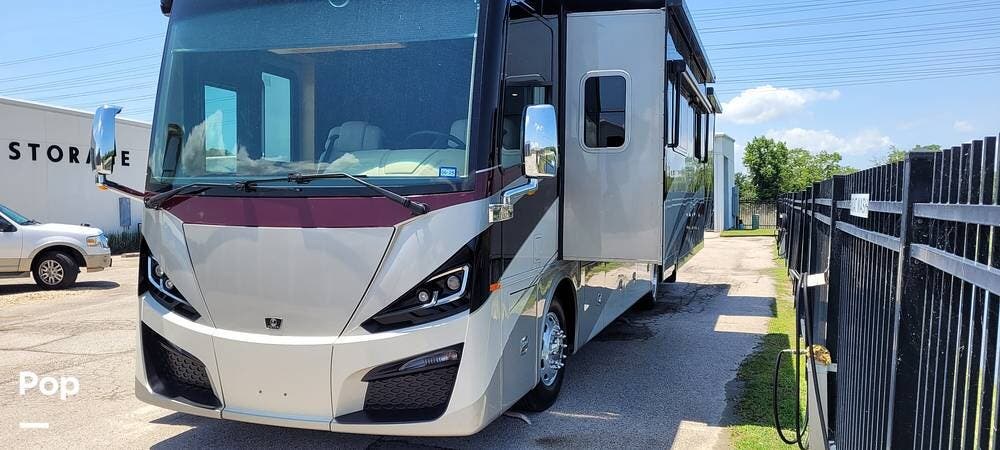

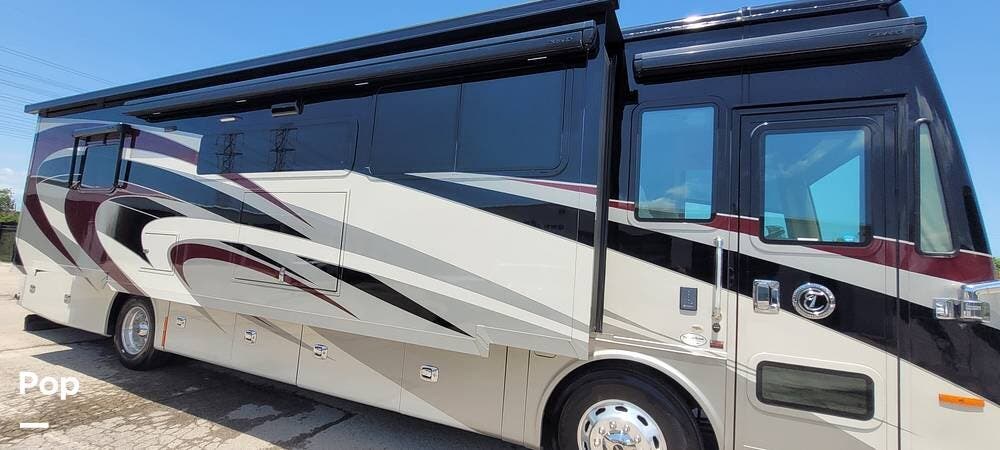

2020 Tiffin Phaeton 40 AH

MSRP

TBA

MSRP + Destination

TBA

Currency

US Dollars

Basic Warranty

12 Months

Basic Warranty

12,000 Miles

Structure Warranty

120 Months

Roof Warranty (Years)

10

Chassis Warranty

36 Months

Chassis Warranty

50,000 Miles

Powertrain Warranty

36 Months

Powertrain Warranty

50,000 Miles

Engine Brand Name

Cummins

Chassis Brand

Freightliner

Engine Type

I6 Diesel Pusher

Chassis Model

XC-Series

Cylinders

6

Horsepower (bhp)

380

Horsepower (kW)

283.6

Horsepower RPM

2000

Torque (Ft Lbs)

1150

Torque (Nm)

1559.2

Torque RPM

1400

Displacement (l)

8.9

Fuel Type

Diesel

Fuel Requirements

Regular

Carburetion Type

Fuel Injected

Turbocharged

Yes

Supercharged

No

Transmission Brand

Allison

Transmission Type

Automatic

Number Of Speeds

6

Overdrive

Yes

Driveline Type

4X2

Length (ft)

41.33

Length (in)

496

Length (ft/ft)

41

Length (ft/in)

4

Length (m)

12.6

Length (mm)

12600

Width (in)

101

Width (mm)

2565.4

Height (in)

151

Height (mm)

3835.4

Interior Height (in)

83

Interior Height (mm)

2108.2

Wheelbase (in)

266

Wheelbase (mm)

6756.4

Towing Capacity (lbs)

10000

Towing Capacity (kgs)

4536

GVWR (lbs)

38320

GVWR (kgs)

17382

Fuel Capacity (gal)

100

Fuel Capacity (l)

378.5

Storage Capacity (cuft)

157

Storage Capacity (gal)

1009.3

Storage Capacity (l)

4445.6

Number Of Fresh Water Holding Tanks

1

Total Fresh Water Tank Capacity (gal)

90

Total Fresh Water Tank Capacity (l)

340.7

Number Of Gray Water Holding Tanks

1

Total Gray Water Tank Capacity (gal)

66

Total Gray Water Tank Capacity (l)

249.8

Number Of Black Water Holding Tanks

1

Total Black Water Tank Capacity (gal)

50

Total Black Water Tank Capacity (l)

189.3

Number Of Propane Tanks

1

Total Propane Tank Capacity (gal)

35.7

Total Propane Tank Capacity (lbs)

151.4

Body Material

Aluminum

Sidewall Construction

Fiberglass

Number of Doors

1

Sliding Glass Door

No

Number of Slideouts

4

Power Retractable Slideout

Yes

Number of Awnings

1

Power Retractable Awning

Yes

Screened Room

No

Leveling Jack Type

Front Power / Rear Power

Kitchen / Living Area Flooring Type

Carpet / Tile

Kitchen Table Configuration

Bench Seats

Kitchen Location

Center

Living Area Location

Front

Layout

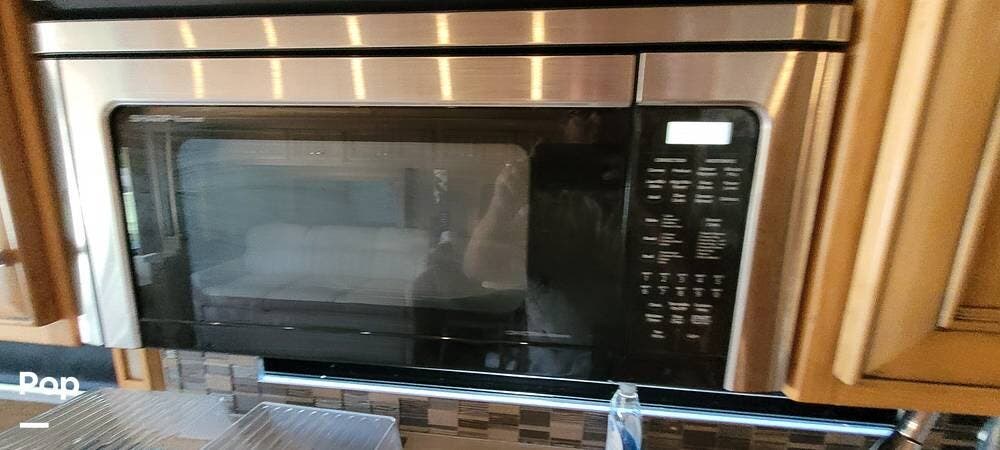

Oven / Stove

Number Of Oven Burners

3

Overhead Fan

Yes

Refrigerator Size

Full-Size

Refrigerator Power Mode

Electric

Number Of Sofas

1

Sofa Material

Leather

Number Of Recliner / Rockers

1

Material

Leather

Max Sleeping Count

6

Number Of Bunk Beds

0

Number Of Double Beds

0

Number Of Full Size Beds

0

Number Of Queen Size Beds

1

Number Of King Size Beds

1

Number Of Convertible / Sofa Beds

2

Master Bedroom Flooring Type

Tile

Master Bedroom Door Style

Full Sliding Door

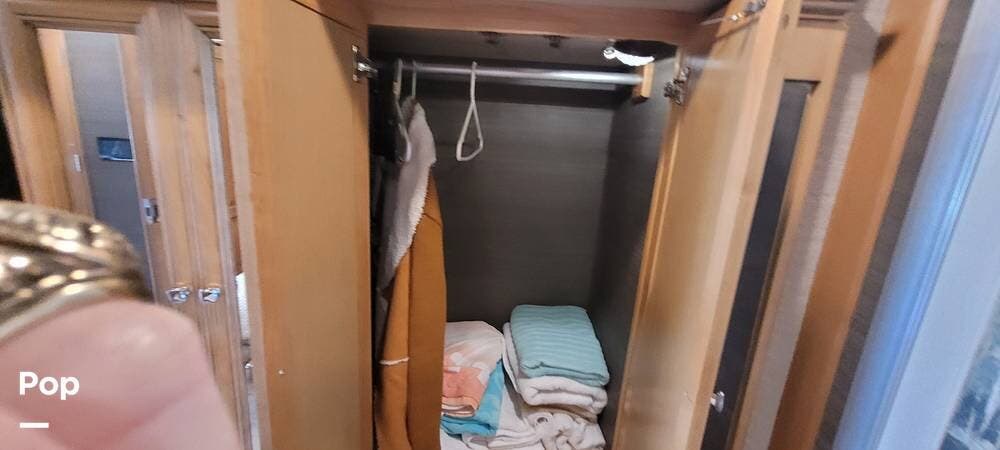

Full Size Master Bedroom Closet

Yes

Master Bedroom Mirror Doors

Yes

Master Bedroom Shades / Curtains

Yes

Master Bedroom Location

Center

Bunkhouse

No

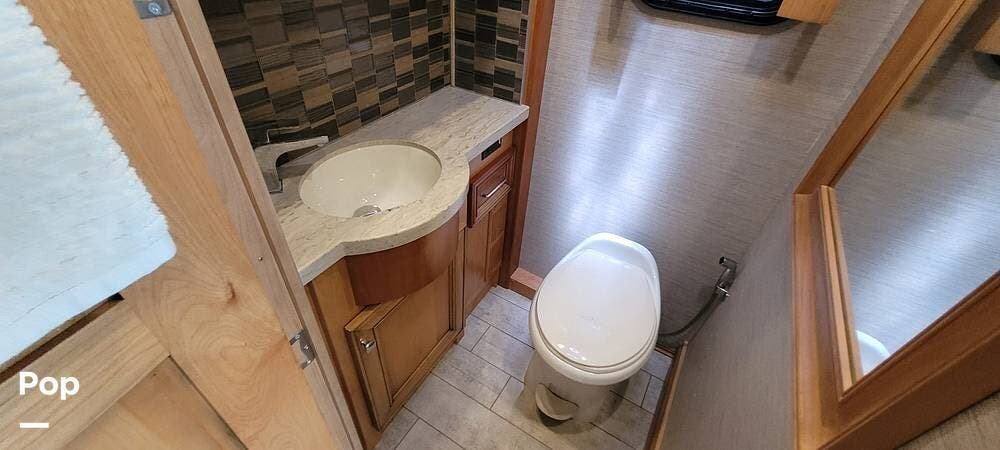

Number Of Bathrooms

1

Bathroom Flooring Type

Tile

Bathroom Location

Center

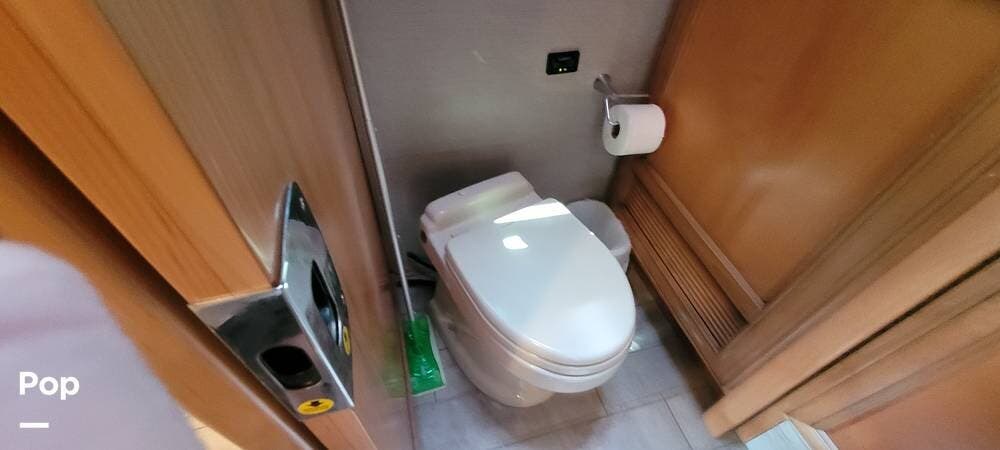

Toilet Type

Porcelain

Toilet Location

Center

Door Type

Plastic / Glass

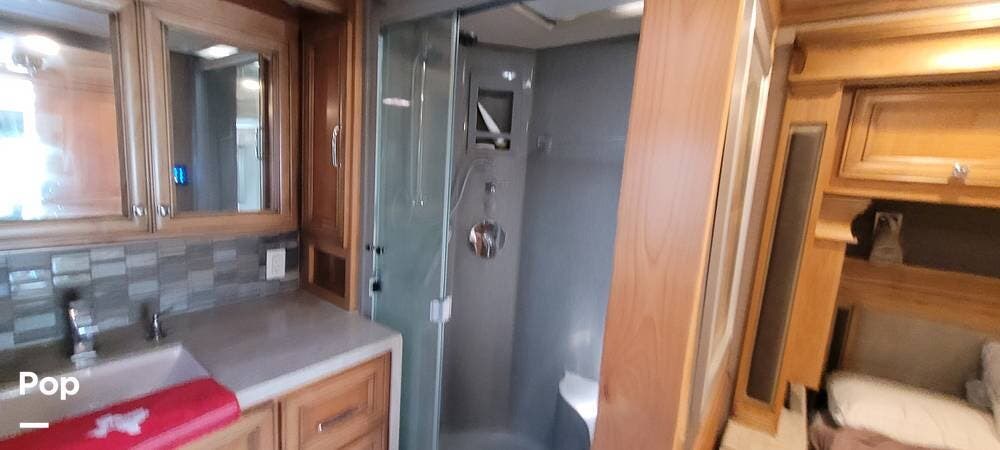

Shower Location

Center

Bathroom Sink Location

Center

Bathroom Medicine Cabinet Location

Center

Bathroom Mirror Location

Center

Bathroom Vent / Fan System Location

Center

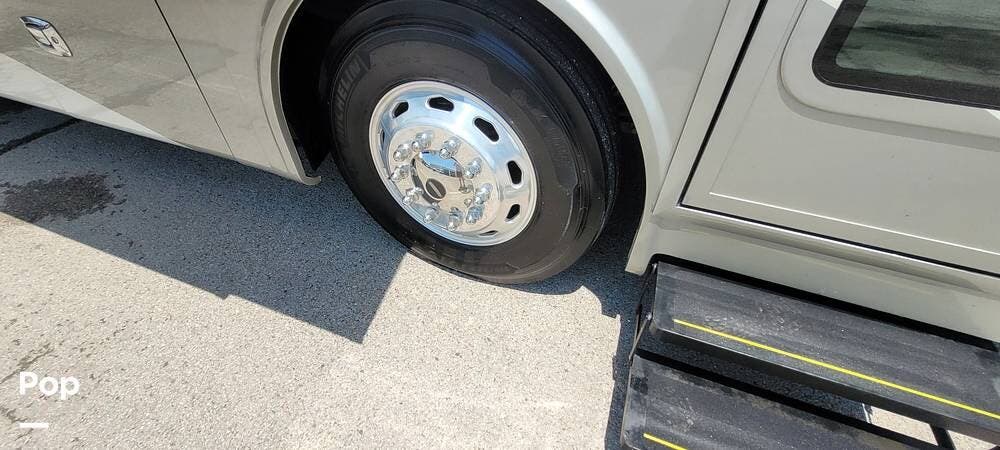

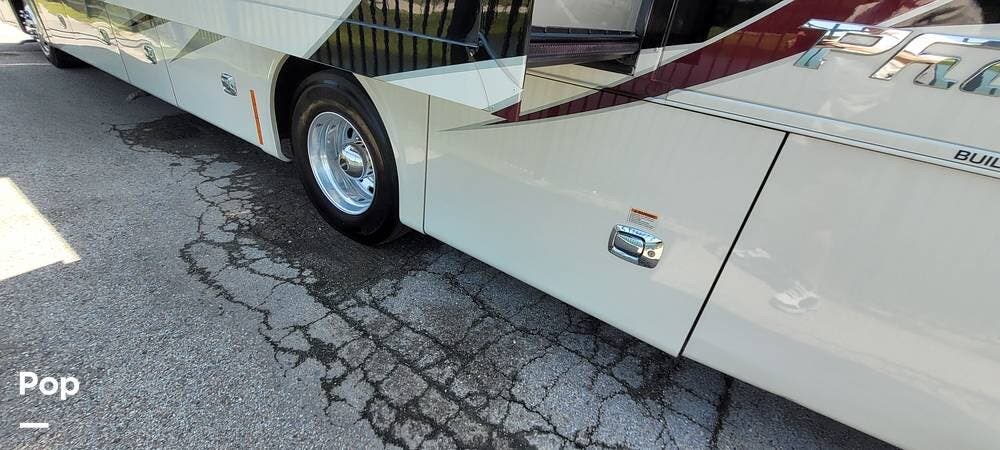

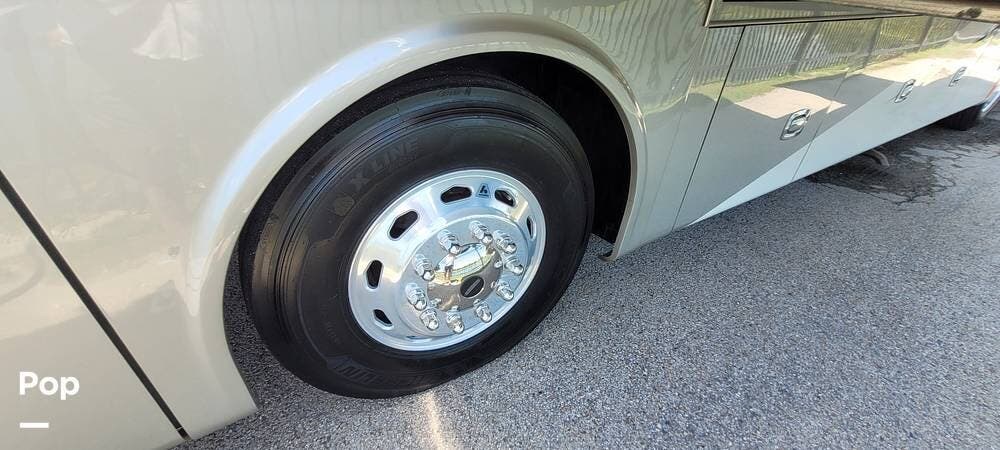

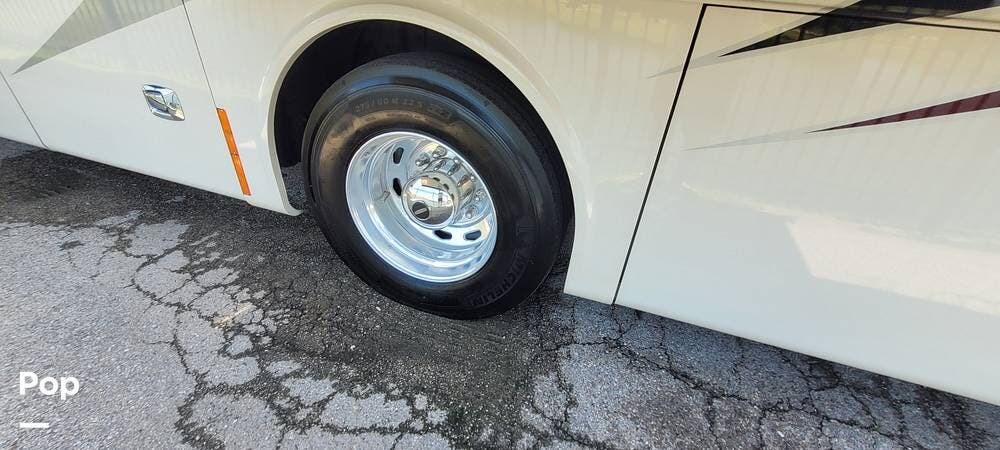

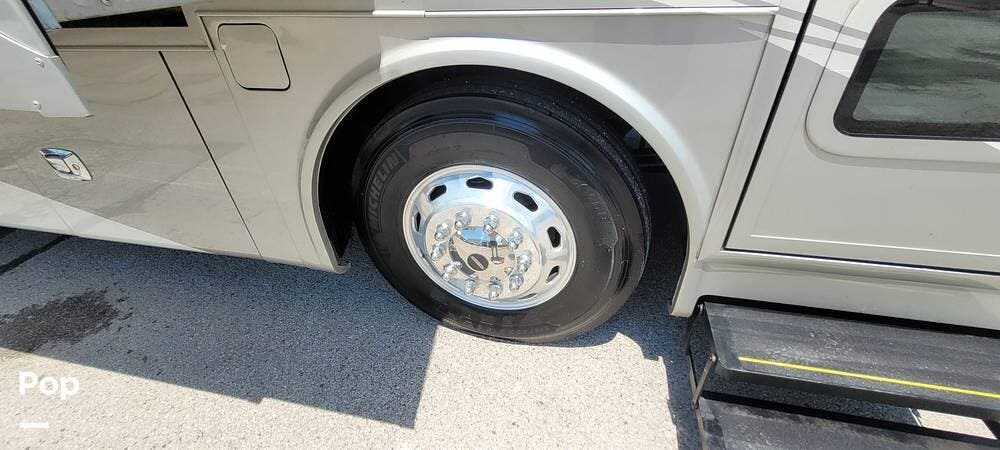

Wheels Composition

Aluminum

Front Wheel Width (in)

8.25

Rear Wheel Width (in)

8.25

Number Of Axles

1

Tire Brand

Michelin

Front Tire Width

275

Front Tire Aspect Ratio

80

Front Wheel Diameter

22.5

Rear Tire Width

275

Rear Tire Aspect Ratio

80

Rear Wheel Diameter

22.5

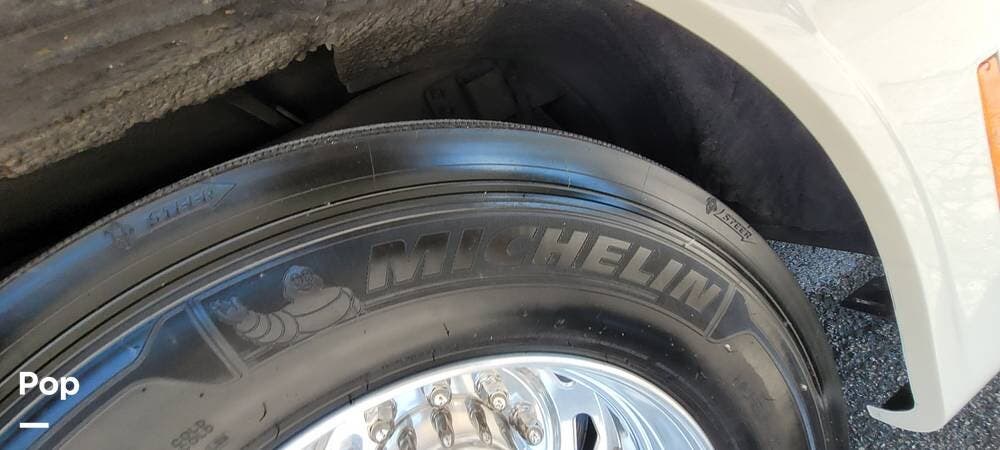

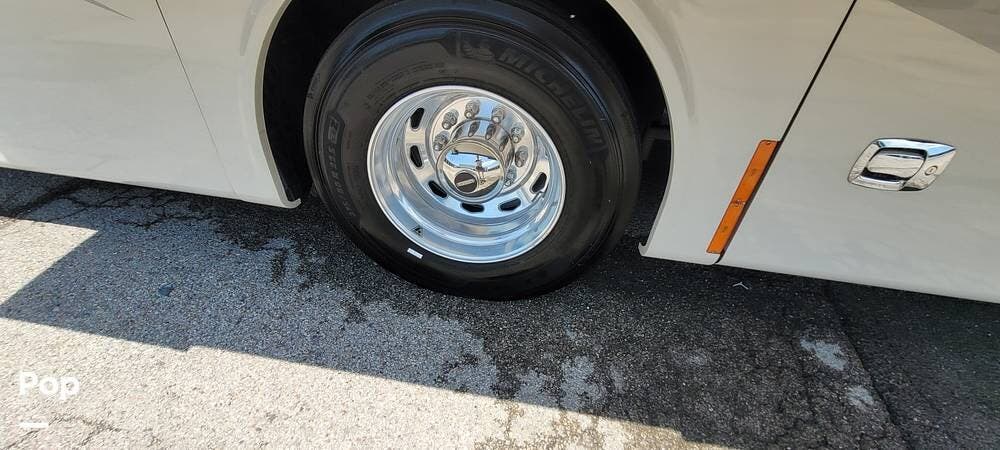

Front Tire (Full Spec)

Michelin 275/80R 22.5

Rear Tire (Full Spec)

Michelin 275/80R 22.5

Front Brake Type

Hydraulic Disc

Rear Brake Type

Hydraulic Drum

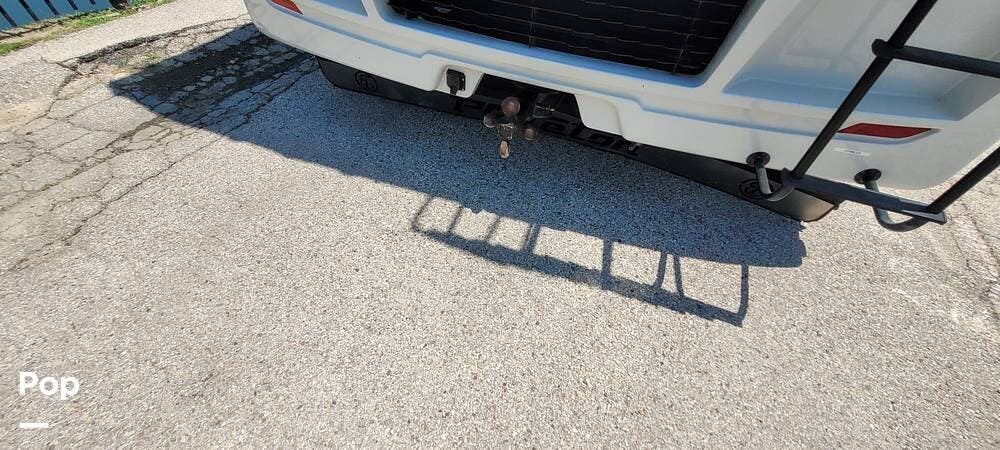

Rear Hitch Type

Receiver

Size (in)

2.5

Size (cm)

6.4

Tongue Weight (lbs)

1000

Tongue Weight (kgs)

453.6

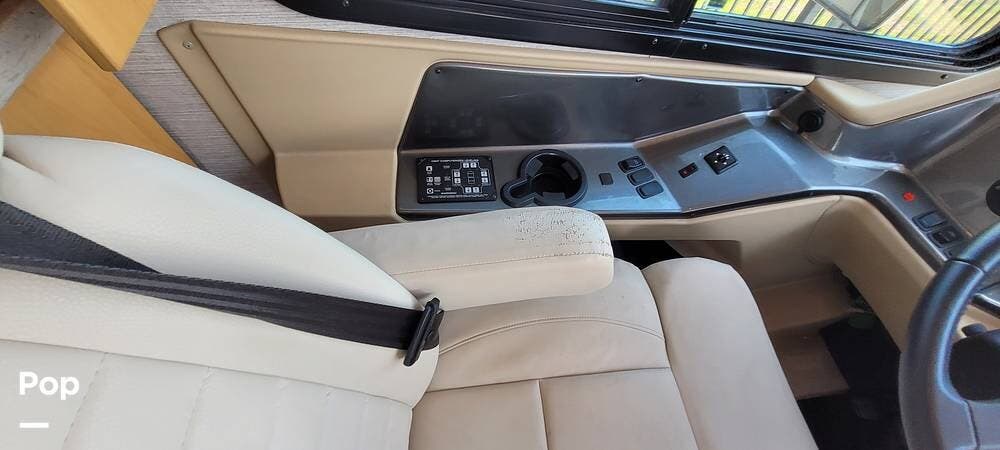

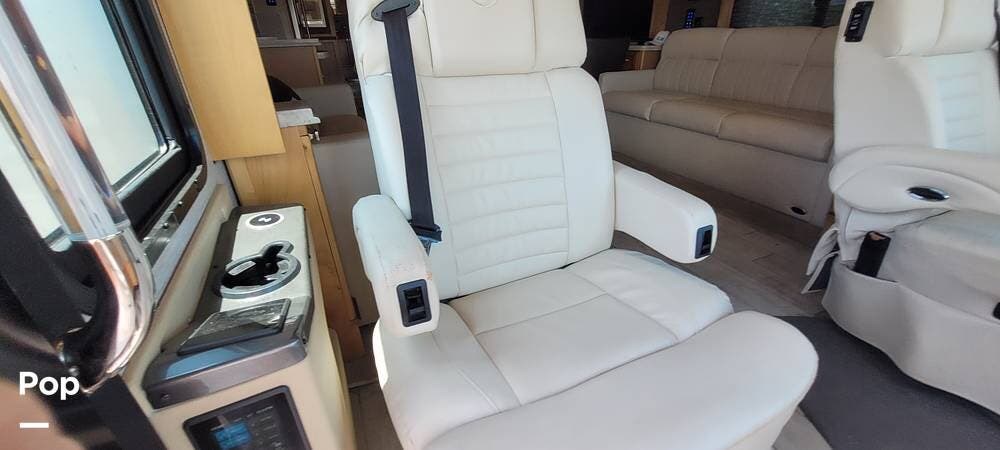

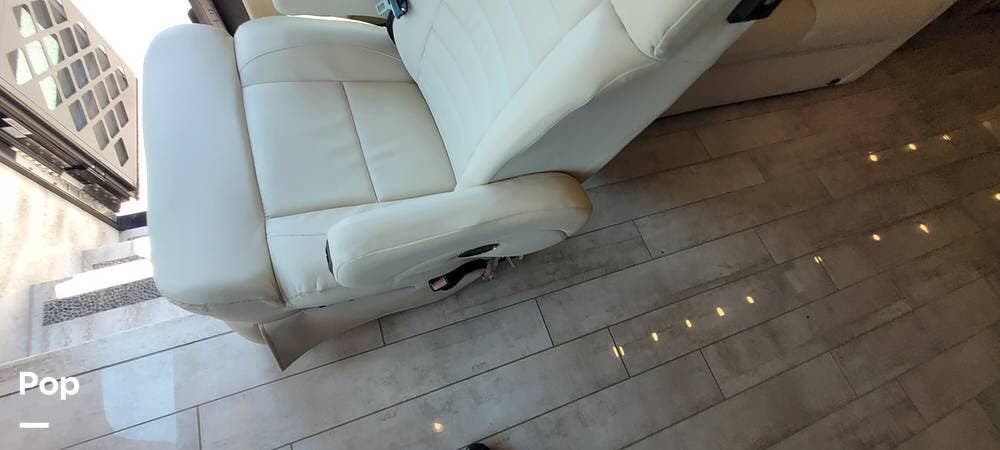

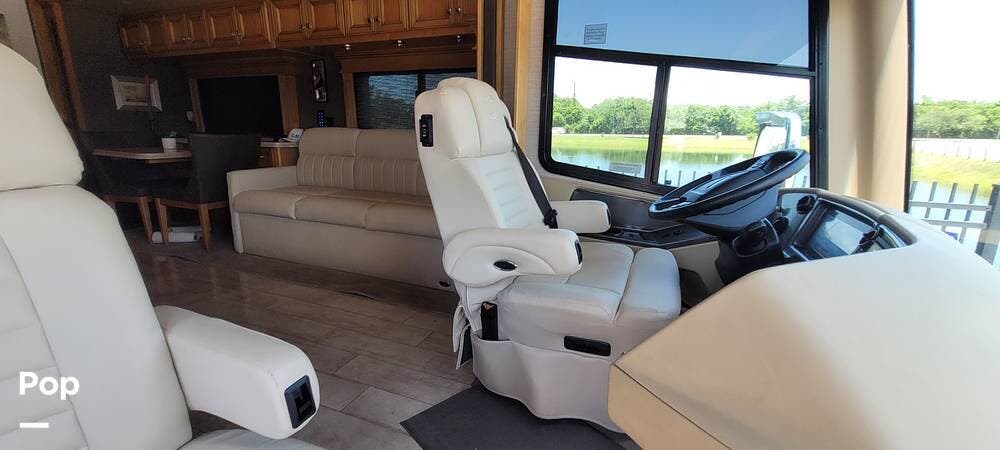

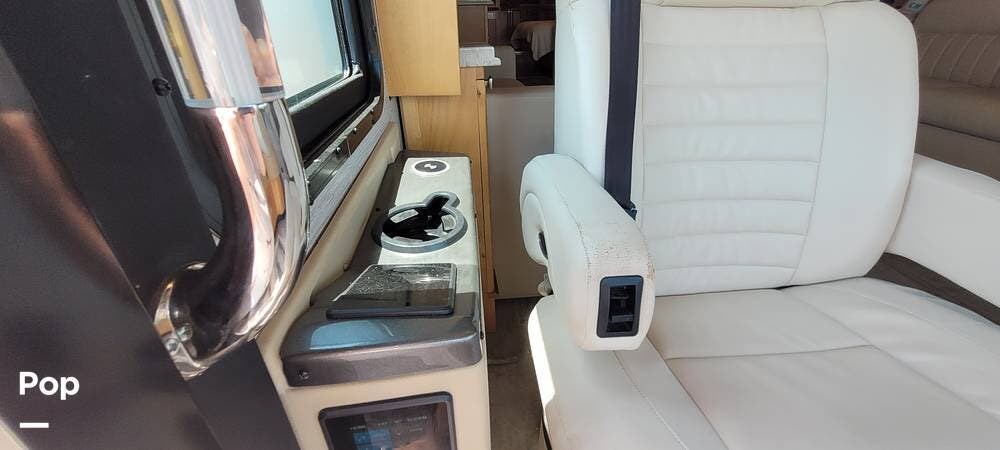

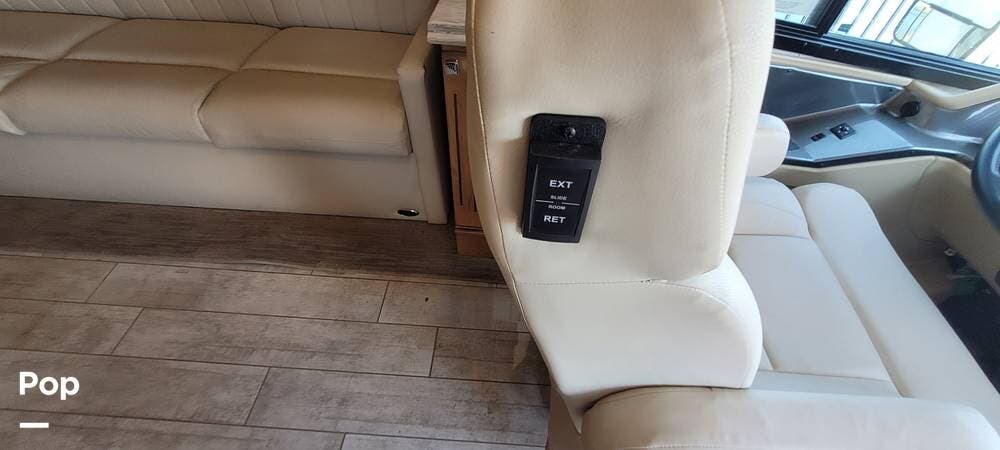

Seat Type

Bucket

Seat Material

Leather

Power Adjustable Seat

Yes

Reclining Seats

Yes

Swivel Seats

Yes

Seat Armrests

Yes

Number Of Seats

2

Number Of Rows

1

Battery Power Converter

Yes

Battery Converter Amps

100

Air Conditioning Prewiring

Yes

Cable Prewiring

Yes

Heat Prewiring

Yes

TV Antenna Prewiring

Yes

Satellite Prewiring

Yes

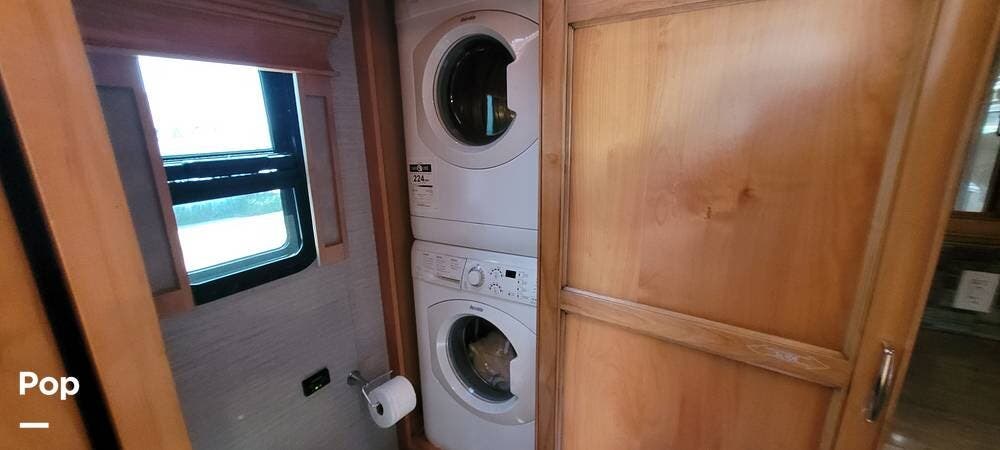

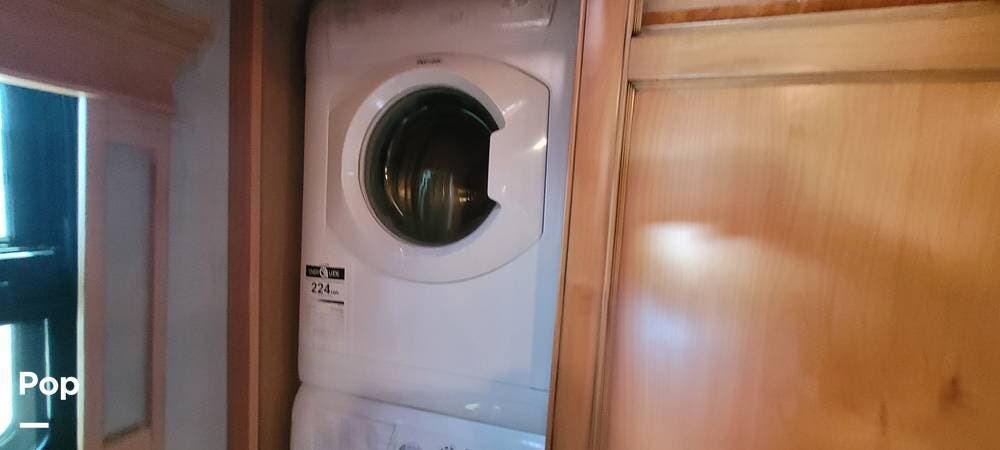

Washer / Dryer Prewiring

Yes

Air Conditioning Type

Automatic

Air Conditioning (BTUs)

45,000

Heater Type

Automatic

Water Heater Pump Power Mode

Propane

Water Heater Tank Bypass

Yes

Number Of Radios

1

Satellite

Yes

Speaker Location(s)

Interior

Surround Sound

Yes

Number Of Discs

1

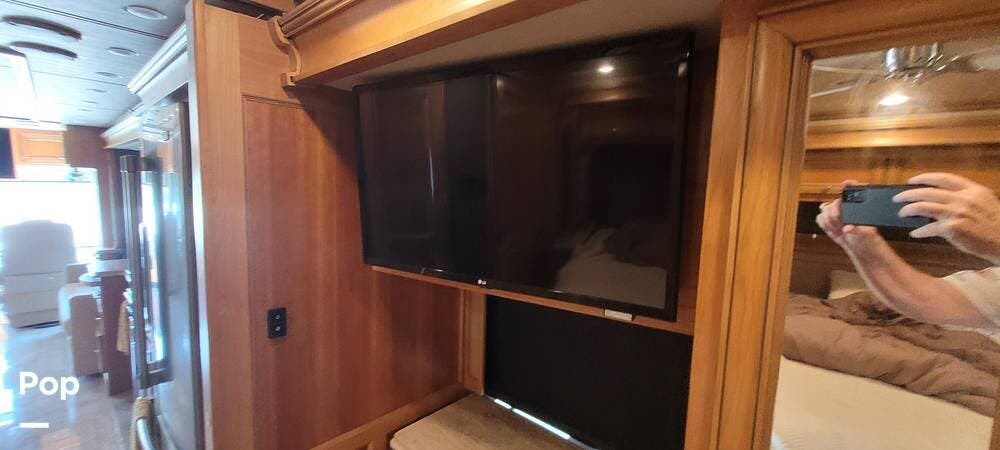

Number Of Televisions

4

Primary Color

Black

Secondary Color

Blue

Paint Swatch File Name

Tiffin Motorhomes/G9_Euro_Blue_Exterior_Color.gif

Wallpaper

Yes

Interior Wood Finish

Yes

Available In Various Styles

Yes

Heated

No
